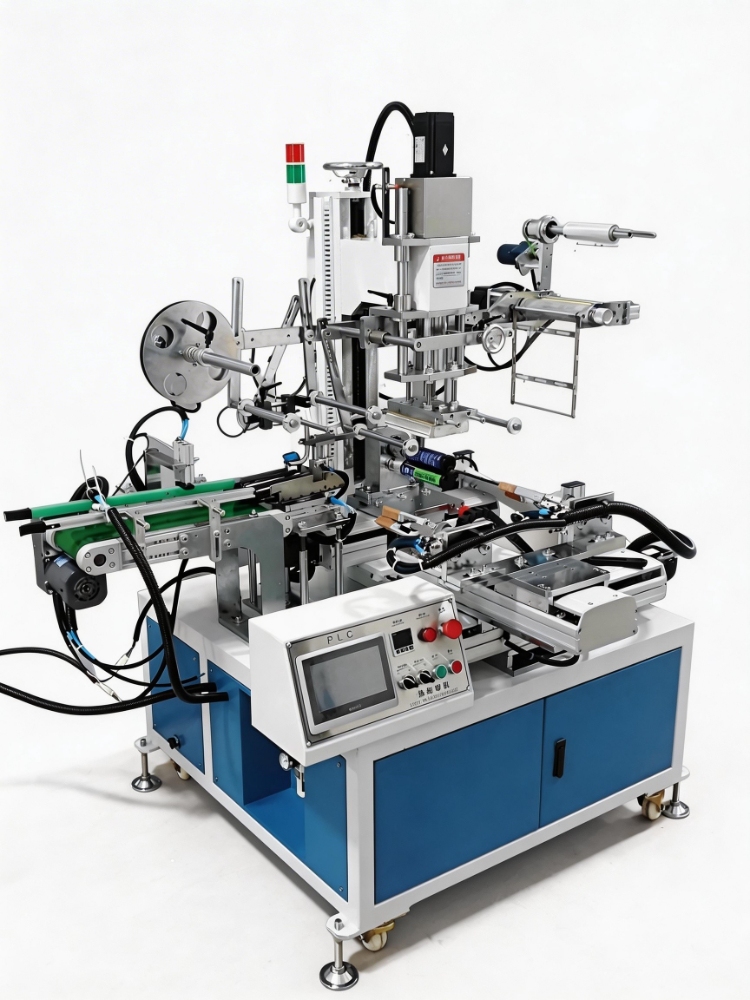

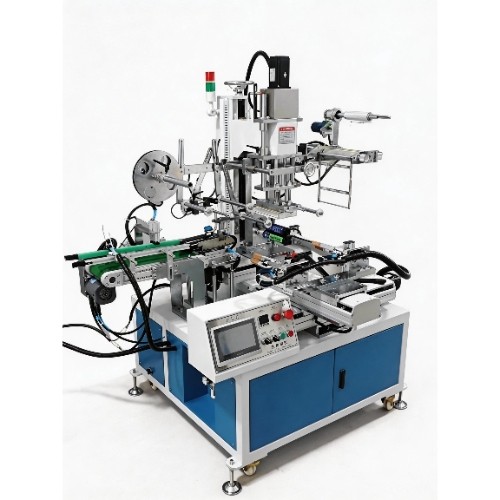

Automatic Conjoined Caulk Tube Heat Transfer Machine

Model Number: EASY-FADC
Product price: US$:negotiated
Category: Products
Views: 9

Product Description：

PRODUCT DETAIL

Product name:Automatic Conjoined Caulk Tube Heat Transfer Machine

Model Number: EASY-FADC

Specification:
1. Machine Name: Automatic Conjoined Caulk Tube Heat Transfer Machine
2. Model: EASY-FADC
3. Max. Printing Area: 114*160MM
4. Max. Processing: 38mm
5. Control System: PLC + HMI;
6. Special Features: Three-axis servo linkage for pressure application, automatic reversing for double-tube switching, unmanned one-step forming.
7. Typical Applications: Direct connection with injection molding machines, multi-machine linkage available, an unmanned production line specially built for beauty seam agent factories.
8. Power Supply/Total: 220V / 50Hz / 4500W
9. Air Pressure: 0.4 – 0.6 MPa

10. Dimensions/Weight: L 1.8 × W 1.5 × H 1.7m / 700kg
