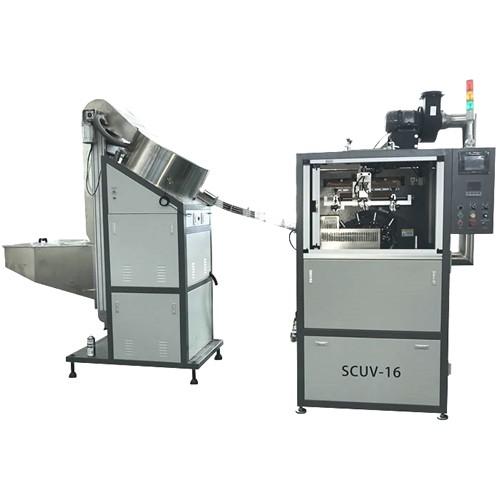

Product name:Aluminum Caps Automatic UV Screen Printer
Model Number: SCUV-16
Description:High Speed Automatic Screen Printing Machine for small round bottles and caps
Specifications︰
1.Printing speed: 3,6000-4,000Pcs/hr
2.Printing diameter:Round Dia φ15~φ60mm
3.Printing objects length: 20~200mm
4.Compress air:0.6~0.8MPa:
5.Burning oil air: 0.15MPa
6.Main machine dimension: 260*160*280CM
7.Power: 3KW,220V
8: UV Curing System Rate: 3KW(LED curing system optional)
9: Station Mandrill: 16pcs
10.Packing Size: 2 Wooden Case
1. Polywood Case Size:188*145*228CM(Main Part)
2. Polywood Case Size:135*95*210CM(Elevator)
3: Polywood Case Size:90*80*70CM (Hopper)
Advantages︰
1 Automatic single color screen printer on small Bottle and caps;
2 High efficiency, Auto Feeding, Flame Treatment , Auto Loading and Screen printing as well as UV drying all in one function. (LED curing system optional)
3 Online Flame Treatment.
4 Reliable PLC control & touch screen operation system.
5 Closed working system, well safety protection:
6 Promise of quality with SMC, FESTO pneumatic parts and Omron, Siemens Electric parts.
7 High quality aluminium alloy ensure light and ruggedization
8 Optional sensor for multi colors printing (optinal)
