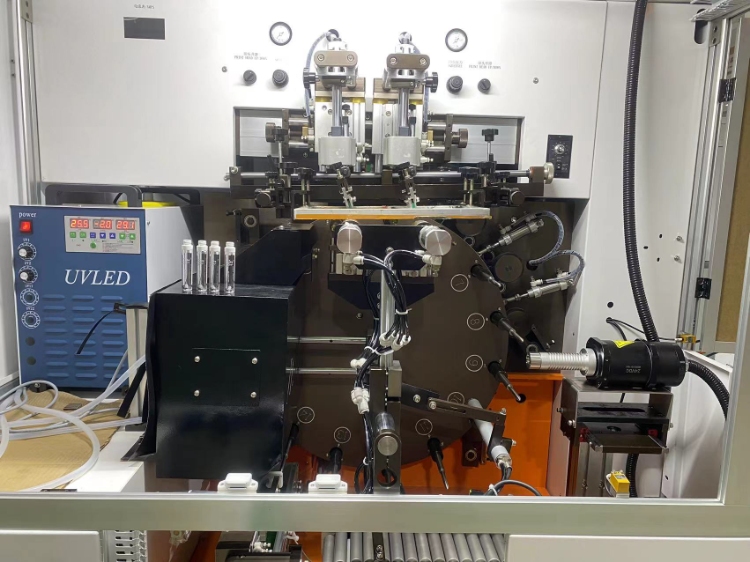

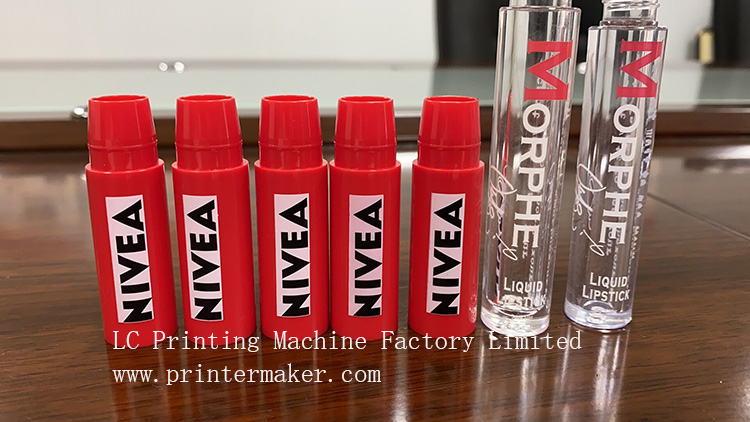

2 Colors Automatic UV Silk Screen Printing Machines on Lip Stick

  • Video

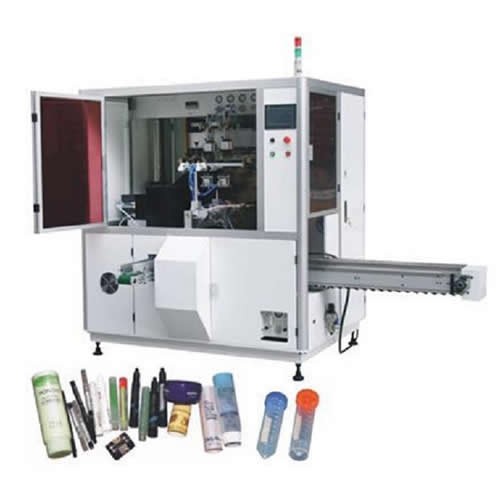

2 Colors Automatic UV Silk Screen Printing Machines on Lip Stick
1:Max. product size: Dia 8-28MM;L:20mm-230mm
2:Power Supply: 380V,3P,50HZ,4.5KW
3:Air supply: 6-8Bar
4:UV lamp power rate: 3.5KW
5:Max. Speed: 4200pcs/hour
6: Outter dimension: 2600*1700*1900mm
7: Total power: 3.8KW/4.6KW
8: Weight: 1400kg

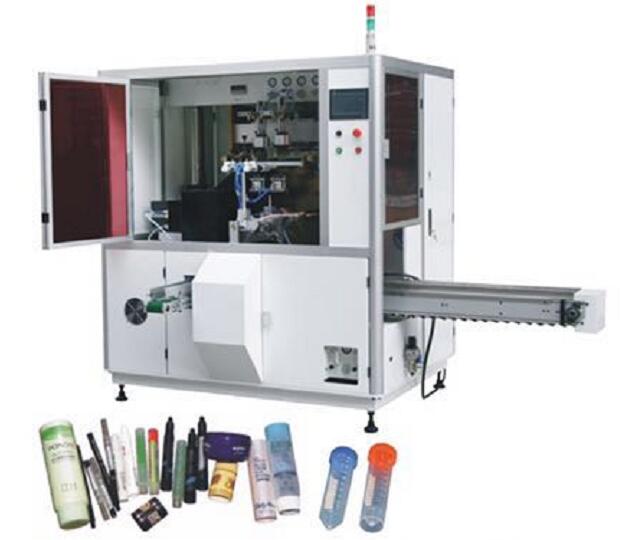

1: Specially designed for double-color screen printing on circular objuects, such as tube,cosmetic jars and so on. And also can achieve multi-color printing and precise color register.
2:  Main drive system uses transmission equipments of famous braend from Europe with precised high-speed indexer so that it can make operations more stable and reliable. The maximum printing speed can reach up to 4,300pcs per hour.
3:Equipped with world famous PLC controllers and convenient touch screen. Therefore the whole operation becomes easy and simple.

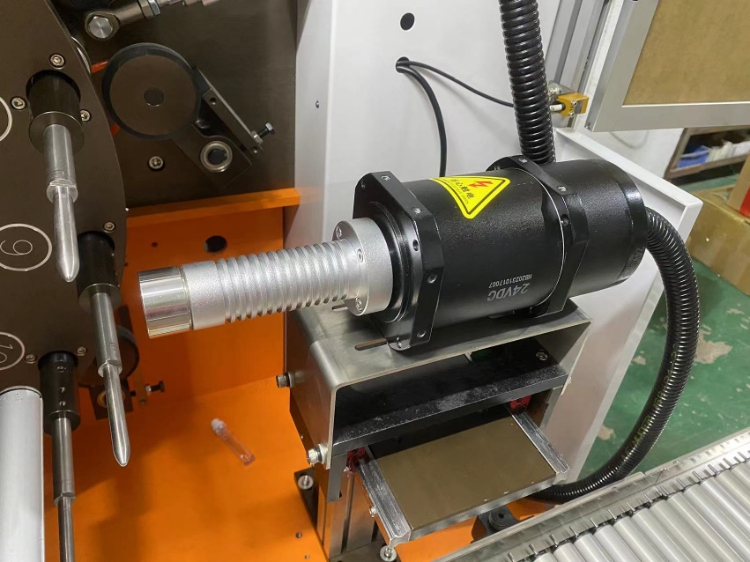

4:Printing ink can be dried by UV curing or infrared drying, and gain more idea solidificaion effect on the base of ensuring stable performance and power saving.
5:Be provided with automatic monitoring function such as anti-static dust removing; no object no printing; automatic alarm due to low air pressure and awste or wrong materials .etc
6: With automatic feeding system and discharge manipulator, not only ensure continuous and stable printing operation, but also avoid scratching surface of printed object during printing process and guarantee operator's safe operation.
Optional conferation (according to customer's requirement)
a. Automatic feeder (can save manpower and realize fully automaic poruduction)
b.Servo & Cursor Positioning System (can achieve precise color register for offset printing and hot stamping)
C. Mechanical positioning device (can realize multi-color overprinting)

d. Transformation function between screen printing and hot stamping
