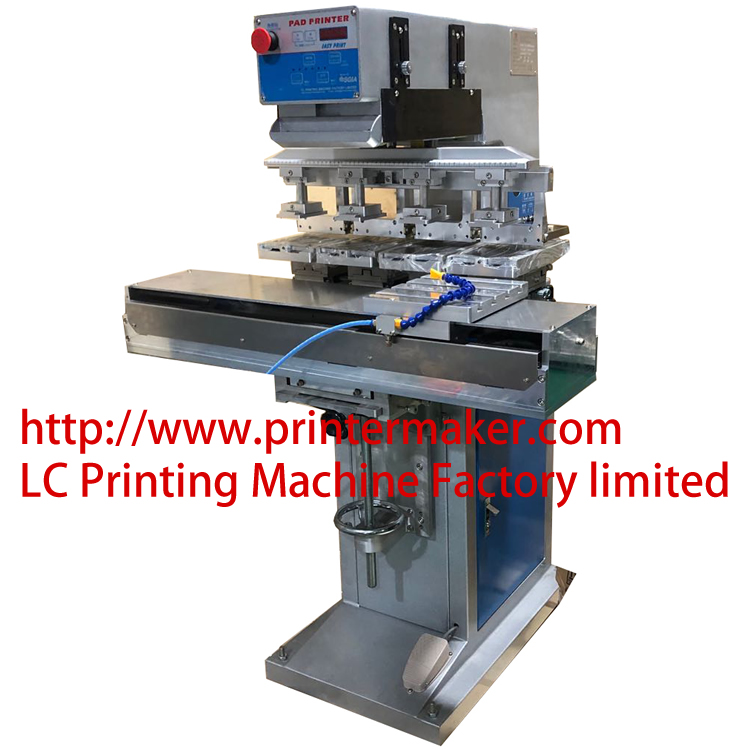

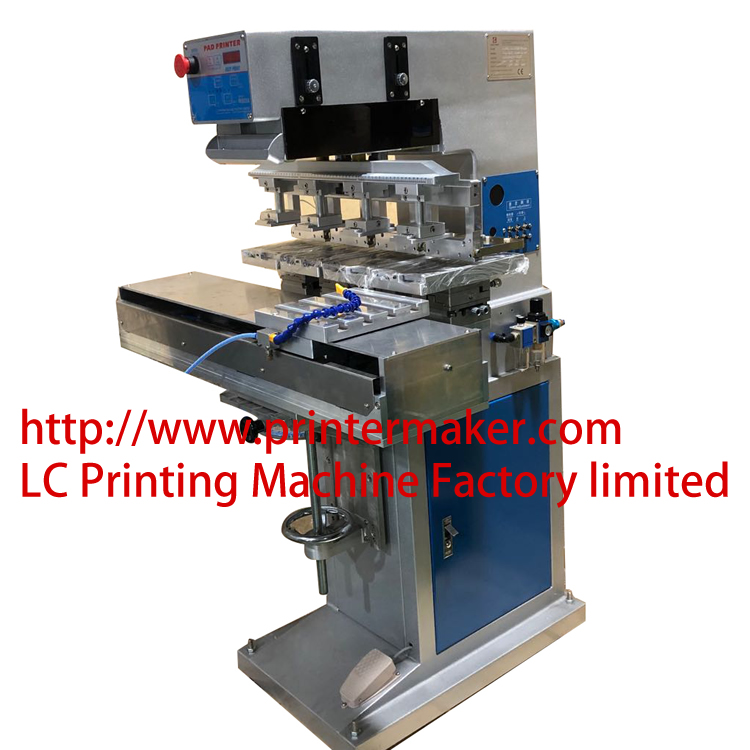

4 Colors Ink Cup Pad Printer with big ink cup

  • 4 Colors Ink Cup Pad Printer with big ink cup
  • 4 Colors Ink Cup Pad Printer with big ink cup
  • 4 Colors Ink Cup Pad Printer with big ink cup
  • 4 Colors Ink Cup Pad Printer with big ink cup
  • Model Number: EP4S-120D
  • Product price: US$:negotiated
  • Category: Economic Ink Cup Pad Printer
  • Views: 3675
  • Product Description:4 Colors Ink Cup Pad Printer with big ink cup
  • PRODUCT DETAIL

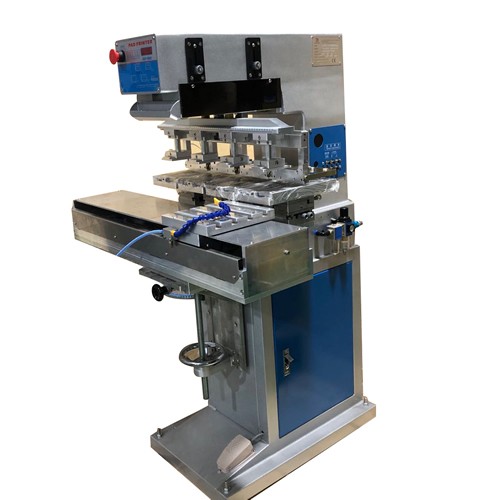

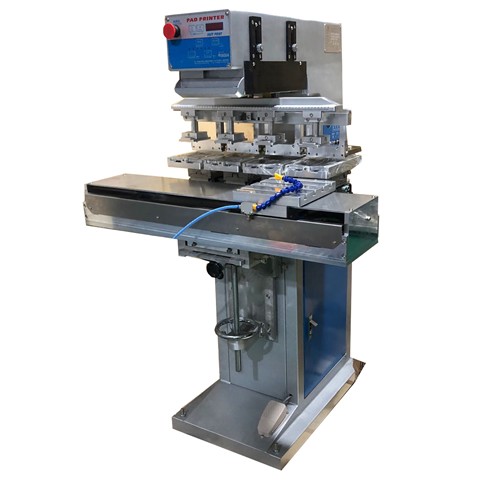

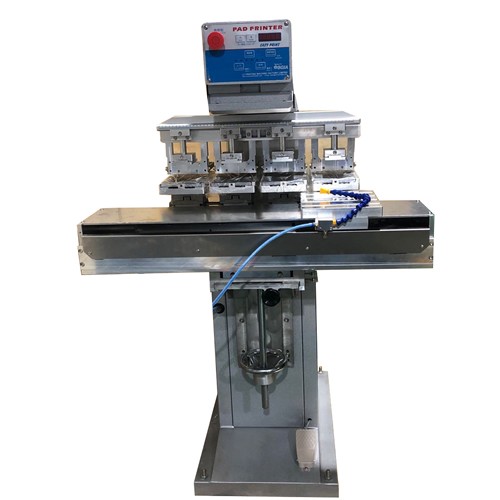

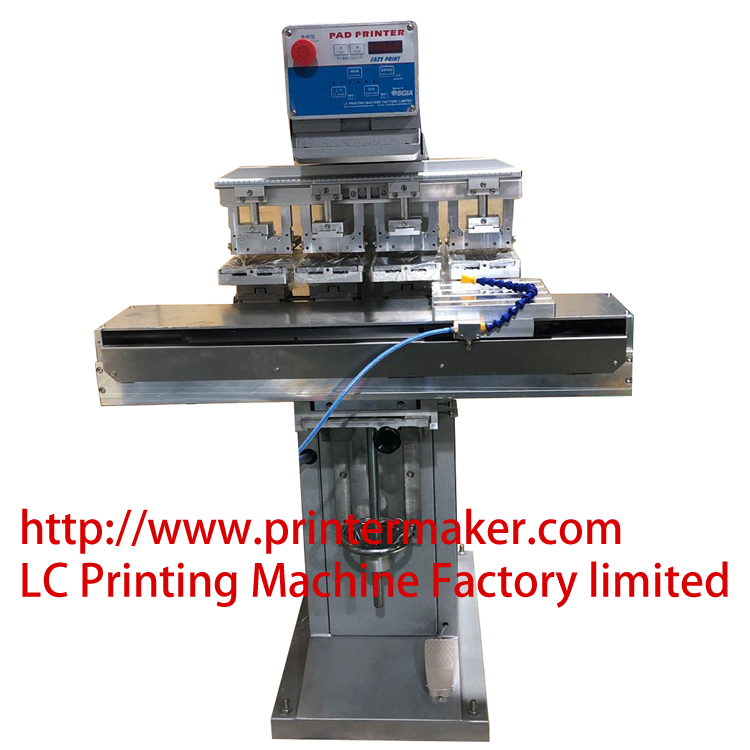

Product name:4 Colors Ink Cup Pad Printer with big ink cup

Model Number: EP4S-120D

Description:
4 Color Pad Printing Machine with enlarging ink cup diameter at 120mm
Specifications :
1. Model NO: EP4S-120D
2. Front and back cylinder stroke: 200mm
3. Printing Colors: 4

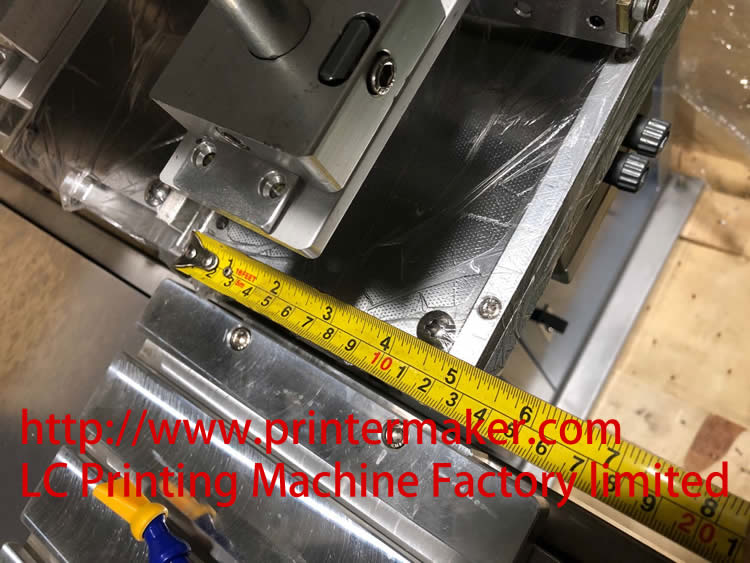

4. Plate area: 120*250mm

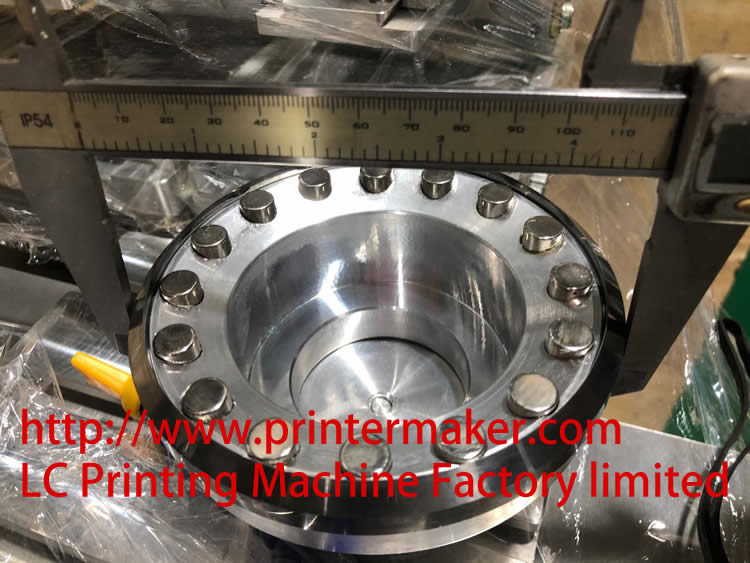

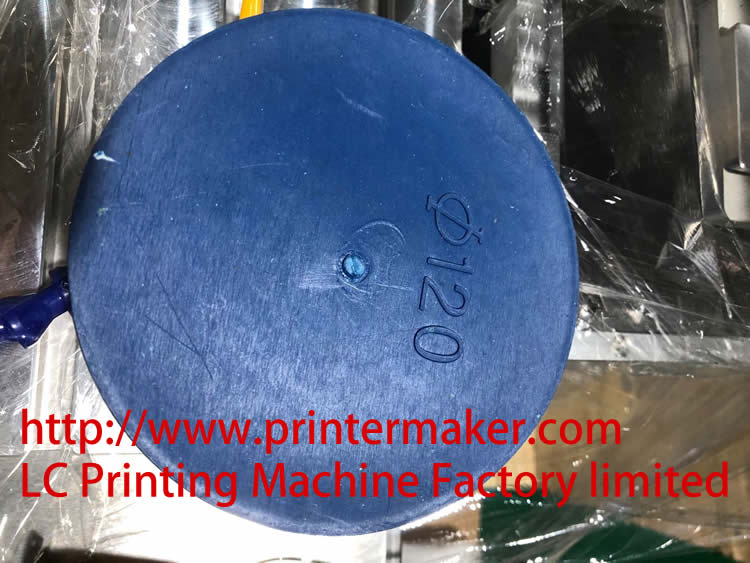

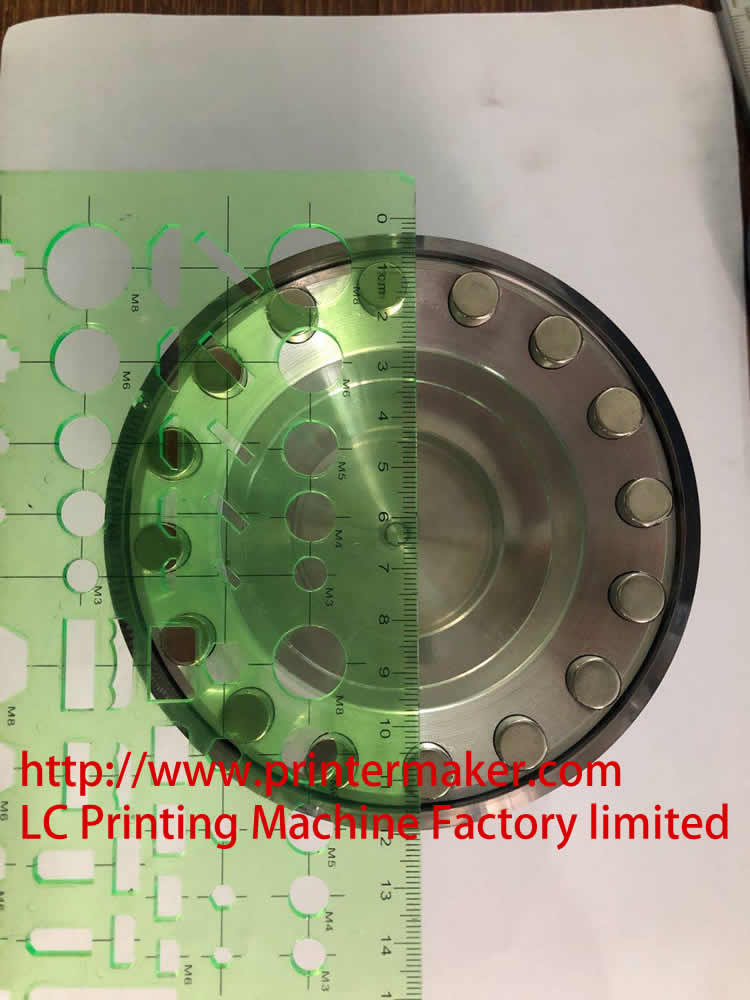

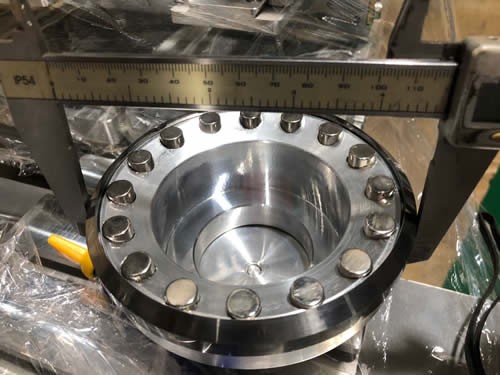

5. Sealed Ink cup:120 mm
6. Printing area: 90*135mm
7. Conveying Stations jigs: 1
8. Printing speed: 900PCS/H
9. Power Supply: 220V/ 50HZ 110V/60HZ
10. Air pressure:4-6Ba
11. Machine Size:80*85*138cm(with lifted handle)
12. Net Weight:180KG
13. Packing Size:102*102*155cm.
14. Gross Weight:215KG
Model Number: EP4L-120D
Description:
4 Color Pad Printing Machine with enlarging ink cup diameter at 120mm
Specifications :
1. Model NO: EP4L-120D
2. Front and back cylinder stroke: 200mm
3. Printing Colors: 4
4. Plate area: 120*330mm
5. Sealed Ink cup:120 mm
6. Printing area: 90*160mm
7. Conveying Stations jigs: 1
8. Printing speed: 900PCS/H
9. Power Supply: 220V/ 50HZ 110V/60HZ
10. Air pressure:4-6Ba
11. Machine Size:80*105*148cm(with lifted handle)
12. Net Weight:230KG
13. Packing Size:102*122*155cm.
14. Gross Weight:285KG
