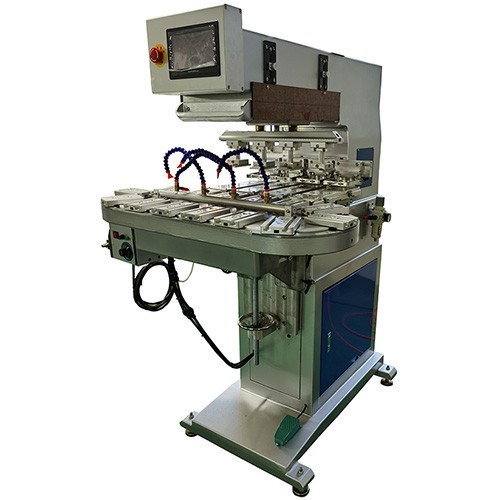

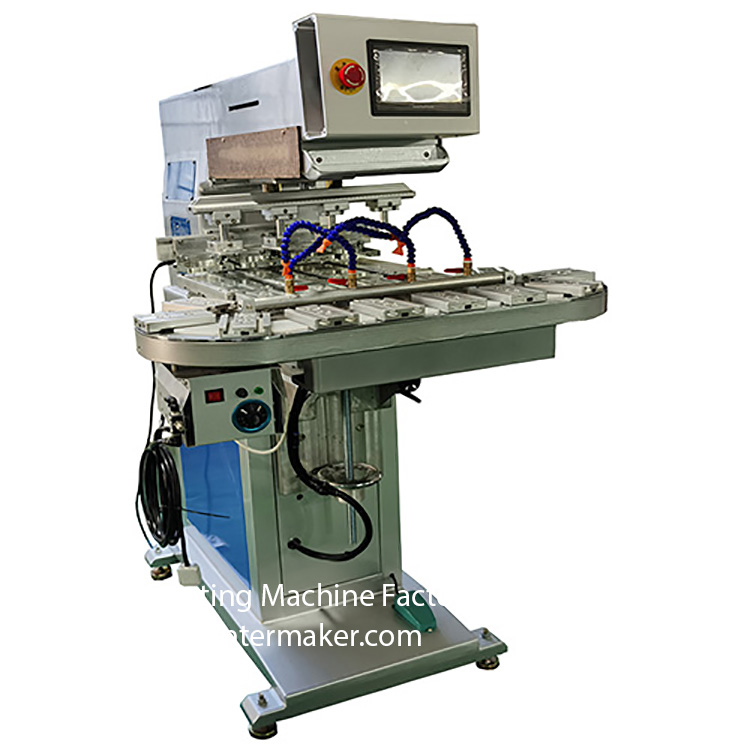

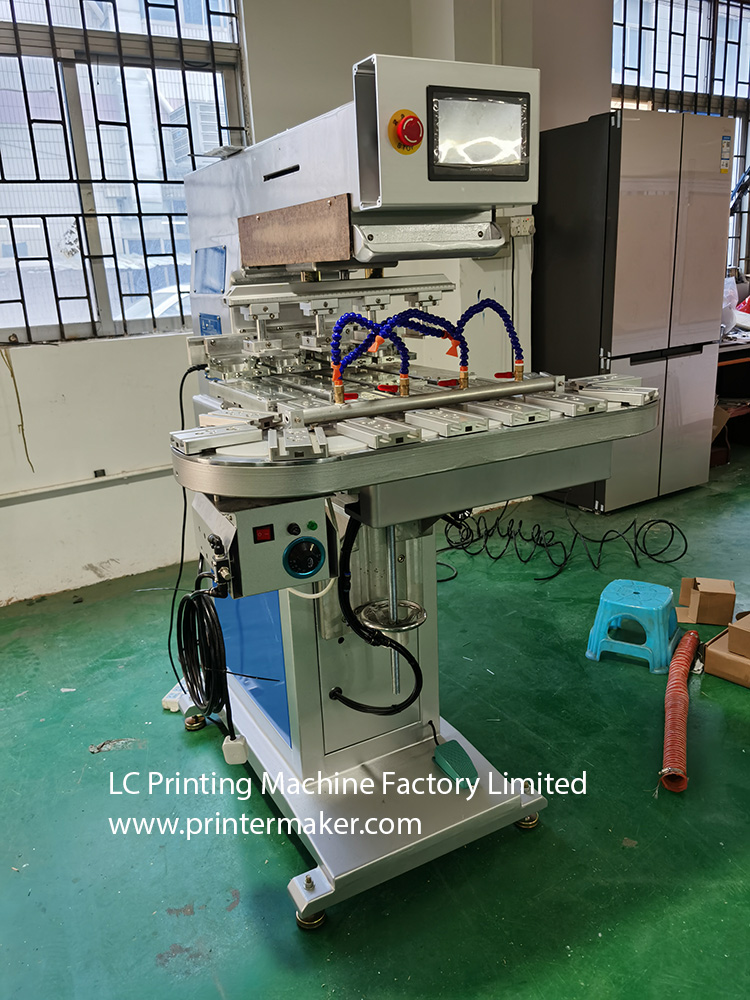

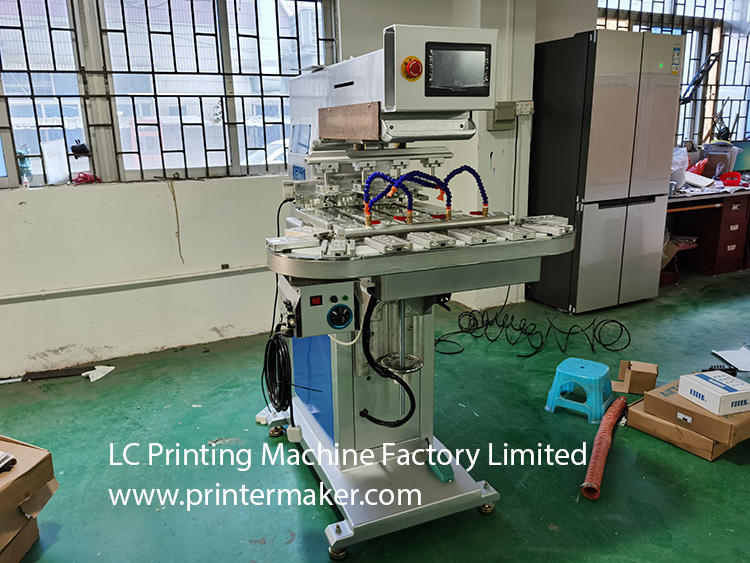

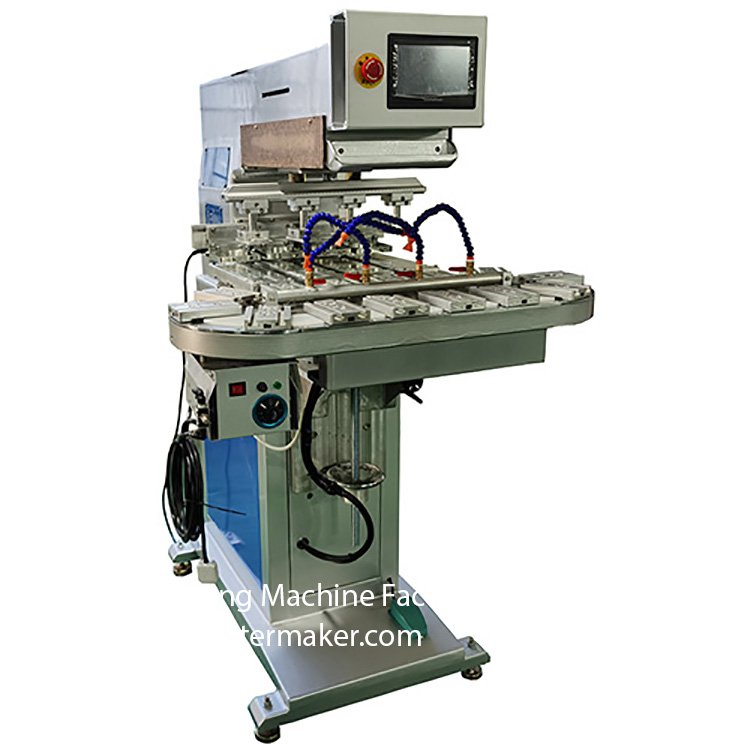

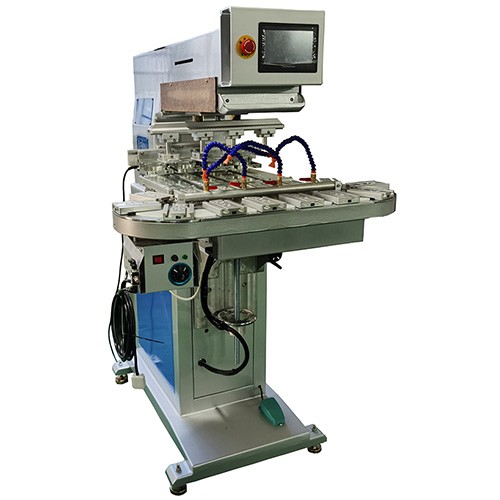

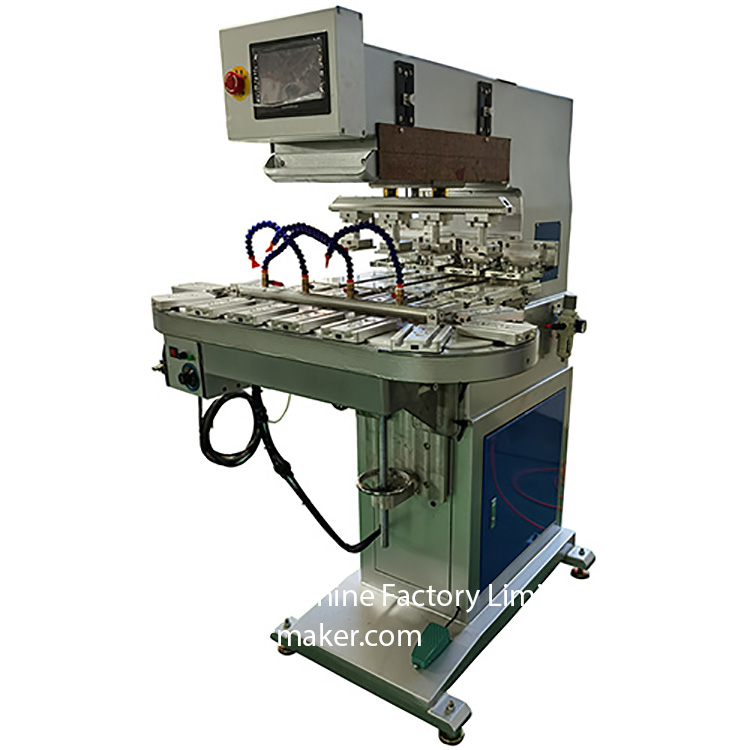

4 Color Ink Cup Pad Printing Machine with Conveyor

  • 4 Color Ink Cup Pad Printing Machine with Conveyor
  • 4 Color Ink Cup Pad Printing Machine with Conveyor
  • 4 Color Ink Cup Pad Printing Machine with Conveyor
  • Model Number: EP4C-250TL
  • Product price: US$:negotiated
  • Category: Economic Ink Cup Pad Printer
  • Views: 1456
  • Product Description:4 Color Ink Cup Pad Printing Machine with Conveyor
  • PRODUCT DETAIL
  • Video
  • Packing Photo

Product name:4 Color Ink Cup Pad Printing Machine with Conveyor

Model Number: EP4C-250TL

Machine Parameter:

Model no.:EP4C-250TL
1.Max. plate size:100×350×0.3 mm;
2.Max. worktable area:85×125mm;
3.Max. printing area:85×170mm; Color: from 1-4 colors.
4.Max. printing speed:1200pcs/hr;
5.Ink cup system: Ink cup at 100*90mm diameter, Ring size at 100*90*12mm
6.Air consumption:330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke:125mm;
9. Station number: 16
10.Machine Size:122*147*152
11.Net Weight:350 Kg
12: Packing size:1230*1250*1650mm
4 Color Pad Printer with Conveyor ensures that is environmental, safe, it is comply with CE Standard, ease operating, to consume ink that frugal. Help to reduce any solvents evaporating from the ink too quickly and also helps to keep the ink at a constant temperature.
It is to fit pad printing plastic products, same as toys, gift products, pen, PE products, golf ball package products, balls, , household, stationery, pen,
ball, electron products, mobile phone, bottle. Metals products, furniture fittings.
4-Colour Conveyor & sealed cup Pad Printer

1. Four color printing with conveyer;
2. Touch Screen Control easy operation;
3. English Version Touch Screen
4. Coin aluminum structure frame, the machine is light and sturdy;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating environment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9. 4-color, 3-color, 2-color, 1-color printing available,
10. The four ink cup can be independently adjusted for color registration;
11. With air jet for fast drying;

Free Fitting:

1. Four PCS steel plate
2. Four PCS rubber pad
3. English operating instruction

Price TermsFOB GUAGNZHOU
Payment TermsT/T OR LC

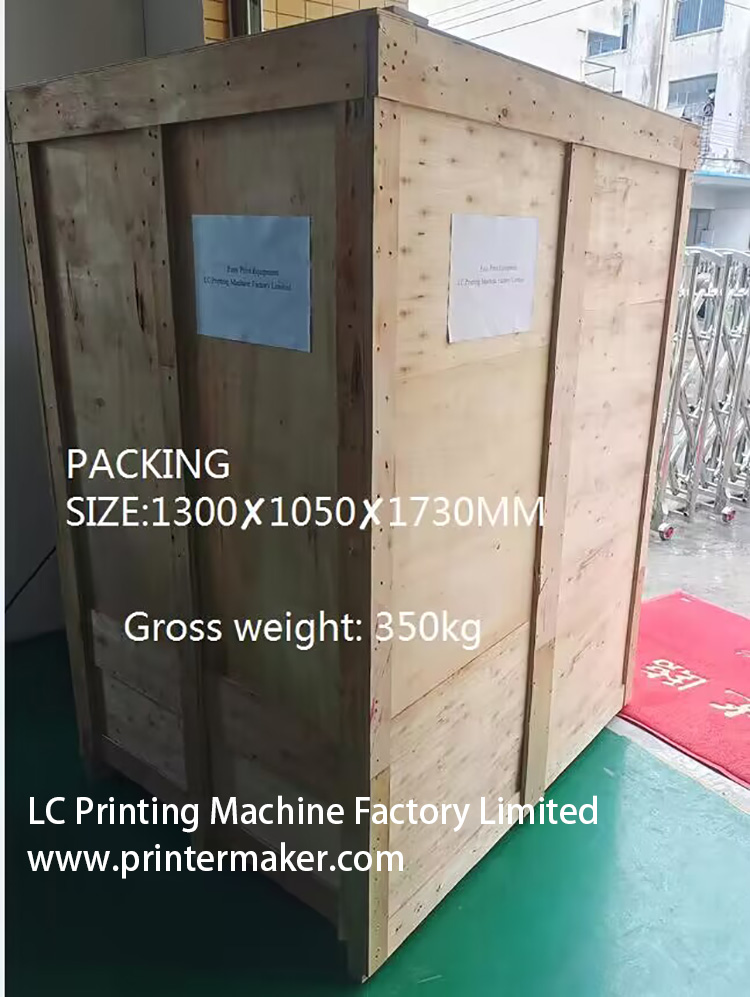

PackingWooden case
Lead Time5 DAYS AFTER PAYMENT
Standards CertificateCE
Cubic Meter 2.5
Machines Fittings SILICONE PADS ,STEEL PLATE
Main PartsCYLINDER MADE BY JAPAN
Application areaTOYS, PLASTIC ,ELECTRON PRODUCTS.
