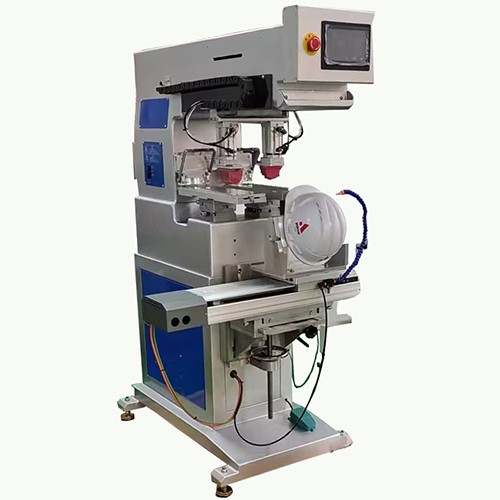

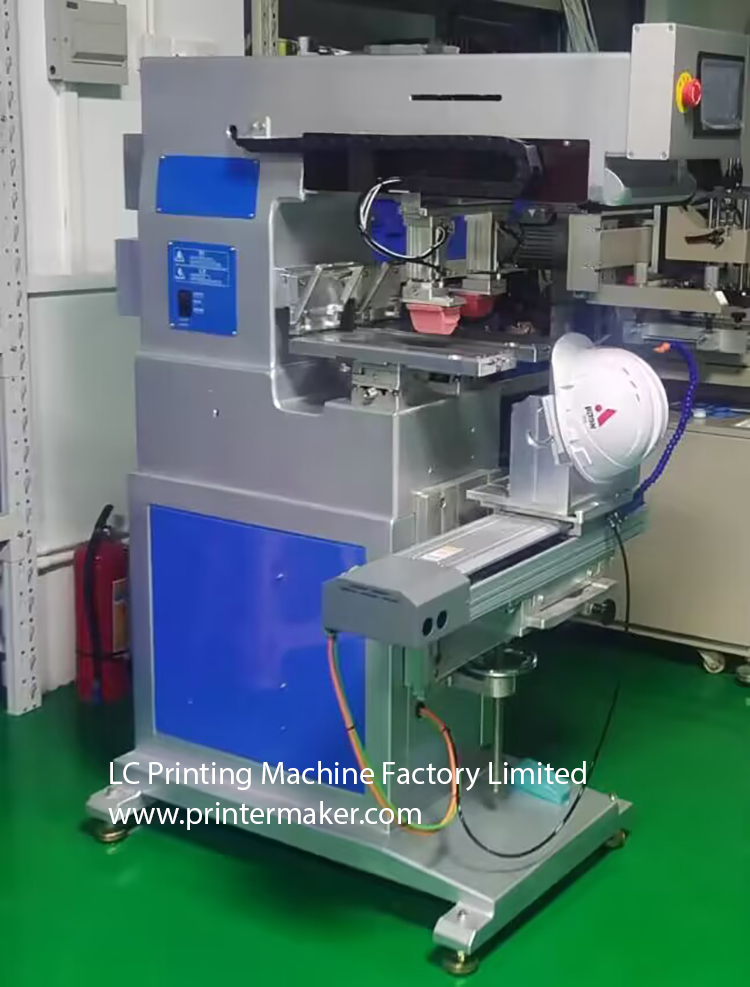

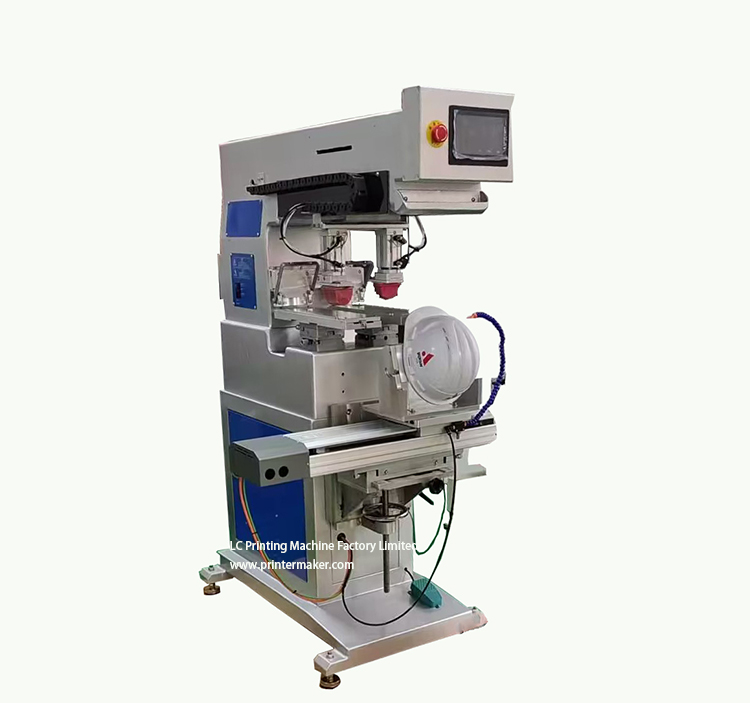

Two Colors Servo Ink cup Pad Printer

  • Model Number: M2-400T (PLC)
  • Product price: US$:negotiated
  • Category: Economic Ink Cup Pad Printer
  • Views: 1920
  • Product Description:Two Colors Servo Ink cup Pad Printer
  • PRODUCT DETAIL
  • Video
  • Packing Photo

Product name:Two Colors Servo Ink cup Pad Printer

Model Number: M2-400T (PLC)

1.Max. plate size: 120✘400;
2..Max. printing area: 100×250mm;
4.Max. printing speed: 1500pcs/hr;
5.Printable colors:2;
7. Stroke of table shuttle: 125mm.
8: Packing Size:1100*740*1620mm
9: Power Supply: 110/220V/60HZ/50HZ 1-PHASE 60W

Feature:
1. PLC Servo Motor control for the shuttle table;

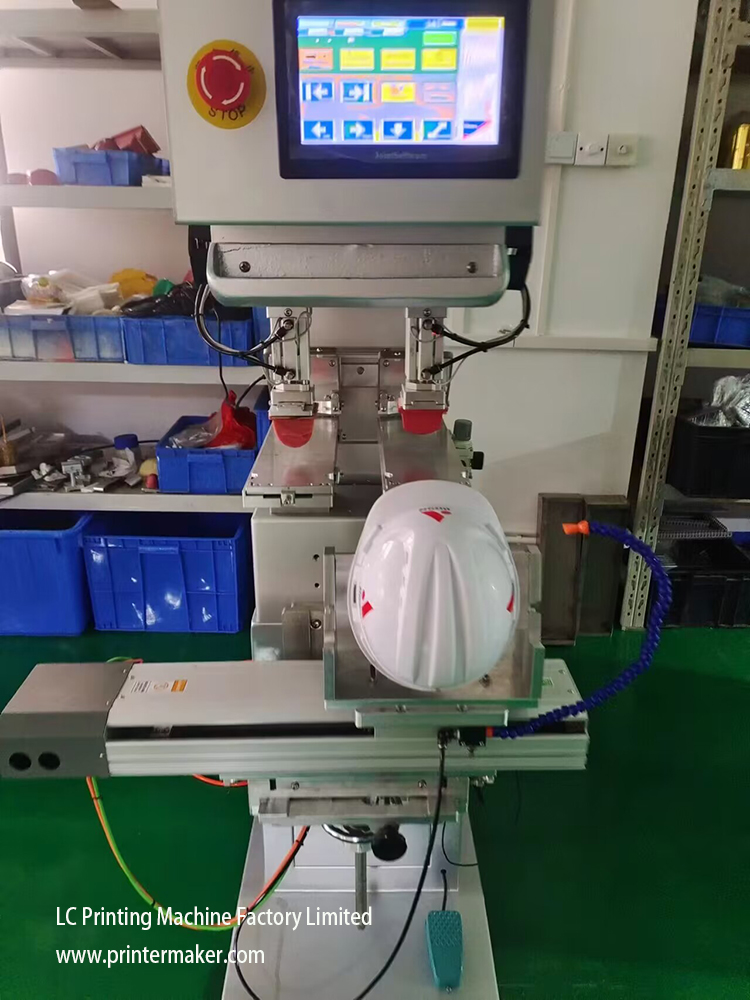

2. Touch Screen Control easy operation;

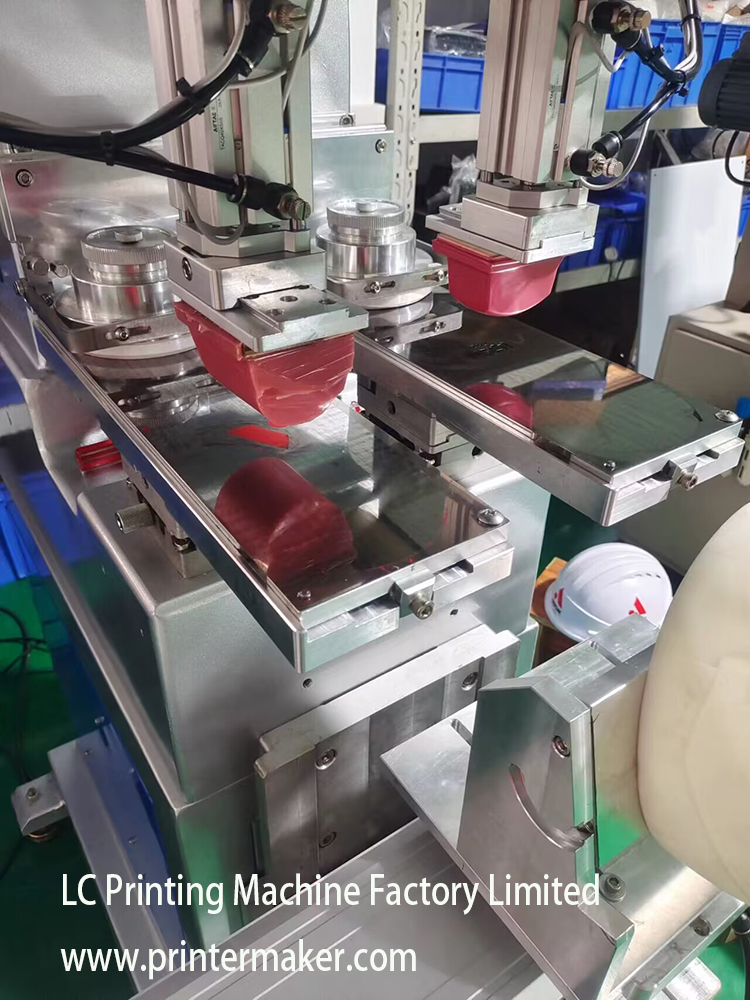

3. Independent rubber pad printing head,The two ink cup can be independently adjusted for color registration;
4. Coin aluminum structure frame, the machine is light and sturdy;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating environment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9. 2-color, 1-color printing available,
10.  Longer front and back printing stroke at 300mm for large printing size.

This machine is perfect for larger products with two colors printing,

it is fitting on all buckets, jars, helmet in single and two colors pad printing.
