Silkscreen Frame LED UV Exposure machine

  • Model Number: M-5060LED
  • Product price: US$:negotiated
  • Category: Plate Making Equipment
  • Views: 578
  • Product Description:Plate printing machine screen plate printing machine pad printing plate printing machine uv exposure machine sand film
  • PRODUCT DETAIL
  • Packing Photo

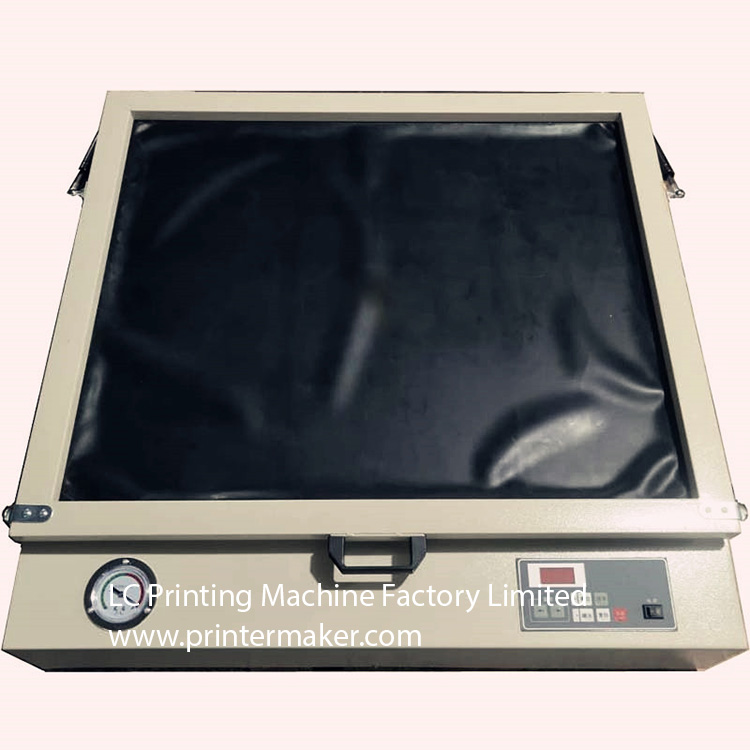

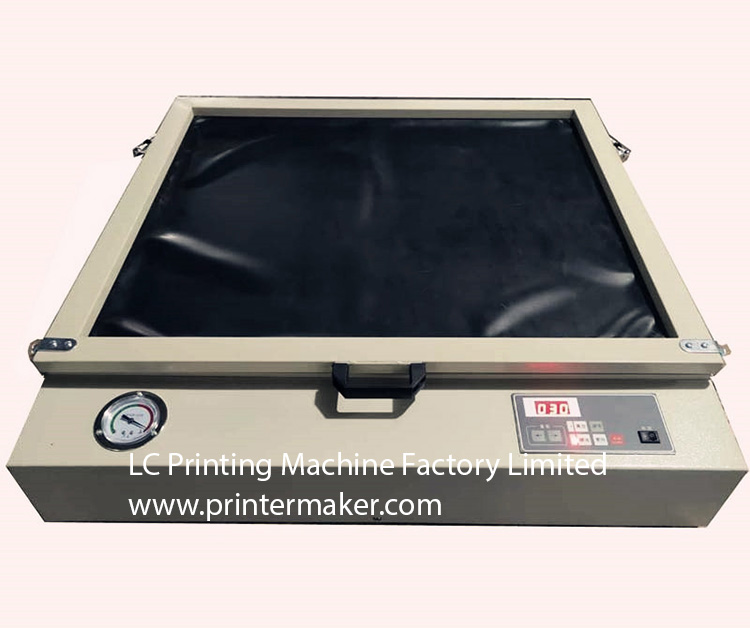

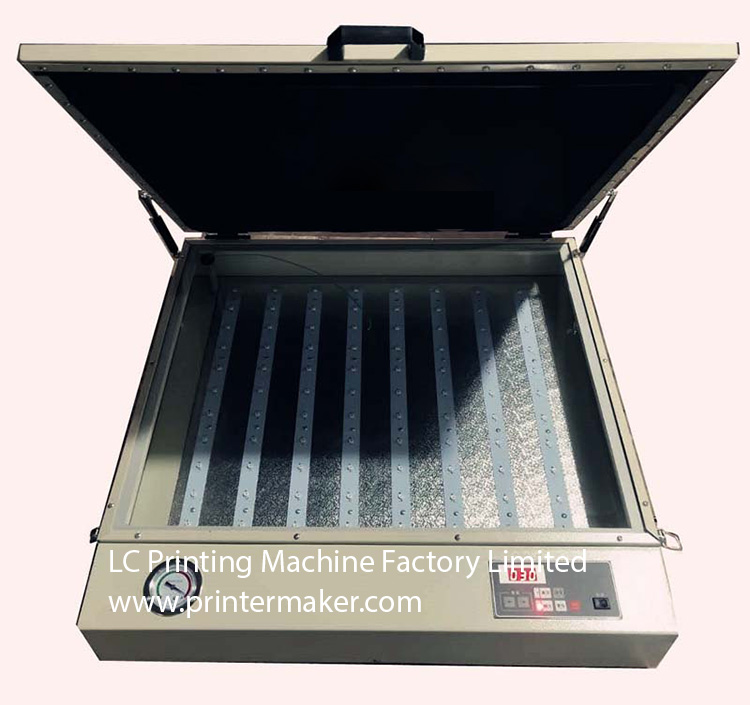

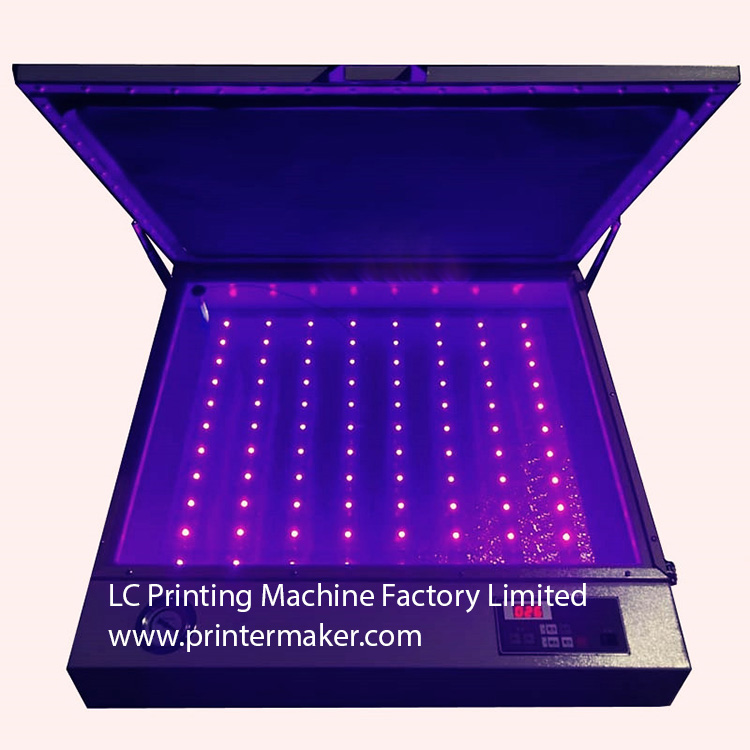

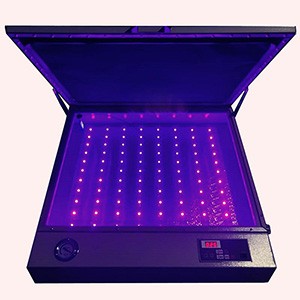

Product name:Silkscreen Frame LED UV Exposure machine

Model Number: M-5060LED

M5060LED is a new model launched by our company, plate drying using microcomputer control, digital display, key number, parameter storage, intelligent design, easy to operate, the use of new oilfree vacuum pump, vacuum degree up to -0.08mpa, equipped with vacuum display table; Printing plate light source adopts 8 10W ULTRAVIOLET light tubes, can be widely used in screen plate, resin plate, pad printing plate production.

Main parameters:

1.Light source: 8 * 10 w
2.Vacuum: -0.08mpa
3.Power: 100 w
4.Glass area: 700*600MM
5.Mesh frame size :600X500MM
6.Overall size: 850X820X220MM
7.Packing size: 880X860X270MM
8.Net weight: 30 kg
9.Gross weight: 43 kg
