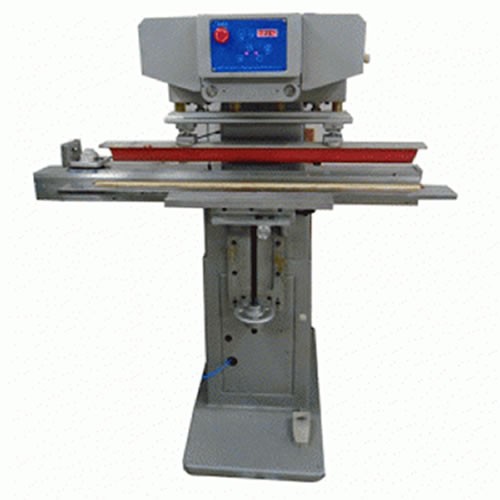

1M Wooden Ruler Pad Printing Machine

Product name:1M Wooden Ruler Pad Printing Machine

Model Number: WRP-1000

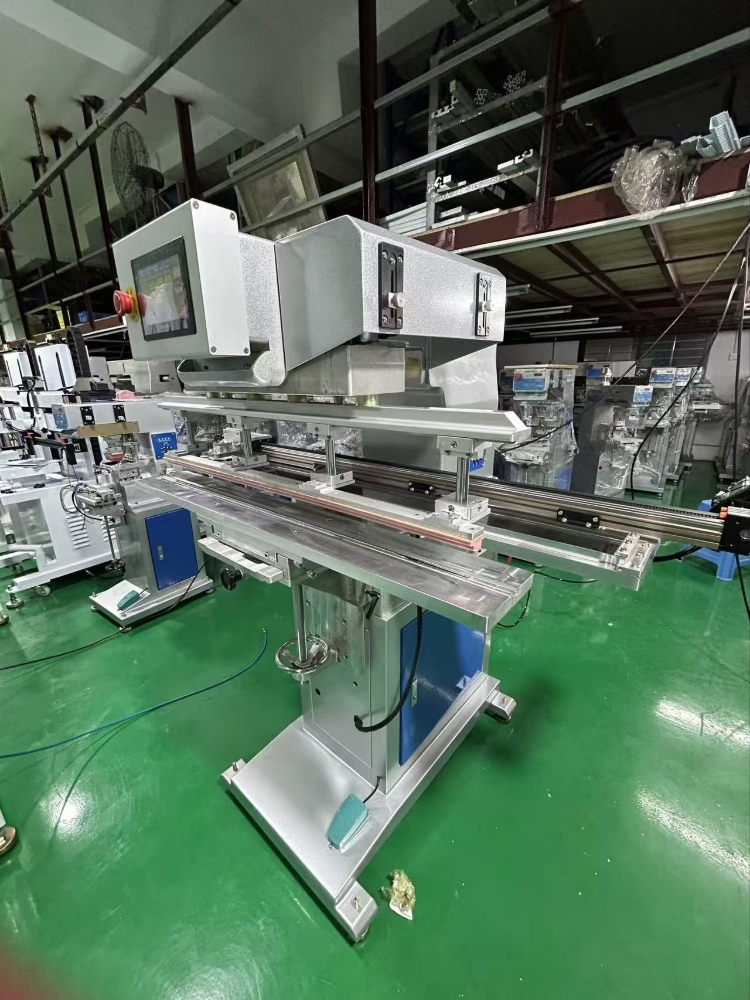

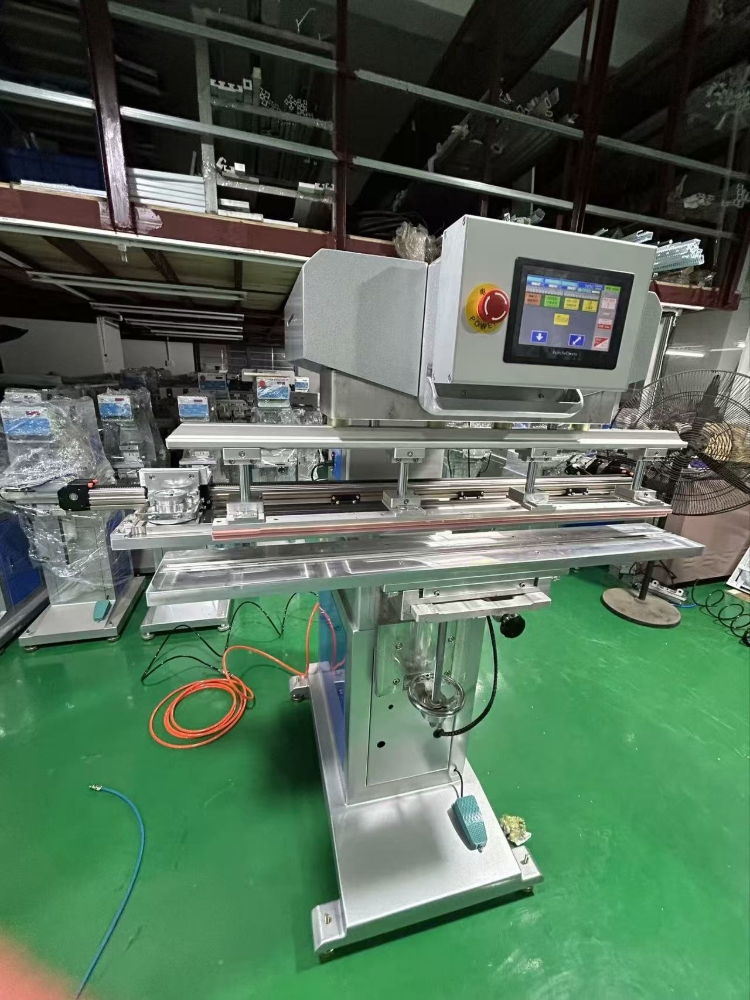

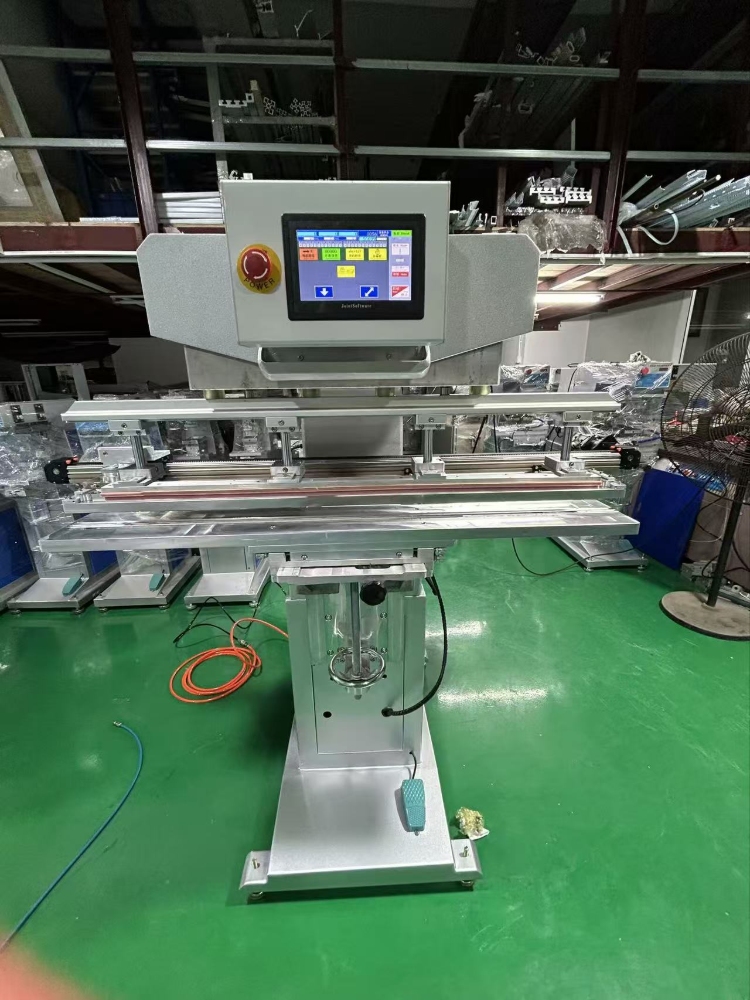

1M Wooden Ruler Pad Printing Machine with Servo Motor
Model Number: WRP-1000
Technical parameter
Pad Print Head Stroke:200mm
Pad Print head stroke of 75mm
Horizontal Module Servo Drive Stroke:1200mm
Steel plate size: 100*1200mm
Ink cup diameter: 90mm
Printing Size:70 * 1000mm
Touch Screen Control
Printing speed: 500PCS/hr
Power:110V or 220V(optional)
Air pressure: 5-7bar
Machine size: 1500*1000*1500mm
Machine weight: 250KG

Application
The ruler pad printer is special design for printing ruler with 1m length. It's adopted transverse  ink cup system, double printing cylindrical to make sure enough pressure
Function
1. Compile programming by IC, easy to operate;
2. Pad printing with single color, perfect printing quality;
3. Stable function, printing speed: 500times / hr;
4. Suitable ruler length: Within 100CM;
5. Sealed ink cup system, more environmental;
6. Locating by keeping one side with big vacuum function;
7. Using SMC (Japan) and Taiwan pneumatic parts;
8. The X and Y of printing pad can be adjusted;

9. It's suitable for printing aluminum ruler,plastic ruler,wooden ruler within 100CM
