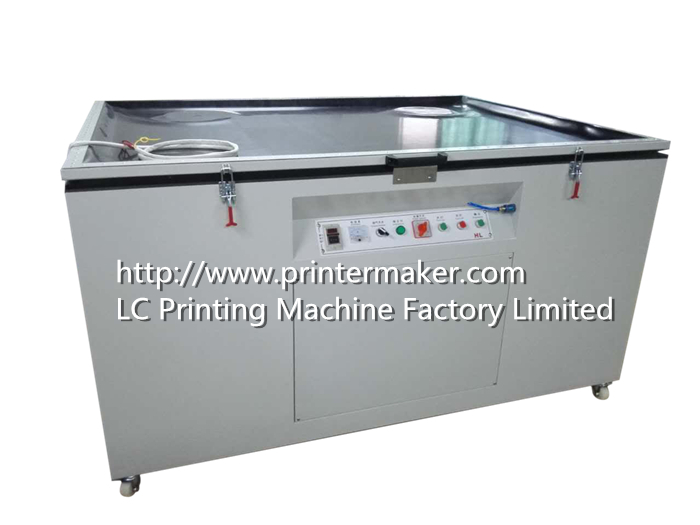

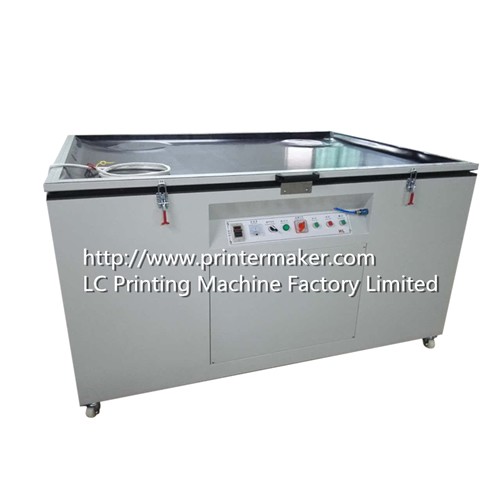

Large Size UV Exposure Machine

  • Model Number: M-2000SB
  • Category: Plate Making Equipment
  • Views: 255
  • Product Description:Large Size UV Exposure Machine
  • PRODUCT DETAIL

Product name:Large Size UV Exposure Machine

Model Number: M-2000SB

Description:
Large Size UV Exposure Machine
Specifications:
1.Glass Dimension: 1500×2000mm;
2.Glass thickness: 1995*1495*12mm.
3.Gallium Lodine Lamp Wattage: 3000W;
4.Vacuum degree: 0.05mpa.
5.Wattage: 80w/cm.
6.Lamp distance:850mm;Wave:360
7: Expose time: 20-30 seconds, net point: 10-13 seconds
8.Gross Weight:420KG.
9: Vacuum rubber thickness: 12mm
10.Machine domension: 2100×1600×1200mm;
11.Max Frame Dimension: 1900×1400mm;
12. Max Exposure Area: 1750×1250mm.

13: Packing size: 2160×1630×1260mm

Large Size UV Exposure Machine
