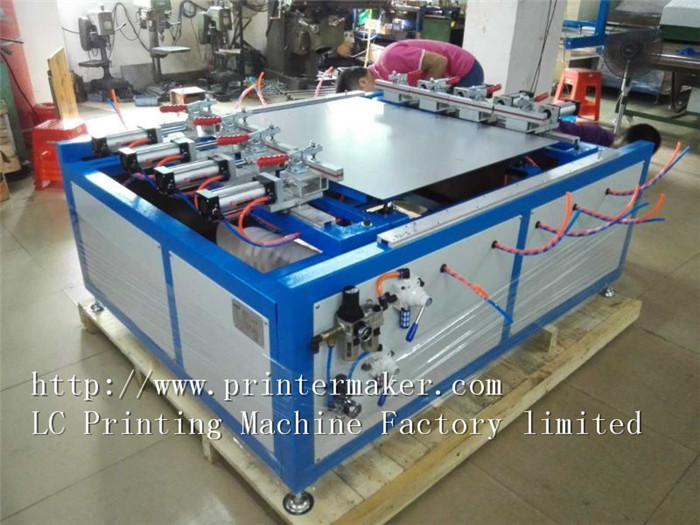

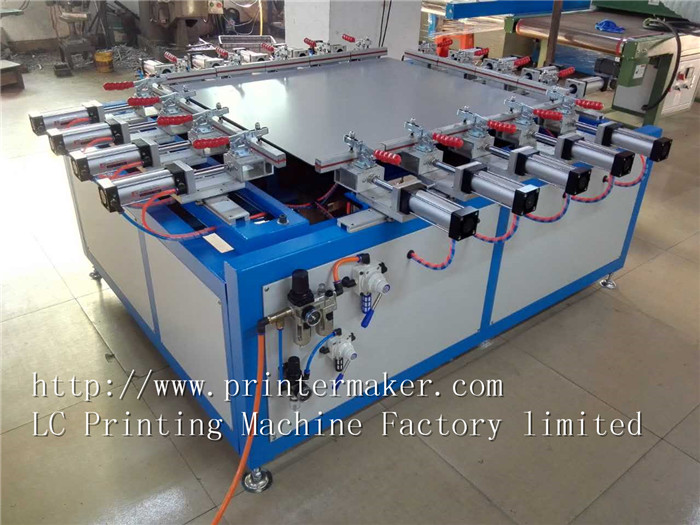

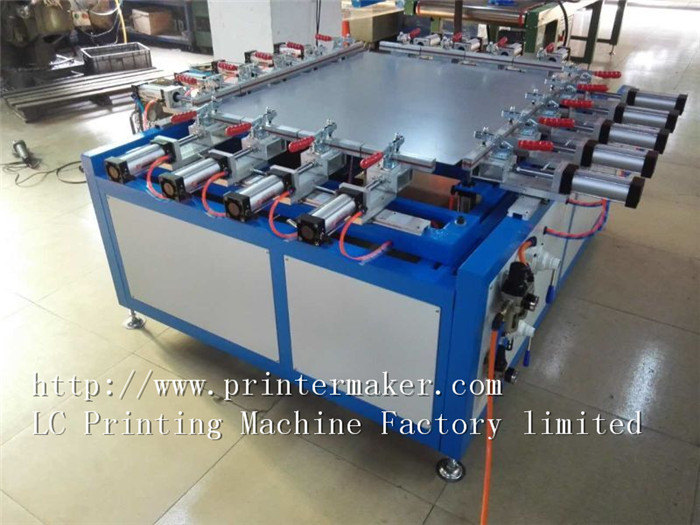

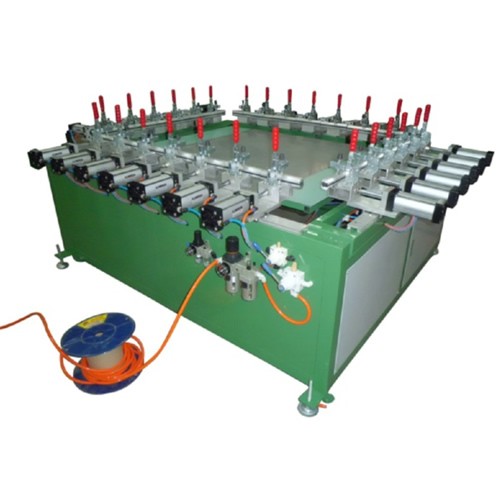

Pneumatic Screen Mesh Stretching Machine

  • Model Number: PSMS-10/12/14/16/18/20/22
  • Category: Plate Making Equipment
  • Views: 234
  • Product Description:Pneumatic Screen Mesh Stretching Machine
  • PRODUCT DETAIL
Description:
Pneumatic Screen Mesh Stretching Machine
PSMS-10(Price at 1900USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area: 400x600 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1400×1200×1100 mm (L*W*H)
5. Machine weight: 80KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 10 pcs
PSMS-12  (Price at 2000USD)
Specifications
1. Simple: Easy to operate, no need electronic
2. Max tension area: 600x600 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1400×1200×1100 mm (L*W*H)
5. Machine weight: 90KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 12 pcs
PSMS-14(Price at 2300USD)
Specifications
1. Simple: Easy to operate, no need electronic
2. Max tension area: 600x800 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1600×1400×1100 mm (L*W*H)
5. Machine weight: 140KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 14 pcs
PSMS-16(Price at 2500USD)
Specifications
1. Simple: Easy to operate, no need electronic
2. Max tension area: 800x800mm (600x1000 mm)
3. Frame: Adjust as per the frame size
4. Machine dimension: 1740×1400×1100 mm (L*W*H)
5. Machine weight: 200KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 16 pcs
PSMS-18(Price at 2700USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area 800x1000 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1740×1500×1100 mm (L*W*H)
5. Machine weight: 220KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 18 pcs
PSMS-20(Price at 2900USD)
Specifications
1. Simple: Easy to operate, no need electronic
2. Max tension area: 1000x1000 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1740×1740×1100 mm (L*W*H)
5. Machine weight: 240KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 20 pcs
PSMS-22(Price at 3000USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area: 1000x1200 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 1750×1540×1100 mm (L*W*H)
5. Machine weight: 260KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 22 pcs
8.Packing Size:174*159*125CM
PSMS-22(Price at 3300USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area: 1600x1200 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 2200×1840×1100 mm (L*W*H)
5. Machine weight: 340KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 22pcs
8.Packing Size:2250*1980*1250MM
PSMS-26(Price at 3500USD)
Specifications:
1. Simple: Easy to operate, no need electronic
2. Max tension area: 1700x1400 mm
3. Frame: Adjust as per the frame size
4. Machine dimension: 2200×1740×1100 mm (L*W*H)
5. Machine weight: 360KG
6. Compress air: 6 bar
7. No. of pneumatic unit: 26 pcs

8.Packing Size:2250*1950*1250MM
