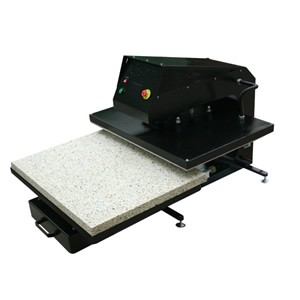

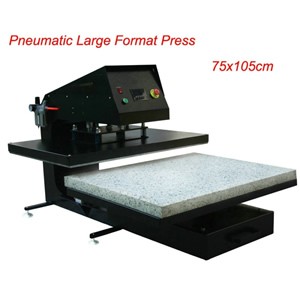

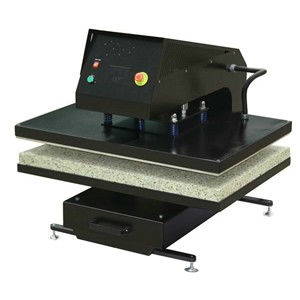

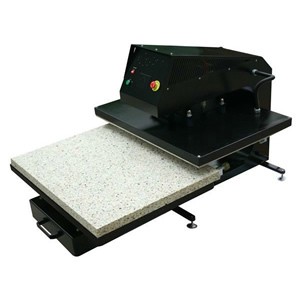

Product name:T Shirt Large Format Heat Press Machine
Model Number: APHD-40
Large Format 70x105 Heat Platen with automatic air operated pressing. Built with a long lasting air cylinder lift system. Draw-out under plate for easy lay out. Fully digital time & temperature
Large Format 30'' x40'' Heat Platen
Automatic air operated pressing
Built with a long lasting air cylinder lift system
Draw-out under plate for easy lay out
Fully digital time & temperature
Automatic on/off setting
Emergency release button
♦ Machine Type: Automatic, One Station
♦ Platen Size: 30"*40"(75*105cm)
♦ Under Plate: Draw-out
♦ Controller: GY-04 Digital Time & Temp. Control
♦ Printable Articles: Up to 20mm Thickness
♦ Air Compressor Required: Yes
♦ Voltage: 220V
♦ Power: 5.1KW
♦ Time Range: 0-999 sec.
♦ Maximum Temp: 225 C
♦ Temperature Accuracy: ±0.5%
♦ Packing Size: 137*122*129cm
♦ Gross Weight: 340kg （Wooden Package）
Heat Platen Test:
Each Single Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.
Quality Control on Finished Machine:
All heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2)Keep the temperature stay at 200 degree Celsius for at least 20 minutes
The machine is packed in wooden package and provide with manual.
Especially for Large Size cloth, banner, also for T-shirt, Puzzle, Mouse Pad, Metal Board, Fridge Magnet, Coaster, Slipper, Bag, Cushion etc
