LC Printing Machine Factory Limited

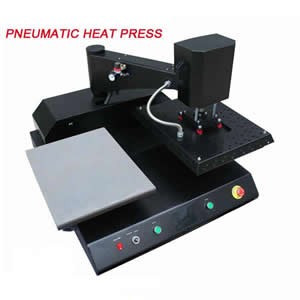

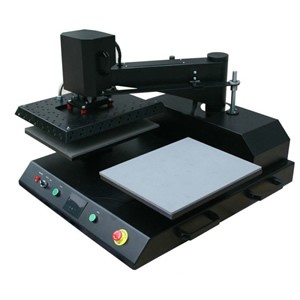

Pneumatic Double Location Heat Press Machine

  • Pneumatic Double Location Heat Press Machine
  • Pneumatic Double Location Heat Press Machine
  • PRODUCT DETAIL

Product name:Pneumatic Double Location Heat Press Machine

Model Number: APDL-20/24

Description:
APDL is full automatic air operated press with easy swing away motion. Dual press bed for fast production. Allowing the operator to prepare the next products/print while the other station is transferring the image. Well-suited for transferring graphics to textiles, lags & banners etc.
Pneumatic Double Location Heat Press Machine
Specification:
♦ Machine Type: Auto up & down, Auto Swing, Double Station
♦ Platen Size: 16"*20"/16"*24"
               (40*50cm/40*60cm)
♦ Under Plate: Exchangeable
♦ Controller: GY-04 Digital Time & Temp. Control
♦ Printable Articles: Up to 20mm Thickness
♦ Air Compressor Required: Yes
♦ Voltage: 120V/ 220V
♦ Power: 1.75KW/ 1.8KW
♦ Time Range: 0-999 sec.
♦ Maximum Temp: 225 C
♦ Temperature Accuracy: ±0.5%
♦ Packing Size: 110*110*94cm
♦ Gross Weight: 231kg (Wooden Package)

Heat Platen Test:
Each Single Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.

Quality Control on Finished Machine:
All heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2) Keep the temperature stay at 200 degree Celsius for at least 20 minutes

Package:
The machine is packed in wooden package and provide with manual.

Features:
Advanced Air Pressed Double Location Heat press
Increases your production efficiency
Automatically top-down pressure
No movement of heat applied graphics
Easy-to-operate
Great for Bulk Production

Application
For T-shirt, Puzzle, Mouse Pad, Metal Board, Fridge Magnet, Coaster, Slipper, Bag, Cushion etc
