LC Printing Machine Factory Limited

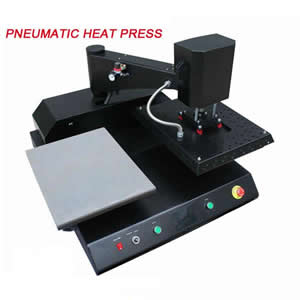

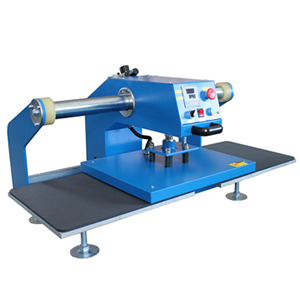

Double Station Pneumatic Automatic Heat Press Machine

  • PRODUCT DETAIL
  • Video

EXW Factory Price:
38*38  :1000USD
40*50  :1100USD
40*60  :1200USD



Specification:

Model No. B1-2

Machine Type:        Double Station Pneumatic Automatic Heat Press Machine

Controller:               Digital Time & Temp. Controller

Voltage:                  110V/220V

Power   :                 1.4kW~1.7kW

Time Range:            0-60sec.

Max. Temp. :          245°C (473°F)

Printing Area :         380mm x 380mm (15" x 15")/ 400mm x 500mm (16" x 20")

Under Plate :           Draw-out available

Swing-away :          Yes

Air Compressor :     Required

PrintingThickness:    Up to 53mm

Gross Weight:         121Kgs

Package Size :         760mm x 520mm x 580mm/ 820mm x 500mm x 550mm

                         40*60CM Packing Size:142*72*77CM  Gross Weight:135KG

Application:

T-shirt, Puzzle, Mouse Pad, Metal Board, Coaster, Slipper, Bag, Cushion, etc.

Features:

1. Solid steel framework & stainless steel hardwares.

2. Fully digital temperature & time control.

3. Automatic alarm, temperature & time recycle.

4. Teflon-coated thick heating platen, speed & even heater technology.

5. Pneumatic drive, labor saving and user friendly.

6. Swing-away, silde-out working table, thick heat press supported.

Strict Quality Control:

1. Each single heating rod is tested before being casted in an aluminum alloy.

2. Each single digital time & temp controller is tested before assembling.

3. All heat press pass high temp. test (200°C) for at least 20 minutes before packing.

Warranty:

1. Free life-time technical support on all heat press.

2. One-year warranty on entire press machine & spare.

3. Five-year warranty on castings, welds.

4. Five-year warranty on heating plate.

5. Six-month warranty on mug, plate, cap heat press machine.

Application:

T-shirt, Puzzle, Mouse Pad, Metal Board, Coaster, Slipper, Bag, Cushion, etc.

Features:

1. Solid steel framework & stainless steel hardwares.

2. Fully digital temperature & time control.

3. Automatic alarm, temperature & time recycle.

4. Teflon-coated thick heating platen, speed & even heater technology.

5. Pneumatic drive, labor saving and user friendly.

6. Sewing-away, silde-out working table, thick heat press supported.

Strict Quality Control:

1. Each single heating rod is tested before being casted in an aluminum alloy.

2. Each single digital time & temp controller is tested before assembling.

3. All heat press pass high temp. test (200°C) for at least 20 minutes before packing.
