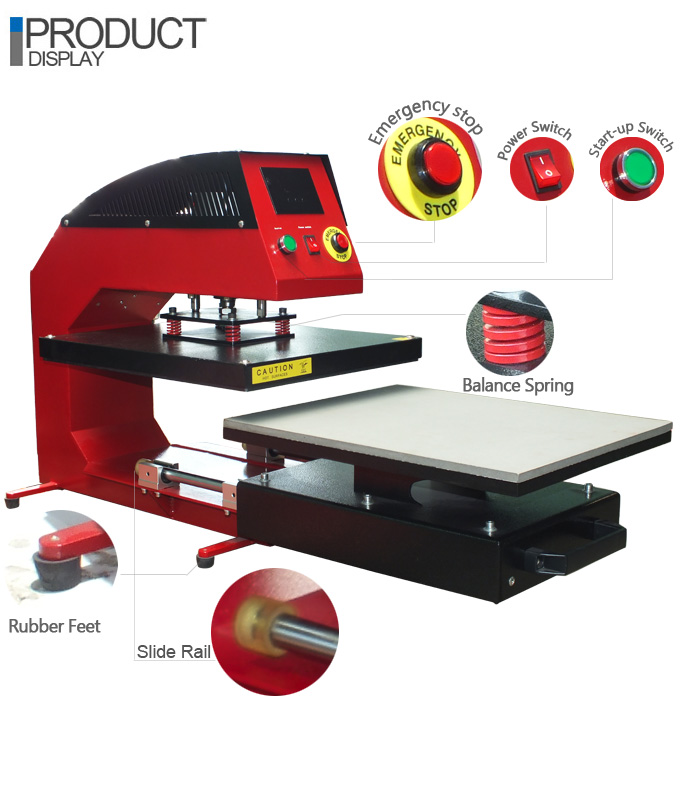

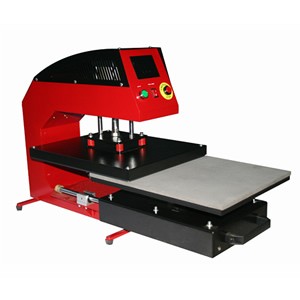

Pneumatic Draw Out Heat Press Machine

  • Pneumatic Draw Out Heat Press Machine
  • Pneumatic Draw Out Heat Press Machine
  • PRODUCT DETAIL

Description:
It’s a commercial grade air operated machine. Built with a long lasting air cylinder lift system, draw-out under plate for easy lay out. The smooth automatic pressing and pushbutton activation provides a productive, fatigue-free operation.

Specification:
1.Machine Type: Automatic, One Station
2.Platen Size: 16"*20"/16"*24"
                   (40*50cm/40*60cm)
3.Under Plate: Draw-out
4.Controller: GY-04 Digital Time & Temp. Control
5.Printable Articles: Up to 20mm Thickness
6.Air Compressor Required: Yes
7.Voltage: 120V/ 220V
8.Power: 2.5KW
9.Time Range: 0-999 sec.
10.Maximum Temp: 225 C
11.Temperature Accuracy: ±0.5%
12.Packing Size: 77*53*75cm
13.Gross Weight: 62kg(Wooden Package)

Heat Platen Test:
Each Signle Copper sheathed heating rod is tested before it is cast in an aluminum alloy or Mica Sheet. These heating rods are comparable to those found in industrial ovens that heat up quickly, work efficiently and last many years. With our industrial quality heat castings, you can get five years worry free warranty.

Quality Control on Finished Machine:
All heat presses are strictly tested under the following procedures before shipping out.
1) Turn on the machine, let it heating up to 200 degree Celsius.
2)Keep the temperature stay at 200 degree Celsius for at least 20 minutes

Package:
The machine is packed in wooden package and provide with manual.

Application
For T-shirt, Puzzle, Mouse Pad, Metal Board, Fridge Magnet, Coaster, Slipper, Bag, Cushion etc
