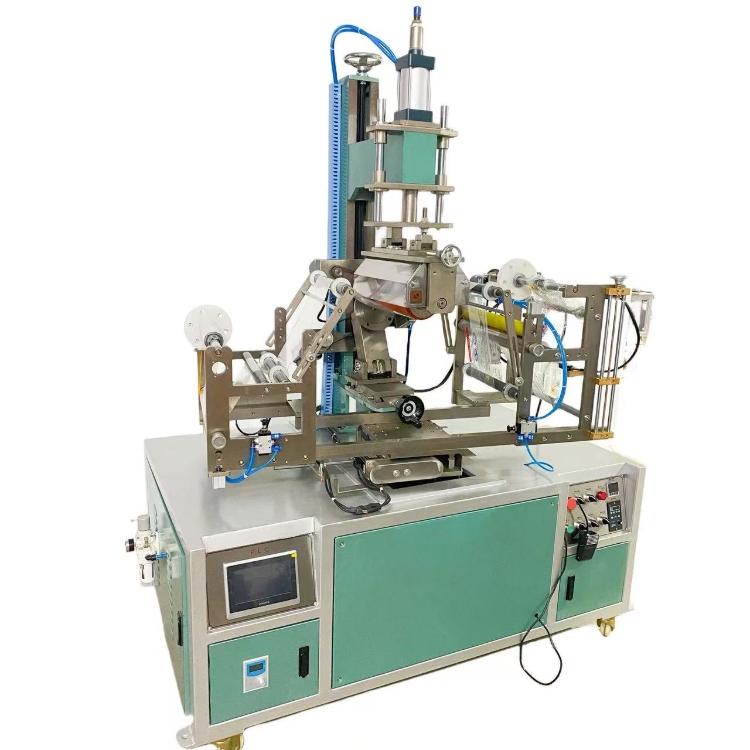

Plastic Bucket Heat Transfer Printing Machine

Plastic Bucket Heat Transfer Printing Machine
Model: EASY-GT300

Machine Parameter:
1, Voltage: 220V
2, Total Power: 5KW
3, Weight: 600kg
4, Max. Pressure: 600kg
5, Max. Printing Area (mm): Pattern height 280mm, bucket diameter 400mm
6, Temperature Control Range: Ambient temperature ~ 250°C adjustable
7, Machine Dimension (mm): 1600 × 1300 × 2300

Machine Features:
1. This machine adopts electronic cam three-axis synchronization.
2. Driven by servo motors.
3. PLC control with HMI operation.
4. Film rewinding adopts stepping motor and photoelectric eye positioning.
5. Adjustable film rewinding speed and main shaft speed.
6. Pneumatic drive for hot stamping pressure.
7. Five preset bucket type specifications with storage function.
8. Adjustable taper.
9. Equipped with magnetic powder tension control.

Spare Parts Brand List
No. Part Name Brand Origin：
1. Bearing Luoyang Mainland China
2. Temperature Controller Taisong Joint‑venture
5. Push Button Switch Schneider France
6. Photoelectric Sensor Fotek Taiwan,China
7. Film‑releasing Motor, Rubber Roller Motor Feiteng Mainland China
8. Lifting Cylinder Lanrui Zhejiang,China
9. Solenoid Valve Airtac Taiwan,China
10. Touch Screen / PLC Inovance Mainland China
12. Film‑winding Stepping Motor Zhikong Mainland China
13. Servo Motor Inovance Mainland China

Discription:
Paint bucket heat transfer printing machine for cylindrical plastic bucket, max printing height 280mm, bucket diameter up to 400mm, widely used for paint pail, chemical barrel, water bucket logo and pattern heat transfer.
