Product name:Oil Drum Heat Transfer Machine

Model Number: HTM-OD

Description:
Oil Drum Heat Transfer Machine

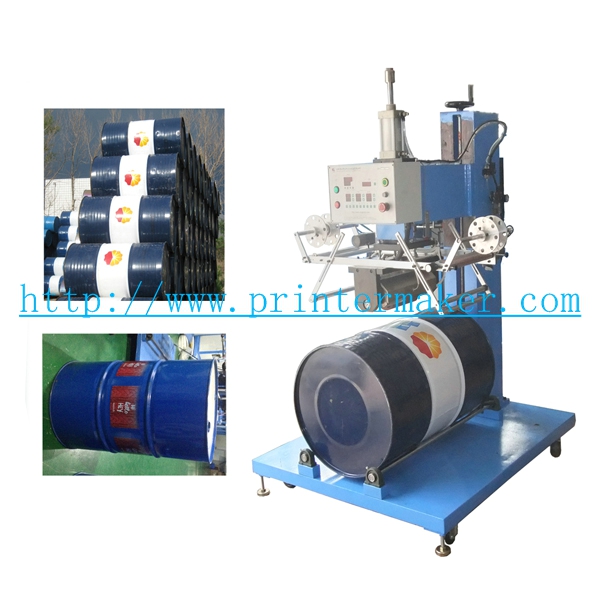

Oil Drum Heat Transfer Machine is special design for 200L round drum, super big size design for big size round objects, easy & simple operation, excellent heat transfer results, speed adjustable, so as the temperature, it can achieve all kinds of the heat transfer results.
Technical data:
Dimension:L1130*W1400*H1900mm
Heat transfer length:W250mm
Heating watt:1800W
Total Power: 2.0KW
Temperature rang: room temperature:0~300℃

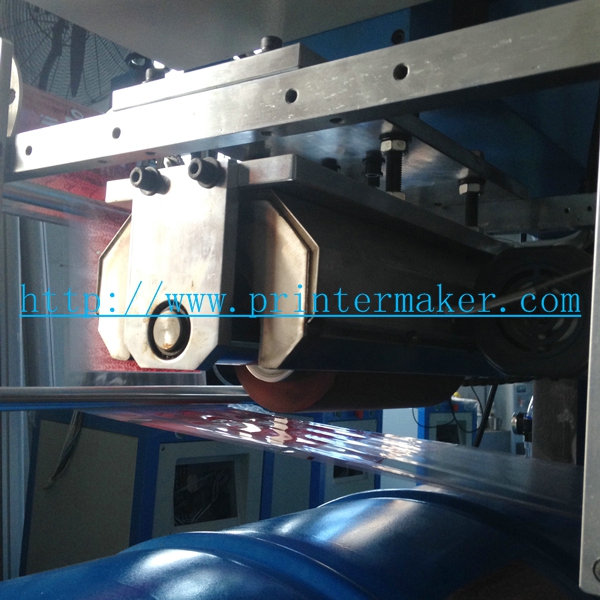

Printing way:  heat silicon roller
Air pressure require: 0.6~0.9Mpa(6~9bar)
Max stamping pressure:Max_300Kg
Power: 220V/50Hz
Net Weight: 200Kg
Application:

Suitable for 200L oil container printing, chemical container, etc

Oil Drum Heat Transfer MachineOil Drum Heat Transfer MachineOil Drum Heat Transfer Machine
