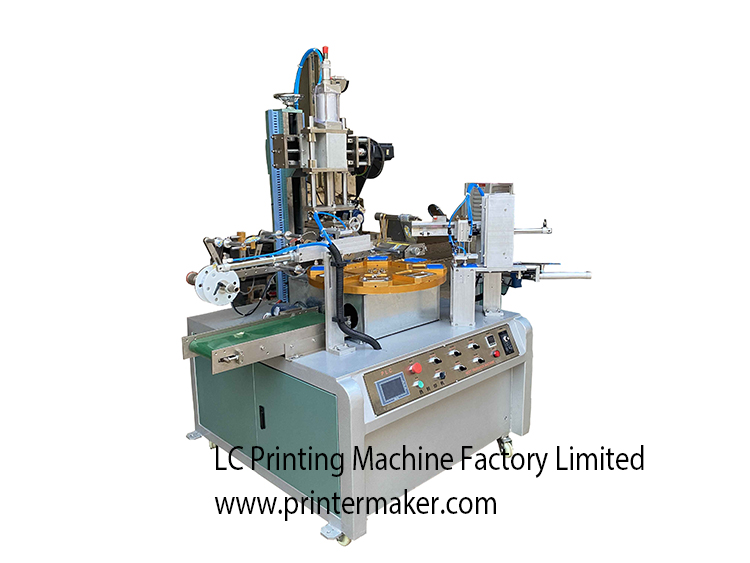

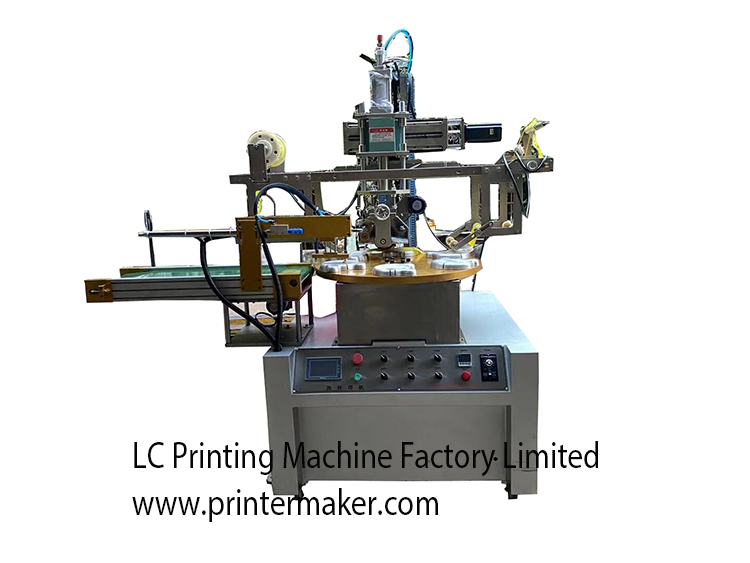

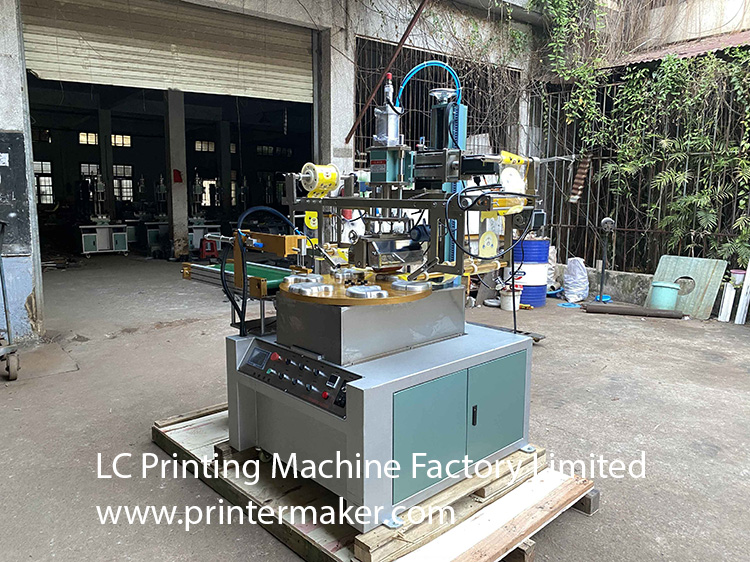

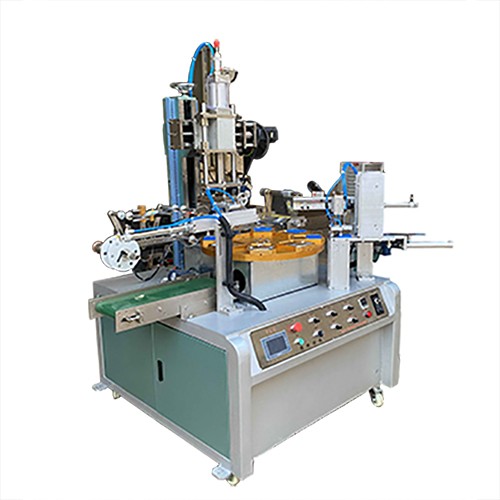

Flat Rotary Fully automatic heat transfer machine

  • Flat Rotary Fully automatic heat transfer machine
  • Flat Rotary Fully automatic heat transfer machine
  • Flat Rotary Fully automatic heat transfer machine
  • Model Number: AHT-6S
  • Product price: US$:negotiated
  • Category: Heat Transfer Machine
  • Views: 1473
  • Product Description:Flat Rotary Fully automatic heat transfer machine
  • PRODUCT DETAIL
  • Video
  • Packing Photo

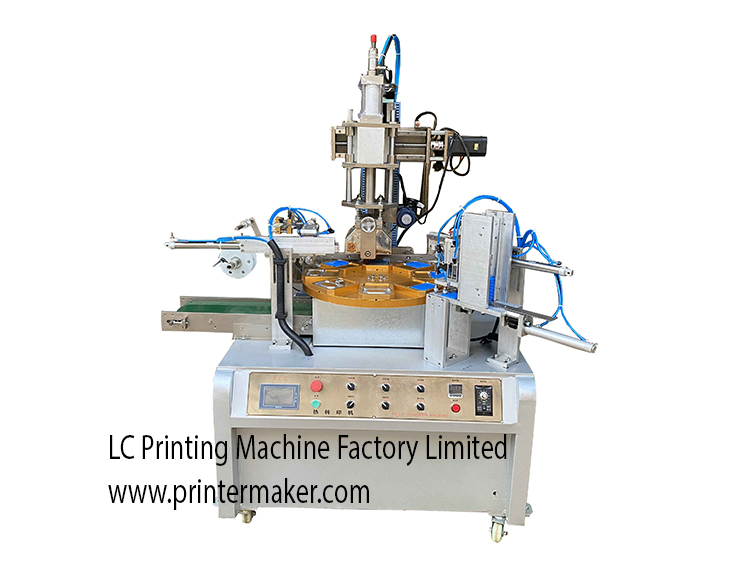

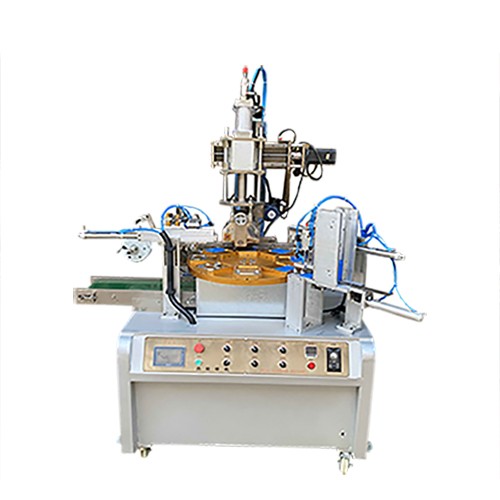

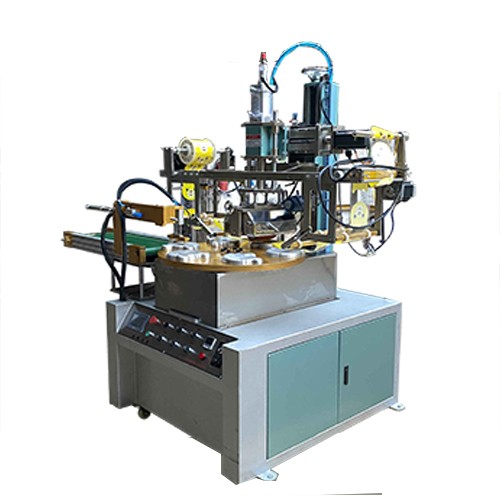

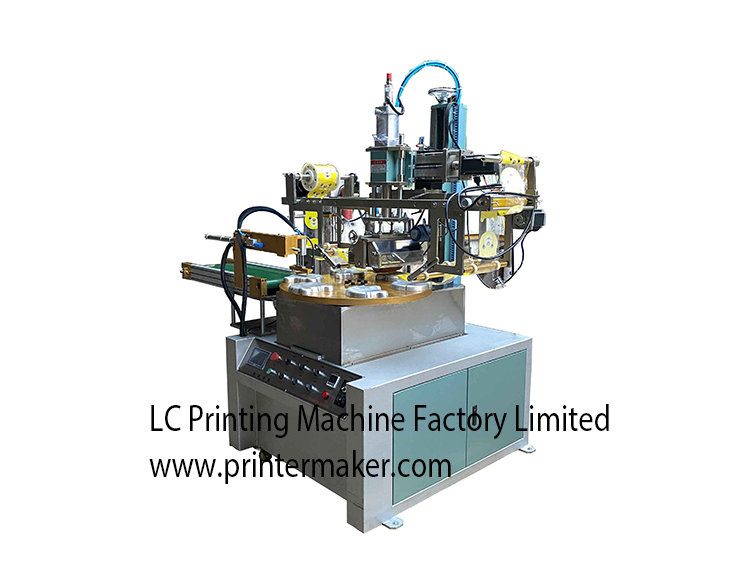

Product name:Flat Rotary Fully automatic heat transfer machine

Model Number: AHT-6S

Parameter:

1:Mechanical model: AHT-6S
2: Turntable size: 700mm diameter
3: Stroke of hot stamping head: 80mm (adjustable 50mm)
4: Hot stamping temperature: room temperature 0 ~ 300
5: Rated voltage: 220v60 / 50Hz
6: Hot stamping pressure range: 250-300kg
7: Heating power: 2000W
8: Overall power: 3800W
9: Air pressure: 5-7bar
10: Machine size: 1400 * 1000 * 2100mm
11: Machine weight: 800kg

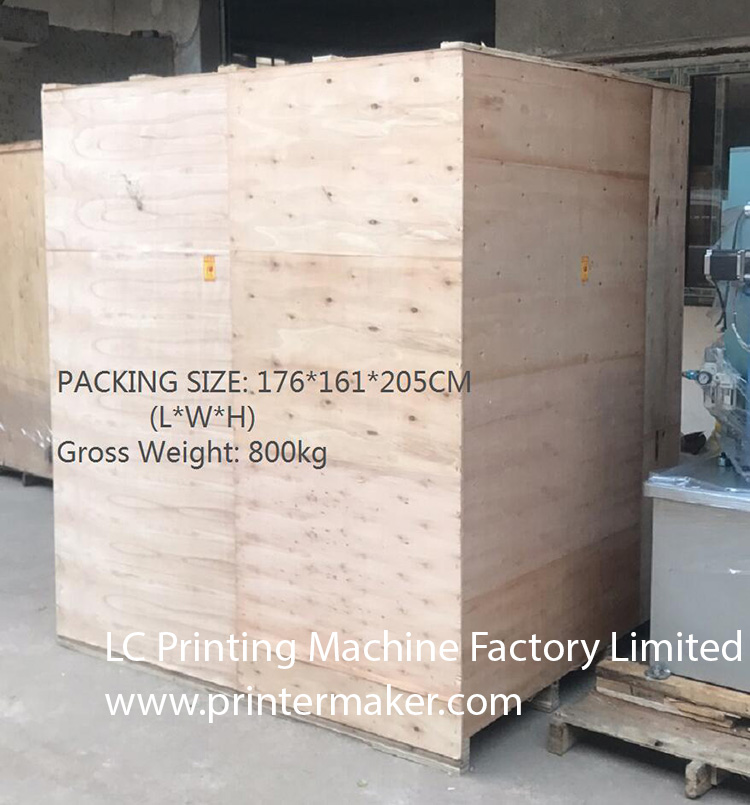

12: Packing size:176*161*205CM (L*W*H)


Machine features:

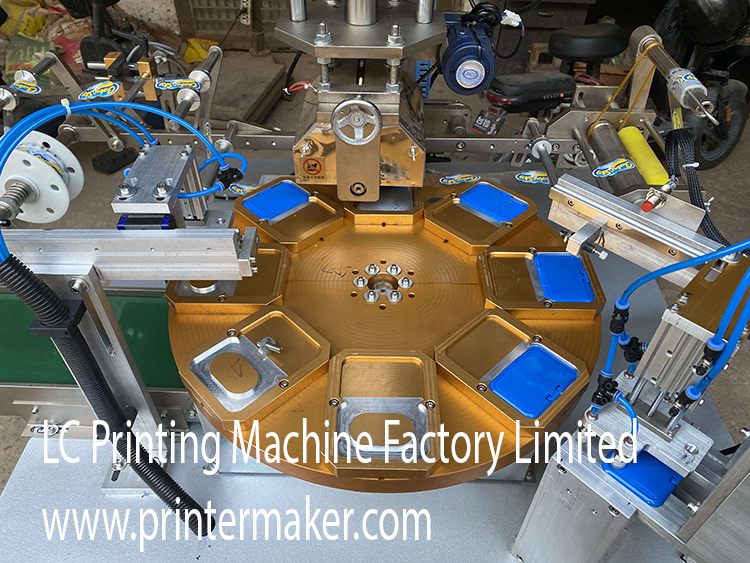

(1) Six stations spliter is adopted;

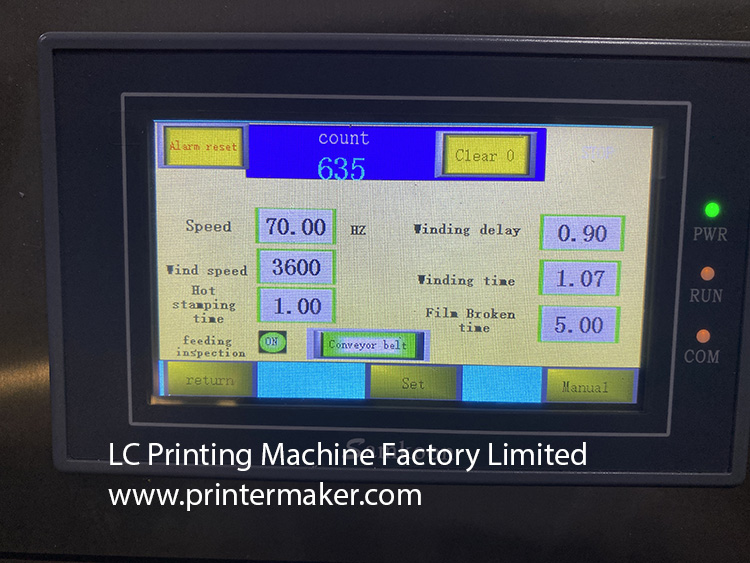

(2) Computer control, PLC touch screen operation panel, easy to operate;
(3) Hot stamping& heat transfer printing head pressure, temperature and speed can be adjusted;
(4) Built in self counting;

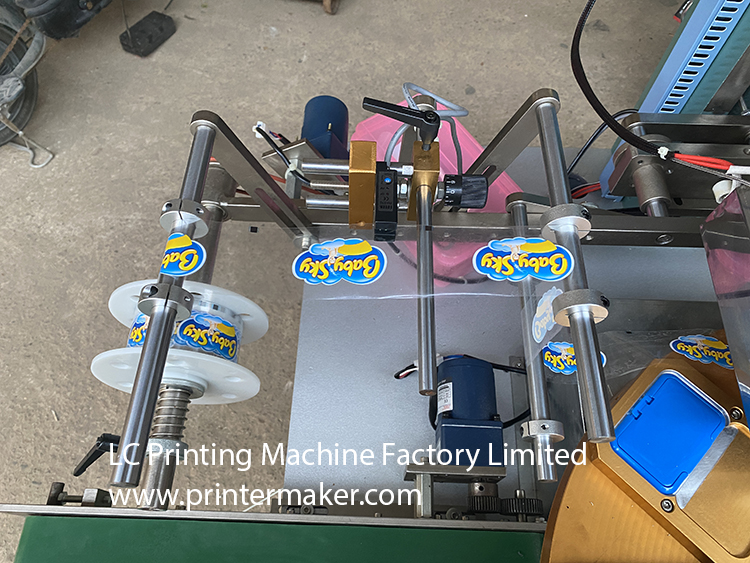

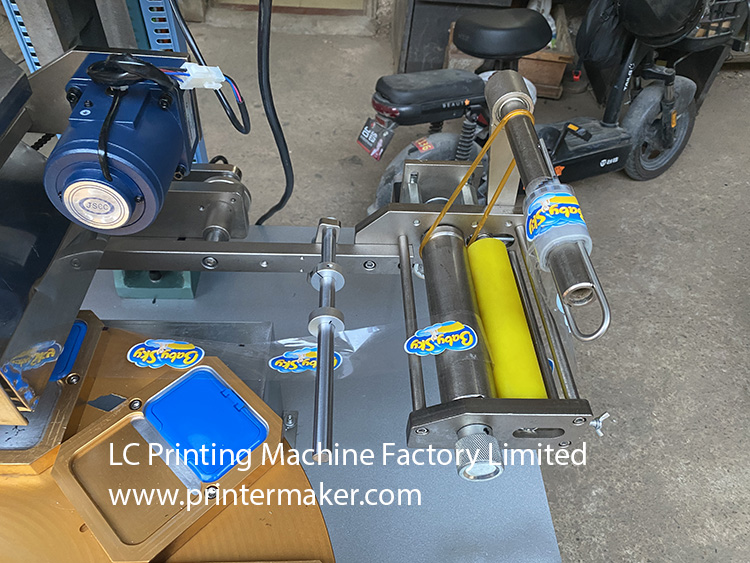

(5) Automatic film &foil winding and rewind and adjustable,
(6) The height of the hot stamping head is adjustable and the product height range is big;

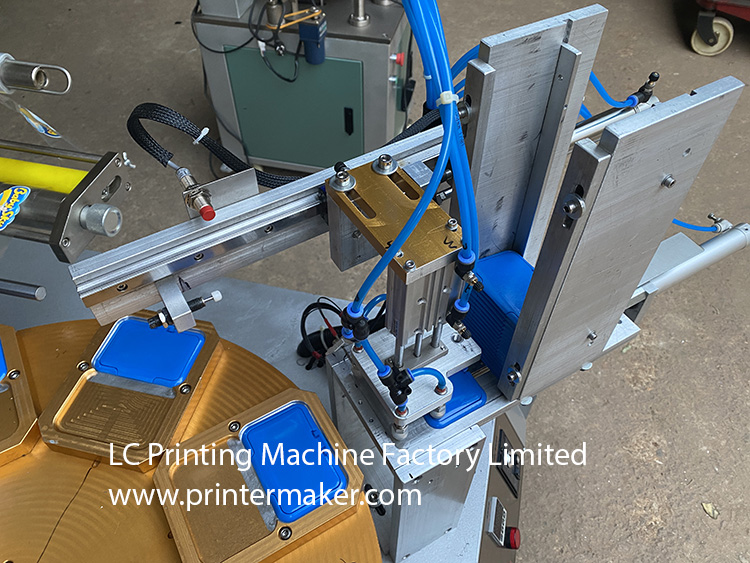

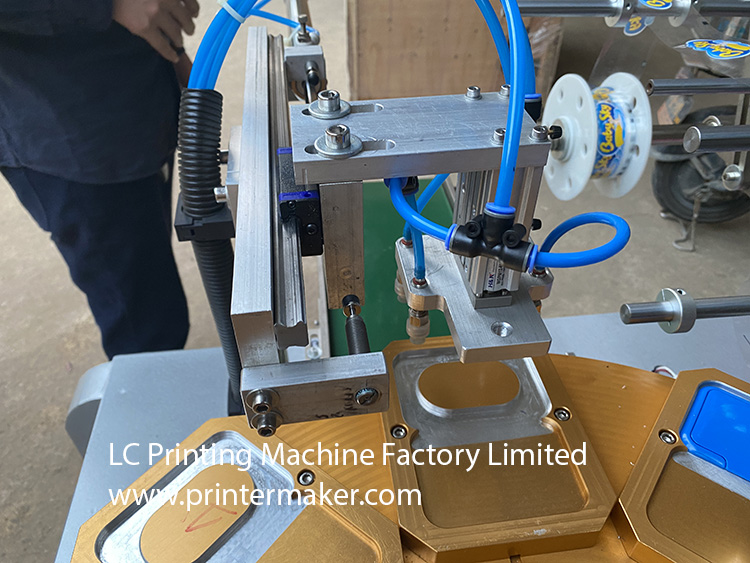

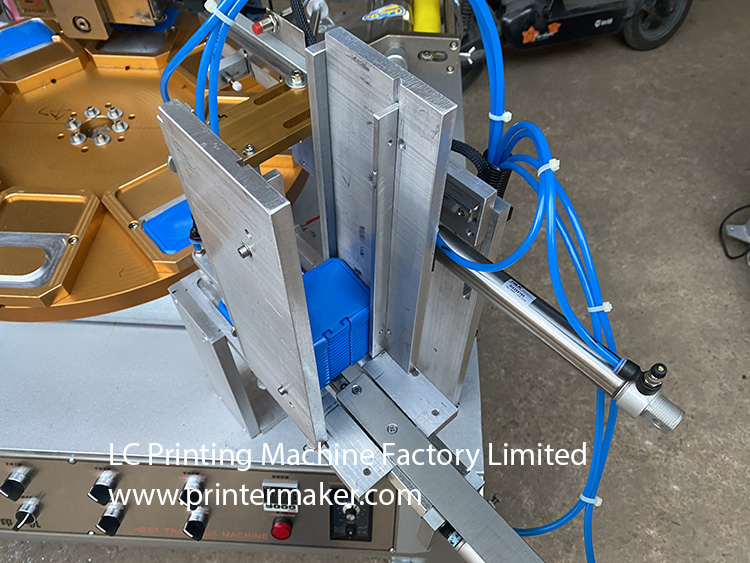

(7) Automatic feeding and robot unloading
Rotary automatic heat transfer machine , flat automatic heat transfer machine, plastic lids automatic heat transfer machine, caps top automatic hot stamping machine
