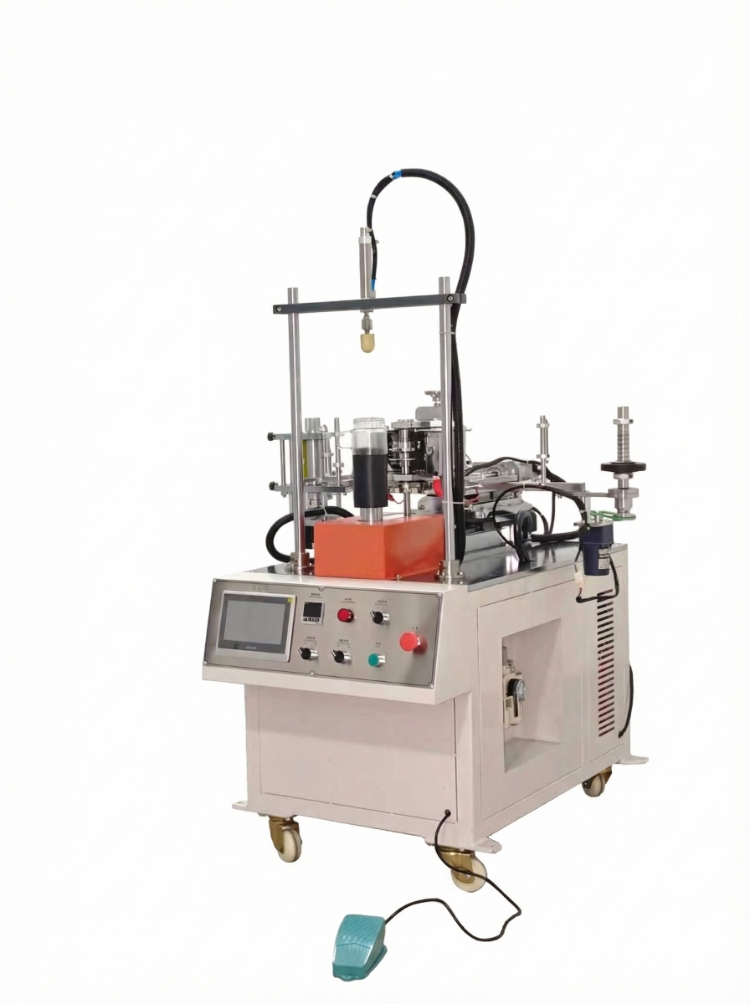

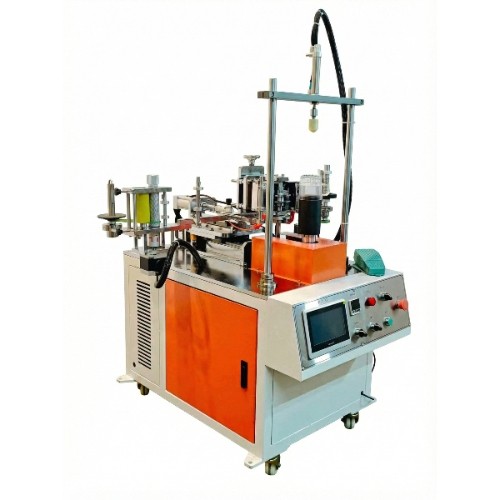

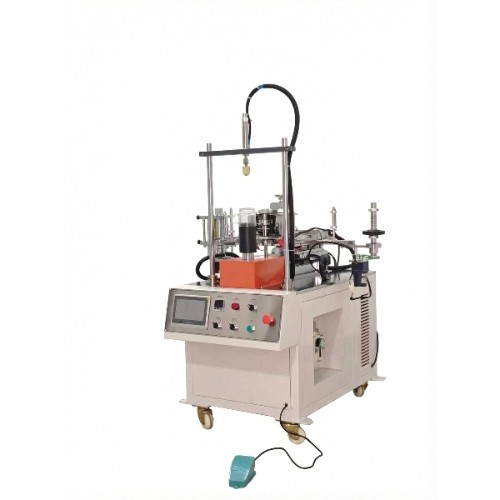

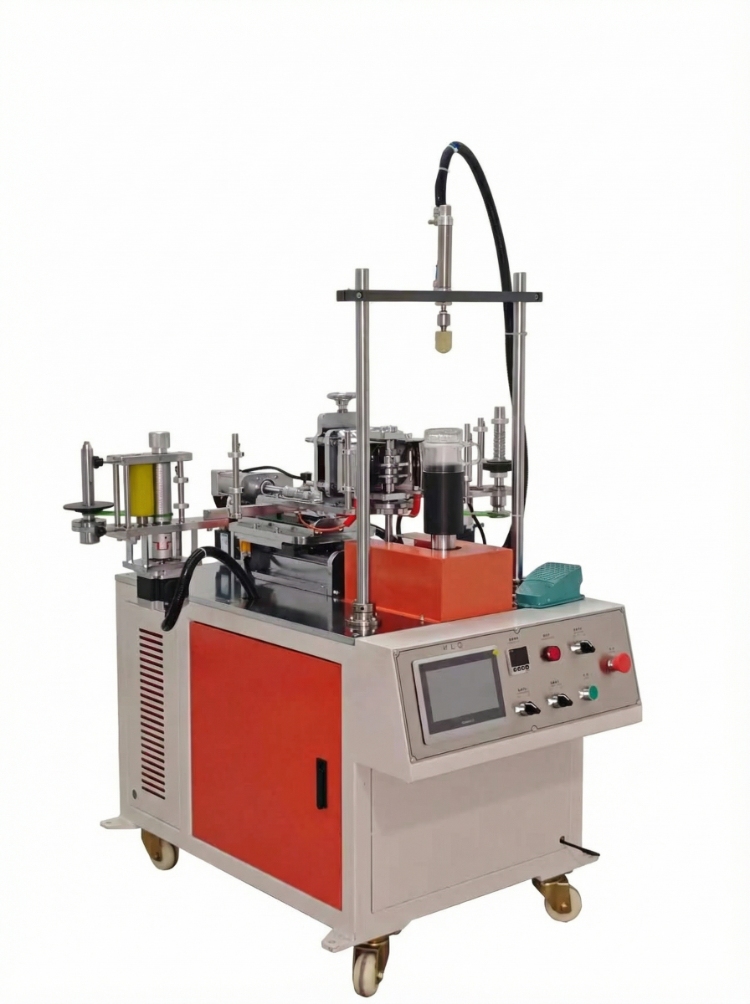

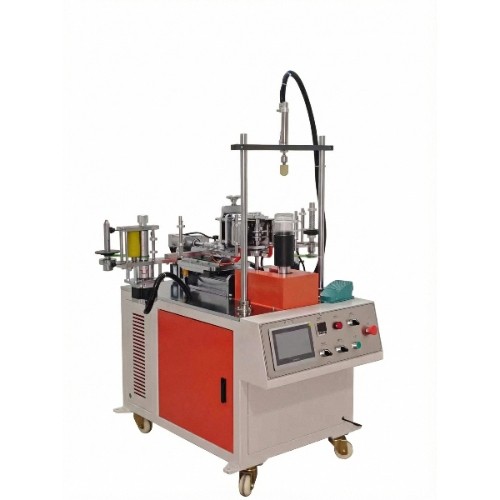

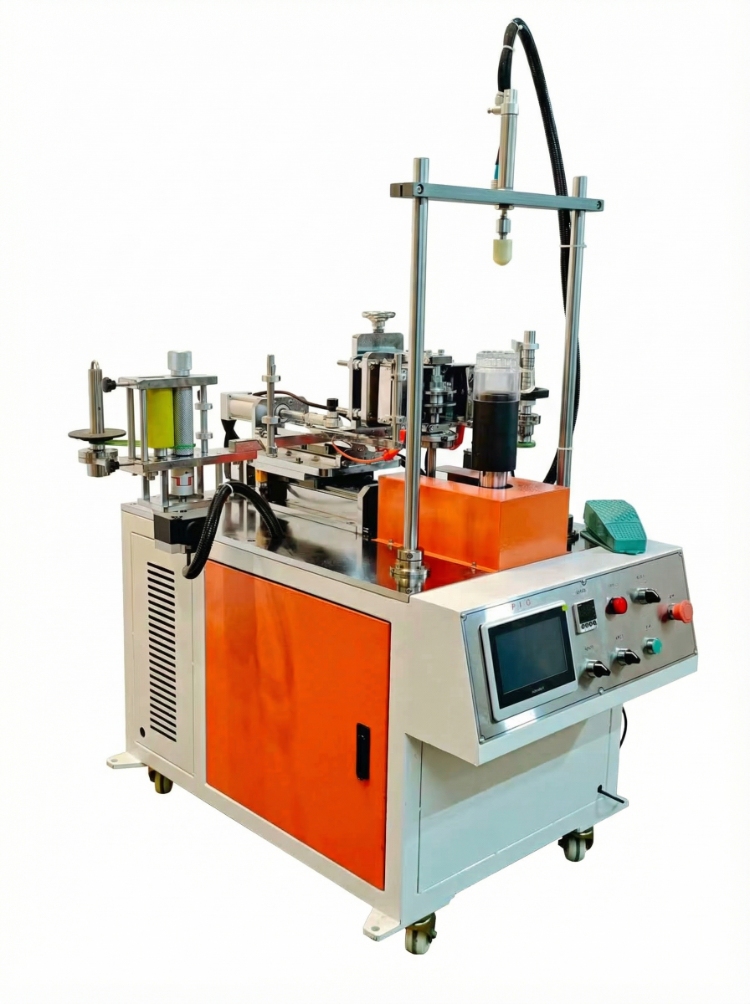

Multi functional Hot Stamping Machine with Dual-Axis Servo Control

Product name:Multi functional Hot Stamping Machine with Dual-Axis Servo Control

Model Number: H-100R-S

1.Usage:

This equipment is a semi-automatic side hot stamping machine with Dual-Axis Servo Control which is multi functional fitting on all those round, oval, square and cone shape bottles, mugs, cups, cosmetic lids, caps, plastic round parts, oval parts in 360 angle degree hot stamping machine. Through precise constant temperature control, constant tension feeding and high-rigidity servo stamping mechanism, it realizes one-time forming of patterns and texts, ensuring uniform coating, firm adhesion and no wire drawing on the edges.

2. Applicable:

• Maximum product outer diameter: Ø180 mm

• Product thickness: ≤ 60 mm (customizable)

• Applicable materials: ABS, PC, PMMA, PET, PS, wood, painted parts, etc.

• Hot stamping area: Product side walls and chamfers

3. Parameter :

1. Maximum processable outer diameter: Ø180 mm

2. Electric furnace (oven) size: 200 mm × 100 mm

3. Heating power: 1300 W (PID constant temperature control)

4. Temperature setting range: 0–250 ℃, accuracy ±2 ℃

5. Hot stamping rubber roller: Φ100 mm aluminum core high-temperature resistant silicone roller

6. Main pressure drive: 400 W Inovance servo motor + ball screw

7. Stroke: 75 mm, adjustable ≤50 mm

8. Tension foil unwinding motor: 6 W gear reduction motor (stepless speed regulation)

9. Film rewinding motor: Closed-loop stepper motor with encoder

10. Rubber roller drive: 15 W gear reduction motor

11. Fixture rotation: 750 W Inovance servo motor + precision one-stage reducer (output torque ≥30 N·m)

12. Clamping method: Manual loading and unloading + ejector cylinder compression

13. Control system: PLC program control + 7" touch-type HMI

14. Safety configuration: Emergency stop button, air switch, overcurrent/overtemperature protection

15. Power supply specification: AC 220 V ±10 %, 50 Hz, single-phase

16. Air source requirement: 0.4–0.6 MPa dry and clean compressed air

17. Machine dimensions (L×W×H): 1300 mm × 1100 mm × 1100 mm

18. Overall weight: ≈ 300 kg (reference)

19. Production capacity: 6–10 pieces/minute (for Ø100 mm products)

4. Key Components and Brands

• PLC: Inovance/Delta DVP series (expandable I/O module)

• HMI: 7" Weinview/Inovance color touch screen

• Main pressure servo: Inovance IS620P-04A 400 W

• Fixture rotation servo: Inovance IS620P-75A 750 W

• Film rewinding: Closed-loop motor

• Gear reduction motor: Feiteng

• Pneumatic components: Xingchen Pneumatic

• Sensors: Yangming

• Low-voltage electrical appliances: Schneider

5. Structure and Safety Design

• The servo stamping mechanism adopts linear guide + ball screw, with repeat positioning accuracy of ±0.1 mm

• Double-layer heat insulation in high-temperature area, equipped with anti-scald warning

• Emergency stop and foot-pedal two-hand interlock

• The control cabinet is equipped with overtemperature, overcurrent and leakage protection

6. Installation and Operating Environment

• Double-layer heat insulation in high-temperature area, equipped with anti-scald warning

• Emergency stop and foot-pedal two-hand interlock

• The control cabinet is equipped with overtemperature, overcurrent and leakage protection

• Ambient temperature: 10–35 ℃, humidity ≤85%

• Floor bearing capacity: ≥500 kg/m², levelness ≤2 mm/m

• Power supply: 220 V 30 A independent circuit

• Air source: 0.5 MPa, 8 mm pipe connection

• It is recommended to equip with ventilation ≥300 m³/h
