  • Product Description:Laser Imagesetter
  • PRODUCT DETAIL

Product name:Laser Imagesetter

Model Number: M-310SC

Description:
Laser Imagesetter
Expert of output the film for pad printing; Small output dimension is more suitable for pad printing factory and small batch printing task.
M Series Laser imagesetter is designed for direct printing users, which is characterized by being flexible and easy to use.
This series adopt semiconductor lasers, which has a 100,000 hours long working life. And with image control technology, even if being amplified a hundred times, it can still guarantee a clear and sharp spot edge.This series of equipment also include RIP, which can directly output data from almost all the design software on PC & Mac, e.g. CorelDRAW, Illustrator, Photoshop, AutoCAD, FreeHand, etc.
Price Terms:FOB GuangZhou
Payment Terms:TT
Packing:Wooden case
Lead Time:Within 5 days
Standards Certificate:ISO9001-2000
Power Supply:220V/50HZ
Colour Painted:Blue
Specifications:

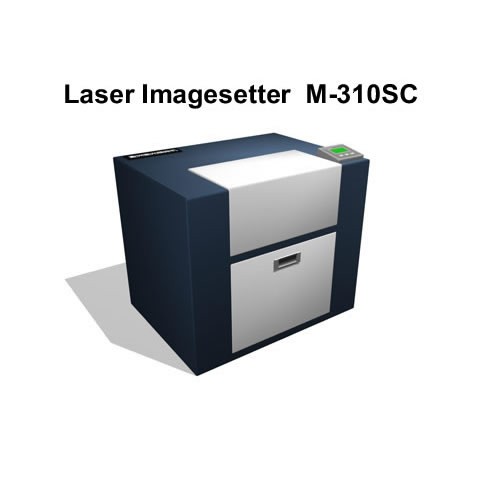

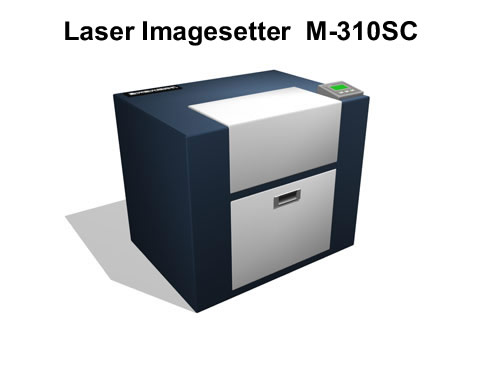

M-310SC
1. Max exports width: 310mm*Unlimited;12in.*Unlimited
2. Output speed: 85mm/min;
3. Resolution ratio: 3000DPI;
4. Exposure Light: Semiconductor Laser
5. Scan style: step;
6. Repetition accuracy: 0.01mm;
7. Film: Red laser phototypography film;
8. Joint : USB 2.0;
9. Works style: semi-auto operation in darkness room;
10.operation environment : temperature10-30,humidity:20-80%.
11.Spot size:8μm
12.Dimension(L*W*H):660*500*550
Application:High-precision screen printing such as hardware, watches,pad printing, shoe-making, signage,etc.

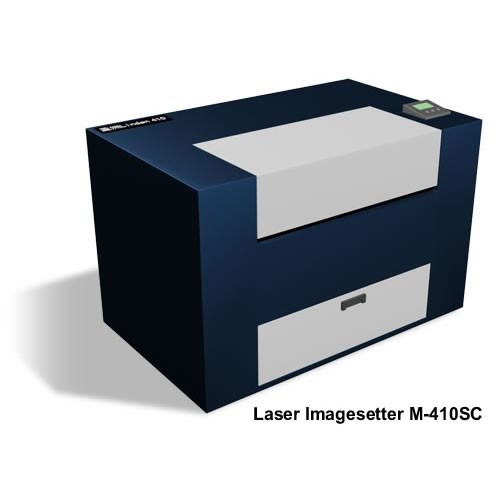

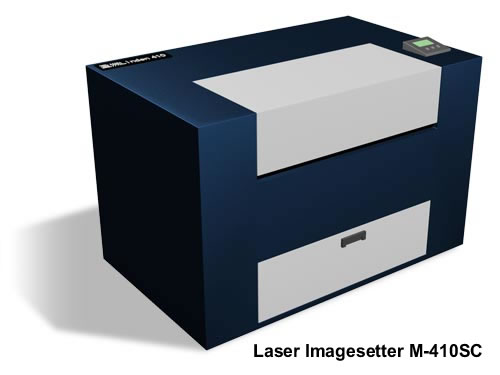

M-410SC
1. Max exports width: 410mm*Unlimited;16in.*Unlimited
2. Output speed: 80mm/min;
3. Resolution ratio: 3000DPI;
4. Exposure Light: Semiconductor Laser
5. Scan style: step;
6. Repetition accuracy: 0.01mm;
7. Film: Red laser phototypography film;
8. Joint : USB 2.0;
9. Works style: semi-auto operation in darkness room;
10.operation environment : temperature10-30,humidity:20-80%.
11.Spot size:8μm
12.Dimension(L*W*H):800*500*550
Application:High-precision screen printing such as hardware, watches,pad printing, shoe-making, signage,etc.

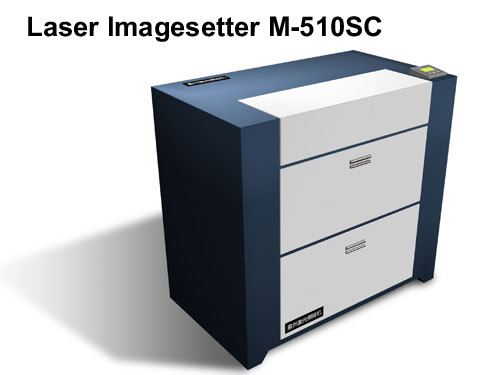

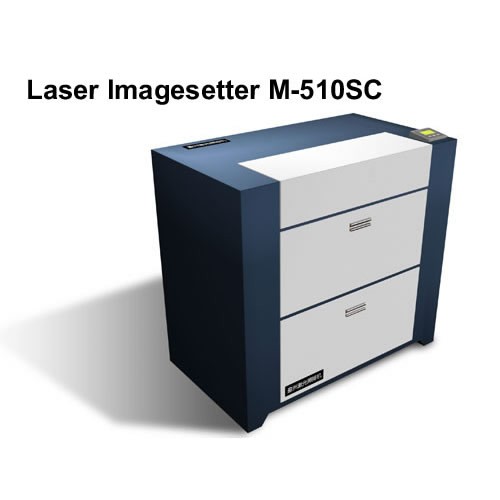

M-510SC
1. Max exports width: 510mm*Unlimited;20in.*Unlimited
2. Output speed: 75mm/min;
3. Resolution ratio: 3000DPI;
4. Exposure Light: Semiconductor Laser
5. Scan style: step;
6. Repetition accuracy: 0.02mm;
7. Film: Red laser phototypography film;
8. Joint : USB 2.0;
9. Works style: semi-auto operation in darkness room;
10.operation environment : temperature10-30,humidity:20-80%.
11.Spot size:8μm
12.Dimension(L*W*H):900*600*1000
Application:Screen printing such as pattern printing, ceramic decal paper and package
M-660SC
1. Max exports width: 660mm*Unlimited;26in.*Unlimited
2. Output speed: 100mm/min;
3. Resolution ratio: 1800DPI;
4. Exposure Light: Semiconductor Laser
5. Scan style: step;
6. Repetition accuracy: 0.02mm;
7. Film: Red laser phototypography film;
8. Joint : USB 2.0;
9. Works style: semi-auto operation in darkness room;
10.operation environment : temperature10-30,humidity:20-80%.
11.Spot size:14μm
12.Dimension(L*W*H):1050*600*1000mm
Application:Large width screen printing such as pattern printing and dye printing
Advantages:
1. semiconductor luminescence lamp-house;
2. Flat operation mode;
3. Expert image controlling technology;
4. film store box aggregated storing, measuring ,cutting,feeding function installed;
5. RIP 4.0 sent with machine, used both PC AND MAC system;
6. design for pad film ouput.
Machine Fittings:
1.RIP Document for Output
2.Safe Light of dark room;
3.Output Line 5 meters;
4.Develop powder and Fixation powder 1 bag
Package List:
Package Dimension: 750×550×450mm;
Gross weight: 40Kg.
Testing:
1.Computer
2.Dark troom;

3.Devellopping, Fixation and washing Process
