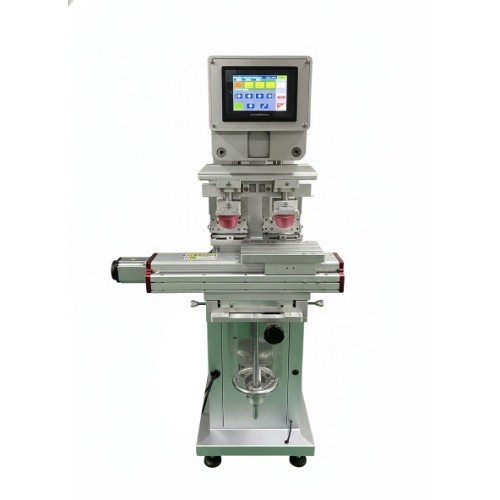

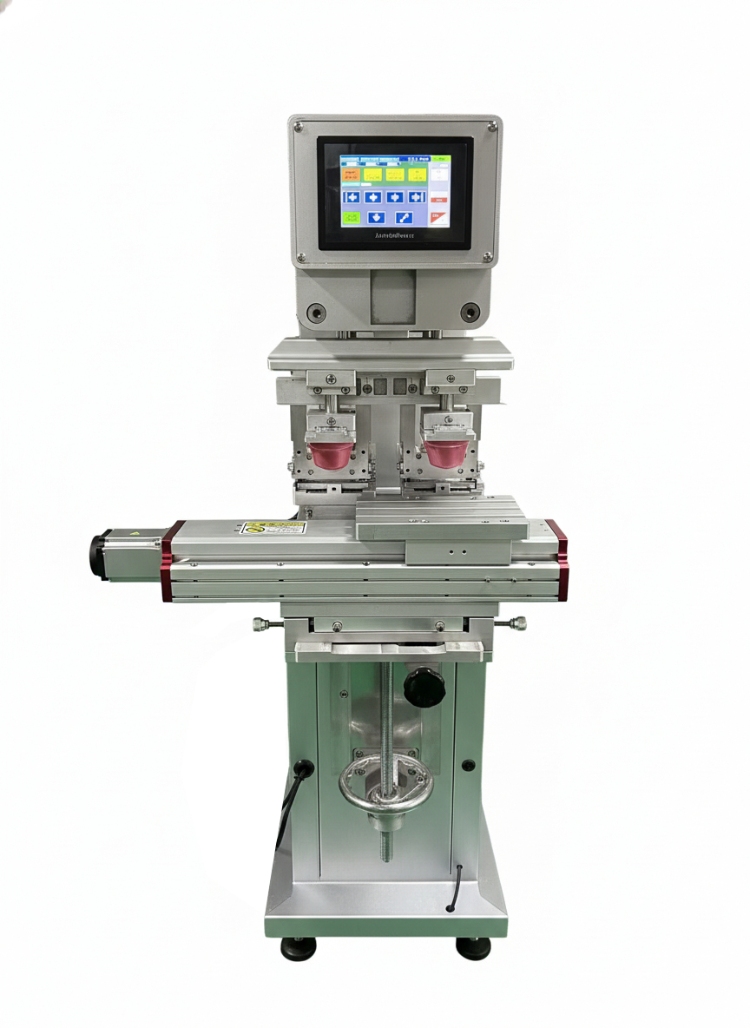

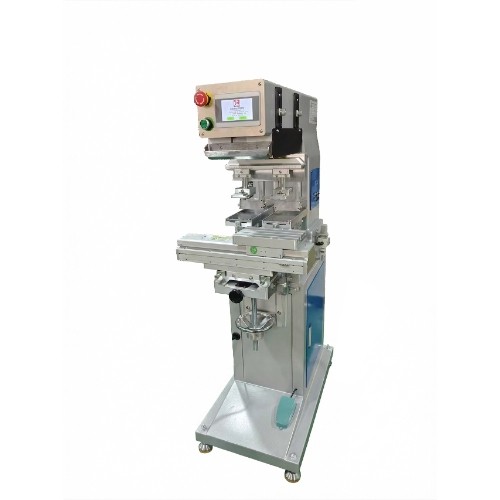

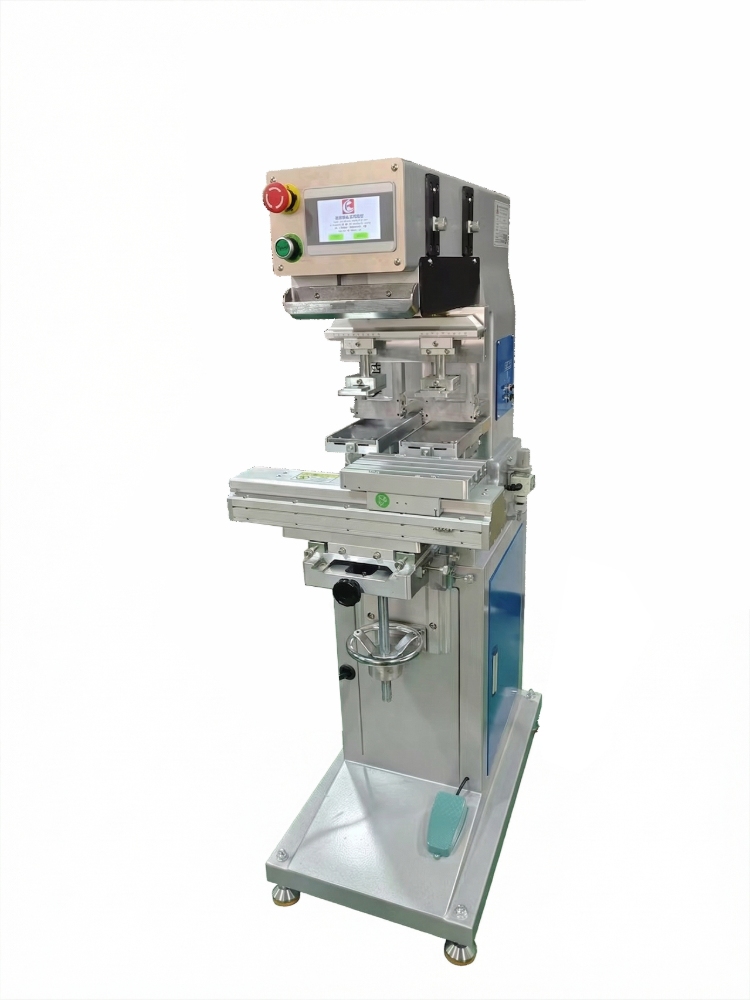

2 Colors Ink Cup Tampo Printer with Servo Shuttle Table(PLC)

Product name:2 Colors Ink Cup Tampo Printer with Servo Shuttle Table(PLC)

Model Number: EP2S-150TS

Description:
2 Color Ink Cup Tampo Printing Machine with Servo Shuttle Working Table is upgraded model which is with the advantages of environmental protection, safety operation, parameter and control button could be set and adjusted directly throught the touch screen control.  it is comply with CE Starderand, ease operateing, to consume ink that frugal. Help to reduce any solvents evaporating from the air exposusing and also helps to keep the ink at a constant temperature.
THIS ITEM PAD Printer to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, pen, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.
1. Controlled by PLC, easy operation, running stably and accurately.
2. PLC Touch Screen Control;
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Rubber pad up/down stroke &speed control by Touch Screen
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the inkfrom drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Servo Working table for assuring perfect working stability and overcolor print precision.

Large Printing Size Ink Cup Pad Printing Machine (PLC&Servo Table Shuttle)
Specifications:
1. Model No:EP2S-150TS
2. Printing Colors: 2
3. Plate area: 150*300mm
4. Max Printing area: 120*130mm Ink Cup Diameter: 130mm/140mm
5. Max printing speed: 1400PCS/H
6. Printing Wattage: 220V/ 50Hz 110V/60Hz
7. Air pressure: 0.4-0.6Mpa
8. Machine size: 100*70*150cm
9. Packing Size:110*80*165cm

9. Packing Size:100*60*160cm

Machine fitting:
1. Two pcs steel plate
2. Two pcs rubber pad
3. Work box

4. English operating instruction
