LC Printing Machine Factory Limited

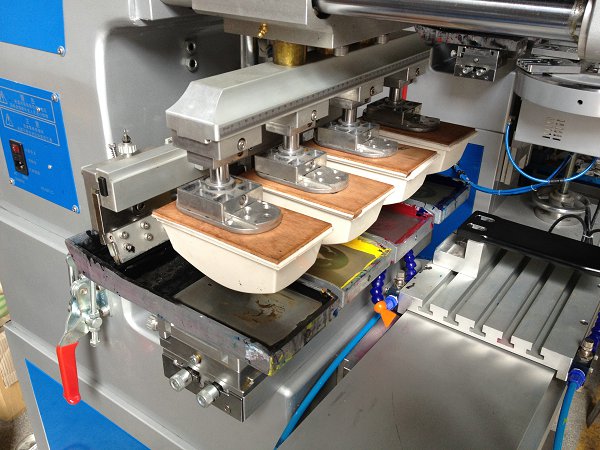

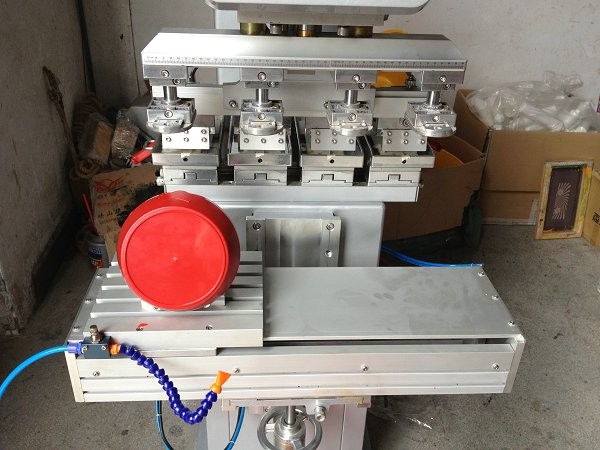

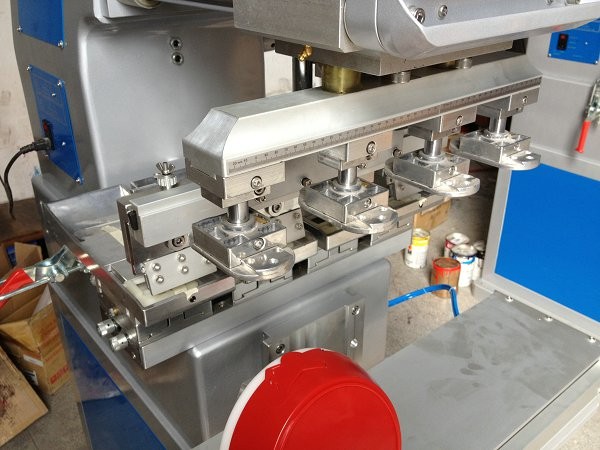

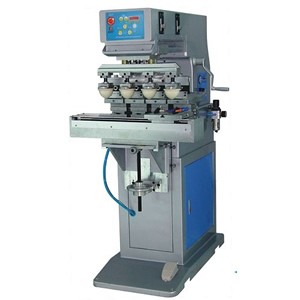

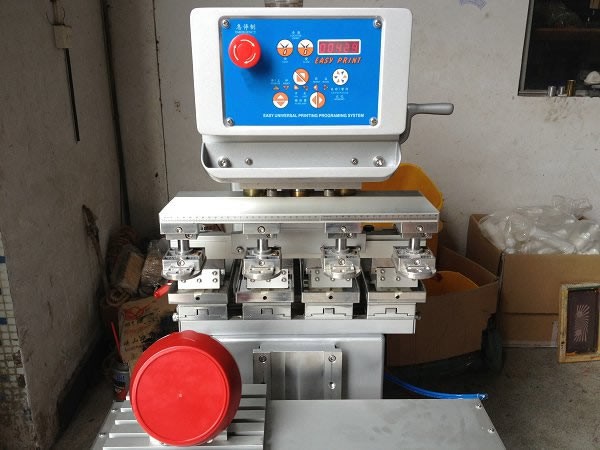

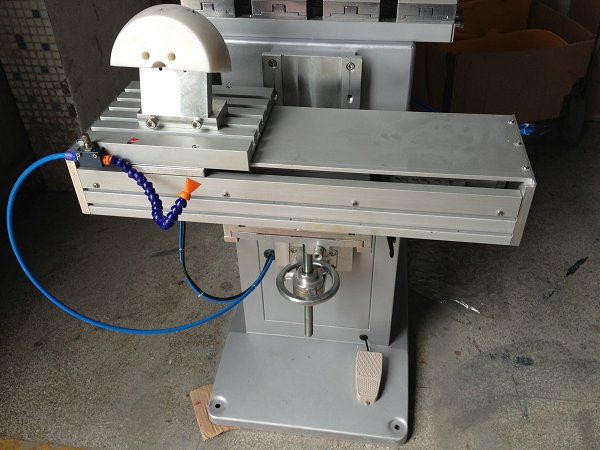

Four Color Pad Printing Machine With Shuttle

  • Four Color Pad Printing Machine With Shuttle
  • Four Color Pad Printing Machine With Shuttle
  • Four Color Pad Printing Machine With Shuttle
  • Four Color Pad Printing Machine With Shuttle
  • PRODUCT DETAIL

Product name:Four Color Pad Printing Machine With Shuttle

Model Number: M4-S

More large area pad printing ; With shuttle work table and more precision overprint; Four colours pad printing per time; Coin aluminum machine structure for running stabilization.opened inkwell to provide ink for operation simply.

Price Terms:FOB GuangZhou
Payment Terms:T/T. LC
Packing:Wooden case
Lead Time:Within 4 days
Standards Certificate:ISO9001-2000
Power Supply:110/220v 60/50Hz -1 phase

Specifications:
M4/S
Four colours pad printer with shuttle table
1.Max. plate size: 100×200mm.
2.Max. worktable area: 170×200mm.
3.Max. printing area: 85×170mm.
4.Max. printing speed: 720pcs/h.
5.Printable color:4
6.Shuttle stoke: 125mm.
M4/200L
Four colours pad printer with shuttle table (Large Ink Tray)
1.Max. plate size: 150×200mm.
2.Max. worktable area: 220×200mm.
3.Max. printing area: 135×170mm.
4.Max. printing speed: 720pcs/h.
5.Printable color:4
6.Shuttle stoke: 153mm.


Advantages:
1.Total micro computer controlled operation;
2.Auto four digit counter built-in;
3.Ink covering by ink roller;
4.Coin aluminium structure which is sturdy
5.Independent pad stroke and speed control;
6.Printing speed adjustable to meet with different needs;
7."Inking twice, printing once" to get better ink covering;

Machine Fittings:
1. Four plates,
2. Four pads
3. Two blades
4. A tool box.

Package List:
1. Package dimension:125*85*165mm
2. Gross weight: 210kg

Ship Date:
By sea:
within 30 days after receive T/T Or LC.

Testing:Please provide:
1. 110V or 220V power supply.
2. 5-7 bar compress air.
3. Etching plate 4 pcs.
4. A jig 1pcs.
5. 5-10 pcs product samples
Four Color Pad Printing Machine With Shuttle
Four Color Pad Printing Machine With Shuttle
