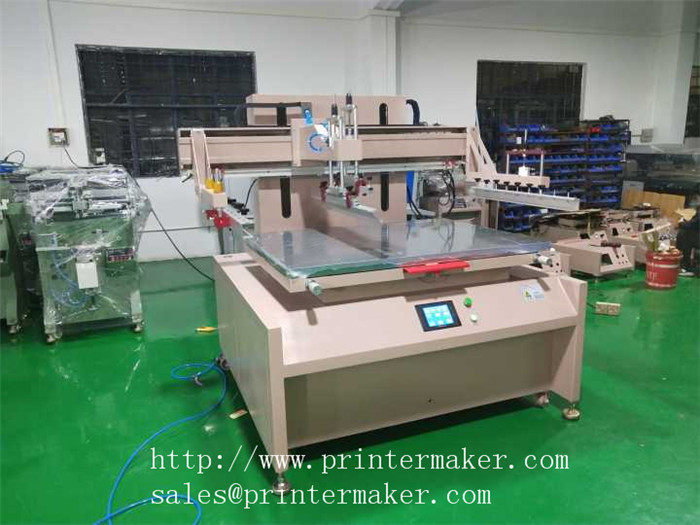

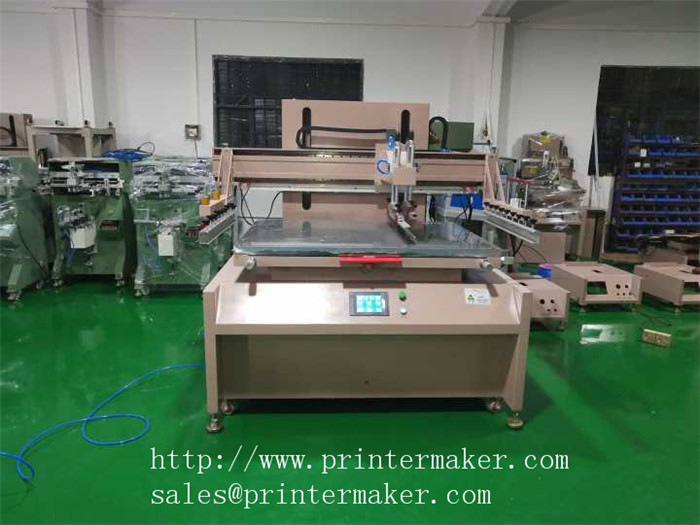

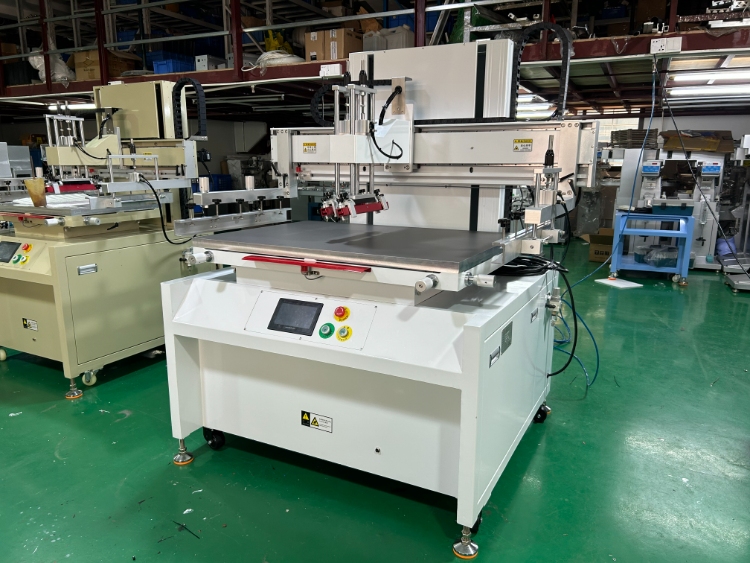

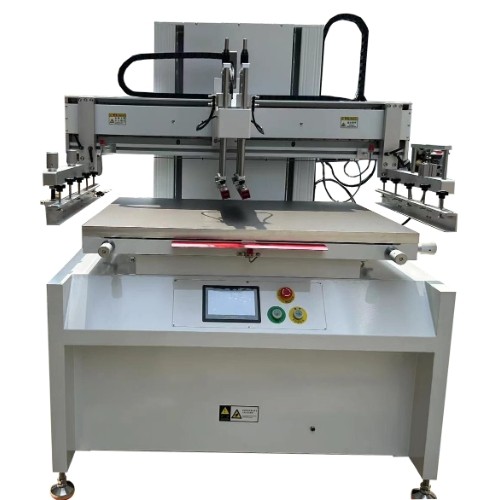

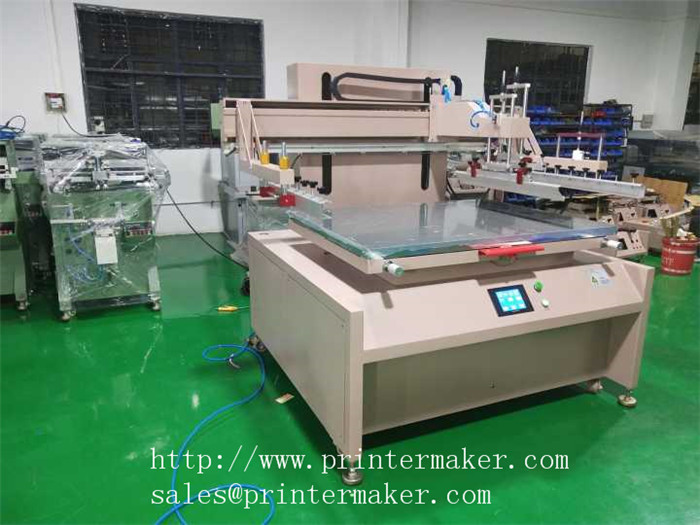

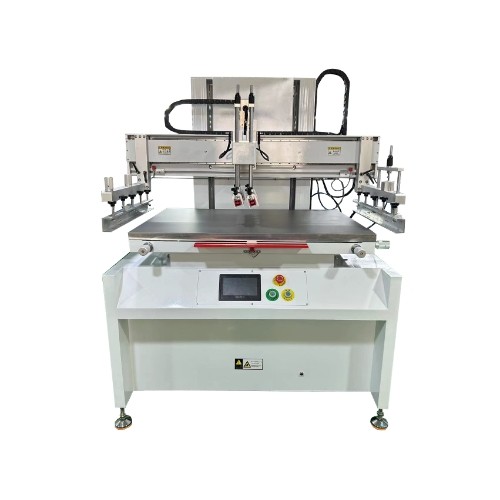

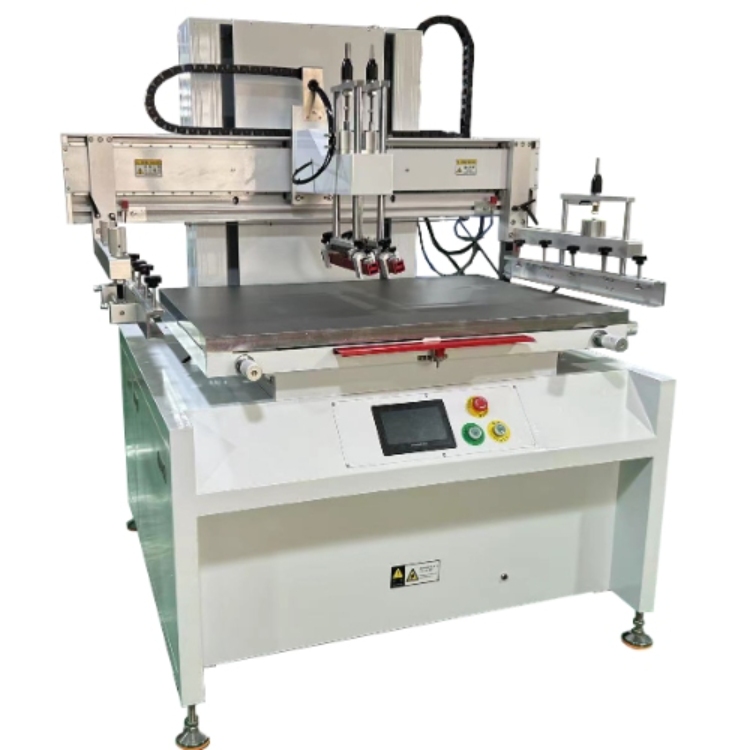

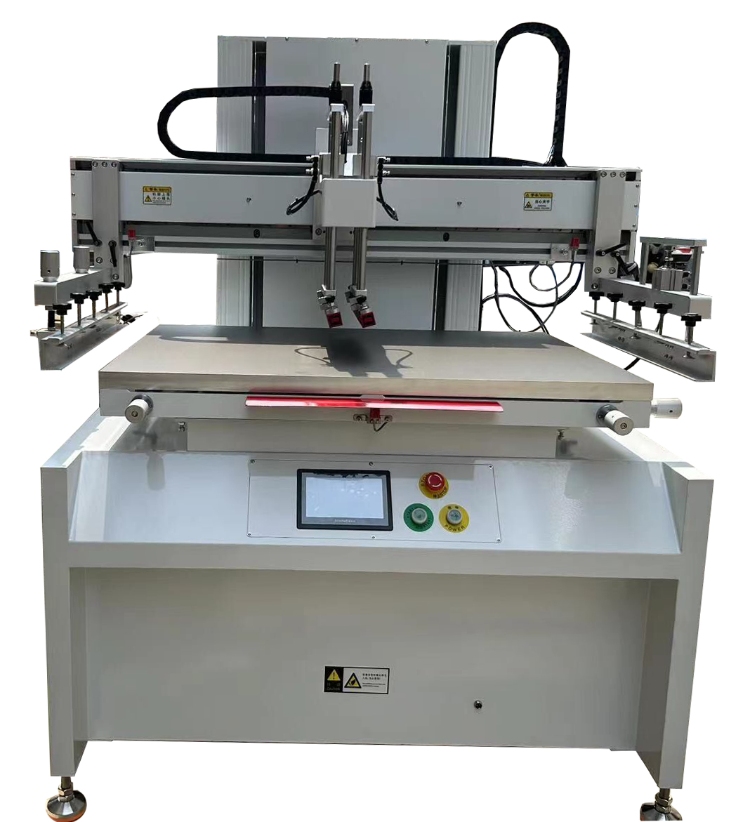

Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor

  • Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor
  • Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor
  • Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor
  • Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor
  • Model Number: SP-80110PLC
  • Category: Flat Bed Screen Printing Machine
  • Views: 341
  • Product Description:Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor
  • PRODUCT DETAIL

Product name:Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor

Model Number: SP-80110PLC

Description:

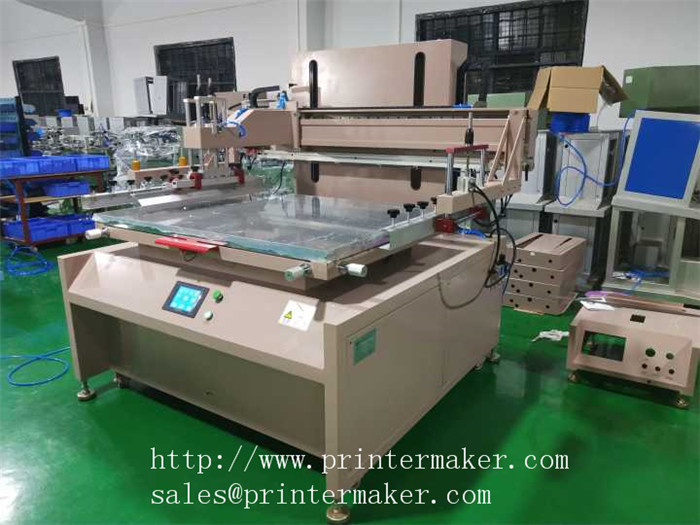

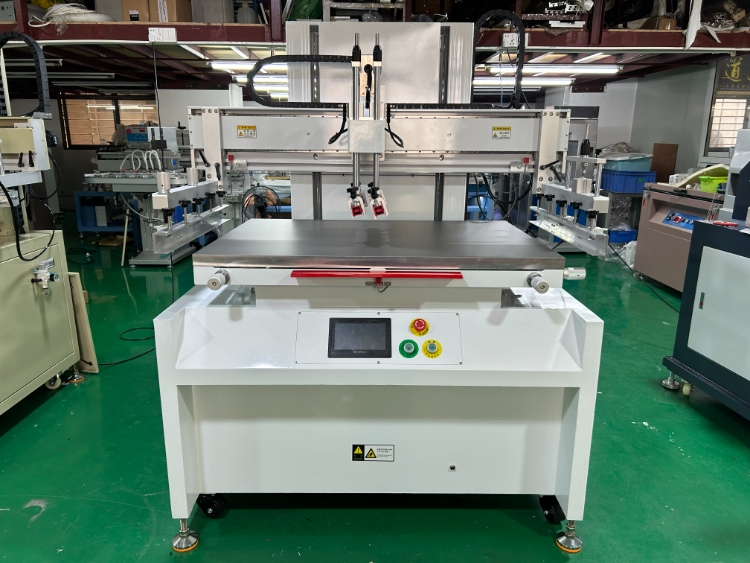

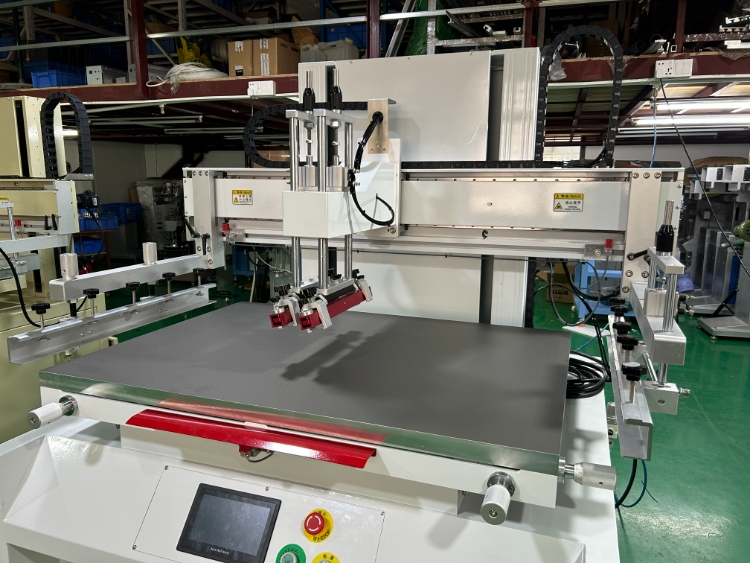

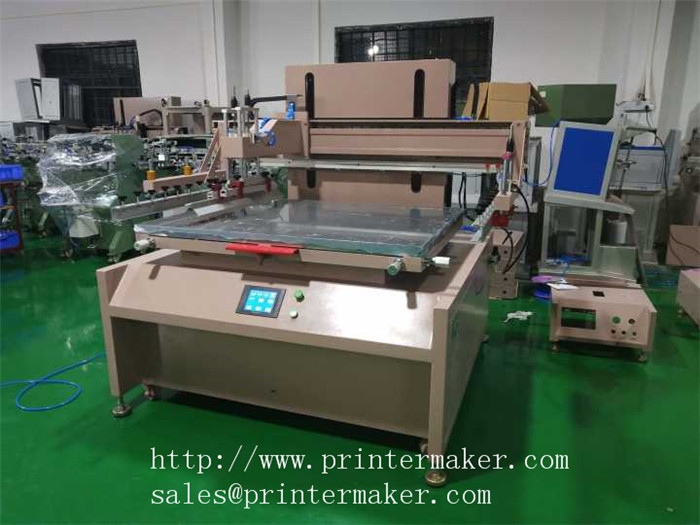

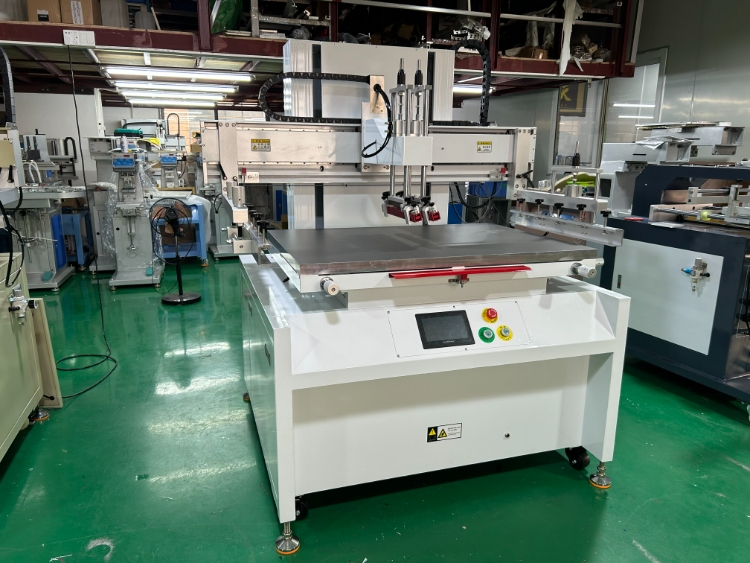

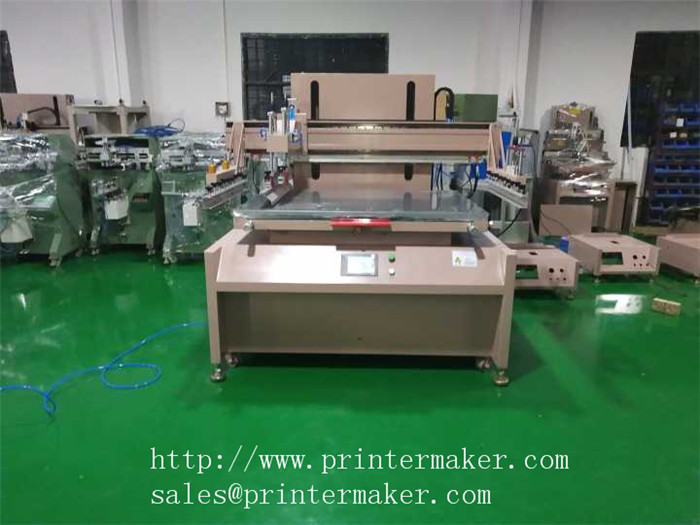

Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor

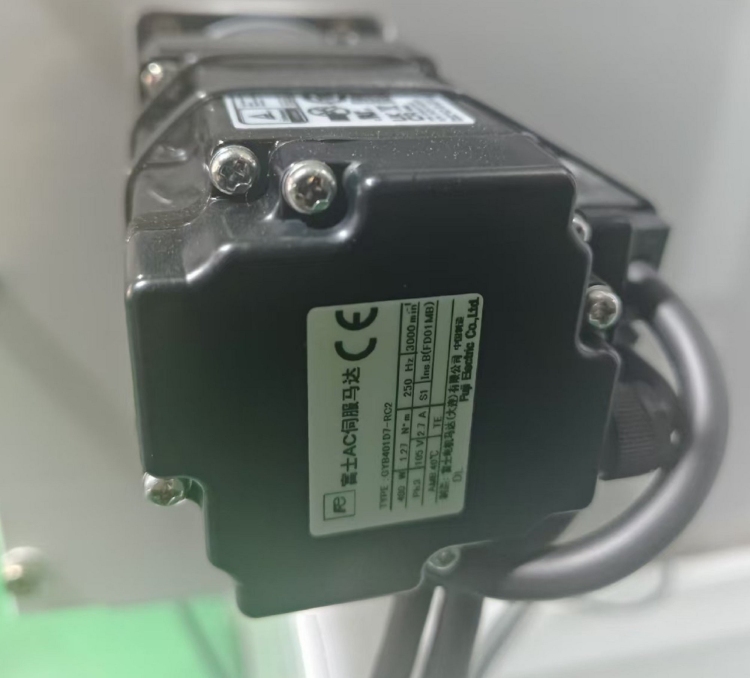

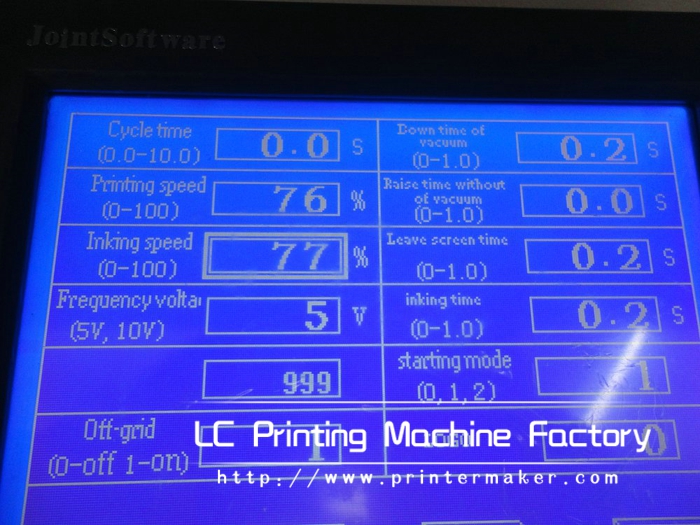

Servo Motor, Omron PLC, SMC Cylinder ,Import Motor
Model: SP-80110PLC
1. Thickness of printing matter: 0-80mm
2. Size of printing table:800×1100mm
3. Max Printing area:700×1000mm
4. Max Stroke of up-and-down frame:160mm
5. Max. printing speed:1500pcs/hour
6. Air pressure:6 Bar
7. Power voltage: AC 380V (because of the electric lifting table, we can change 110V or 220V)
8. Power consumption:50 W
9. Machine dimension:1100×950×1550mm
10.Power Supply︰ 220v/110V/50/60hz 1 PHASE
Model:SP-100130-PLC
1. Thickness of printing matter: 0-80mm
2. Size of printing table:1000×1300mm
3. Max Printing area:900×1200mm
4. Max Stroke of up-and-down frame:160mm
5. Max. printing speed:900pcs/hour
6. Air pressure:6 Bar
7. Power voltage: AC 380V
8. Power consumption:3.5KW 9: Machine size:196*185*140CM
Model:SP-130190-PLC
1. Thickness of printing matter: 0-80mm
2. Size of printing table:1300×1900mm
3. Max Printing area:1200×1800mm
4. Max Stroke of up-and-down frame:160mm
5. Max. printing speed:800pcs/hour
6. Air pressure:6 Bar
7. Power voltage: AC 380V

8. Power consumption:4.5KW 9: Machine size:225*215*140CM

Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor

Fully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo MotorFully Electrical Driven Flat Bed Screen Printer With PLC Control and Servo Motor
