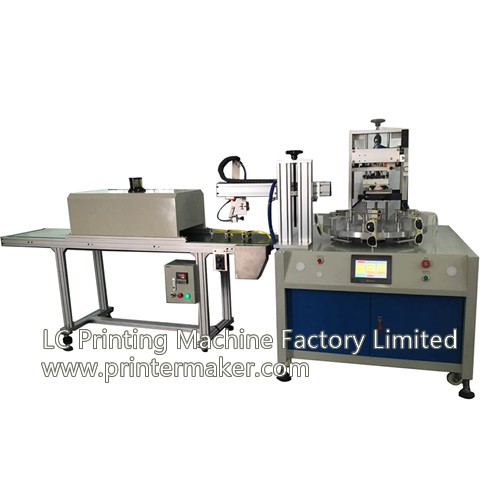

Rotary Semi-Auto SilkScreen Printer

Product name:Rotary Semi-Auto SilkScreen Printer

Model Number: HSP-2030MD

Description:

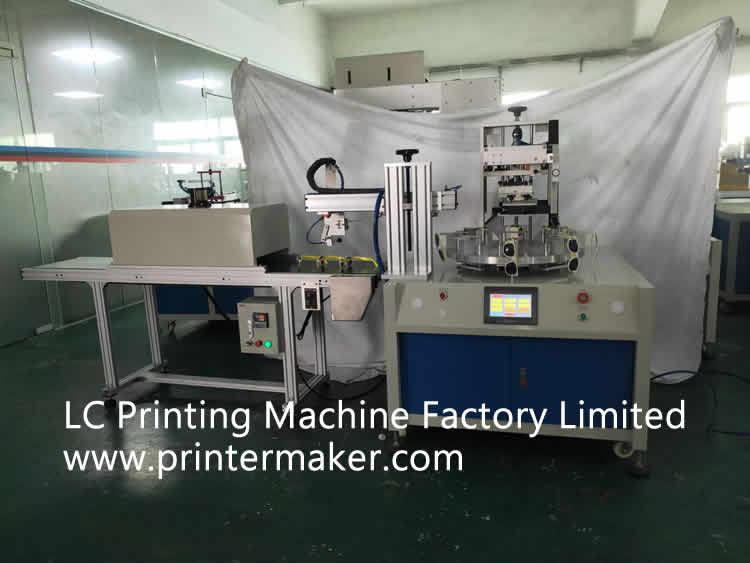

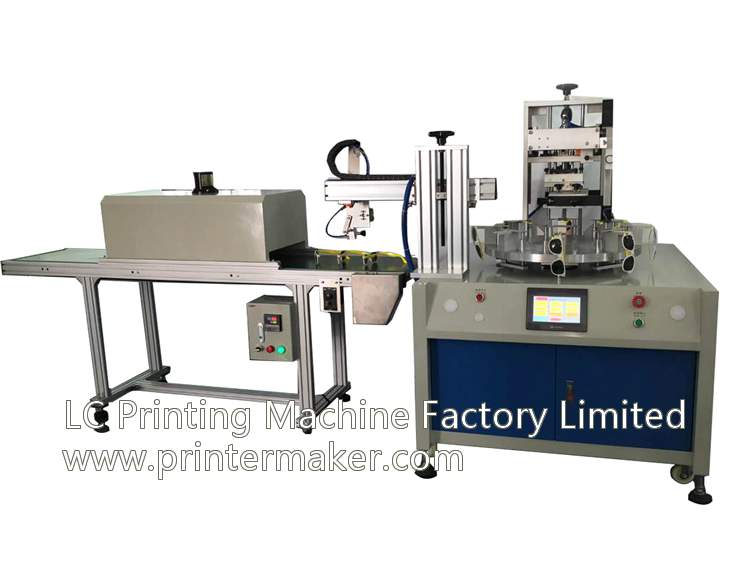

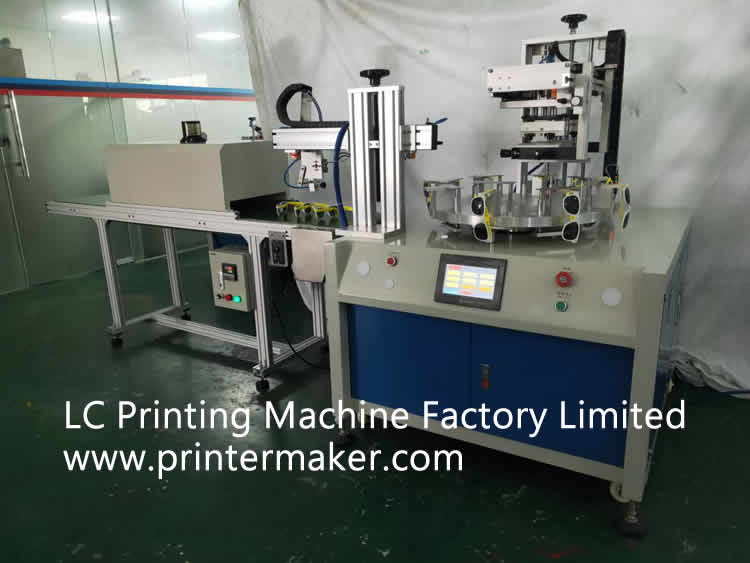

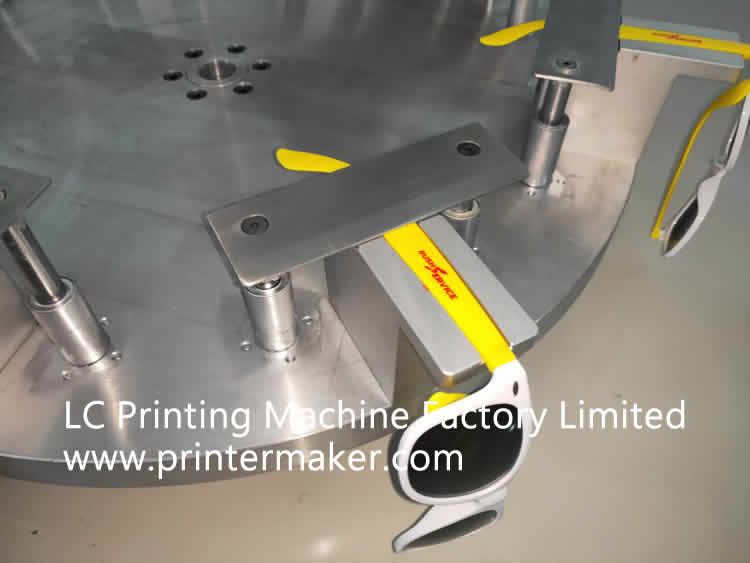

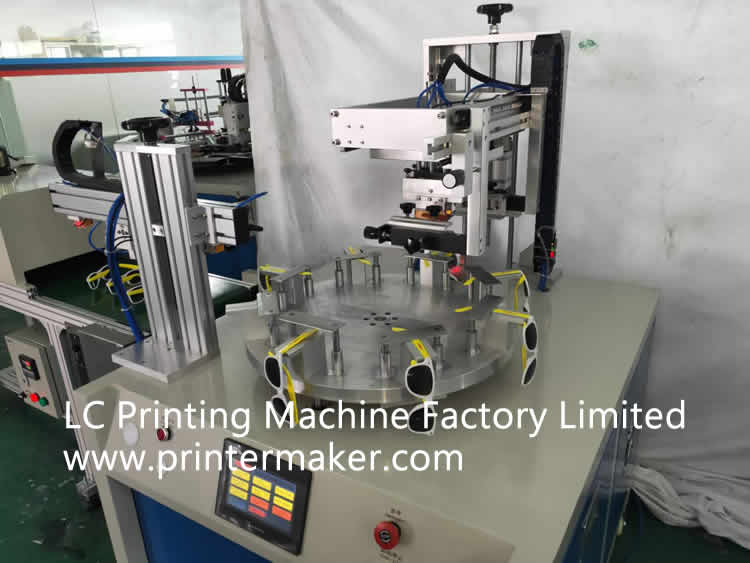

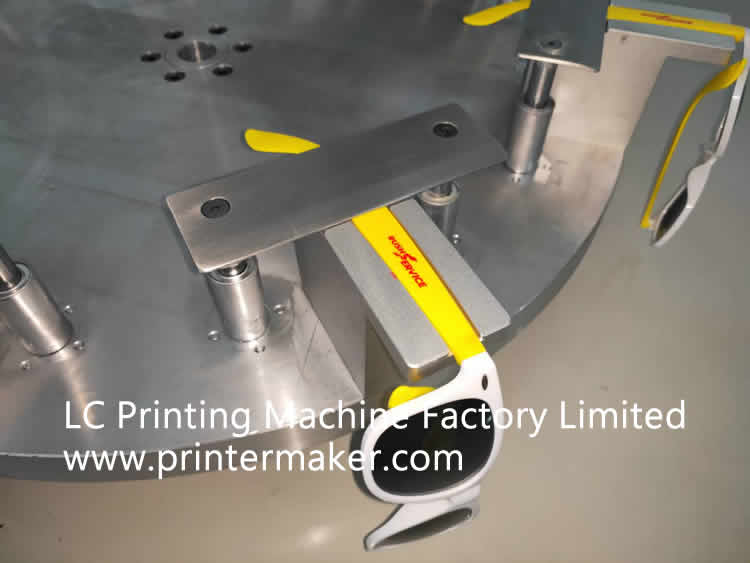

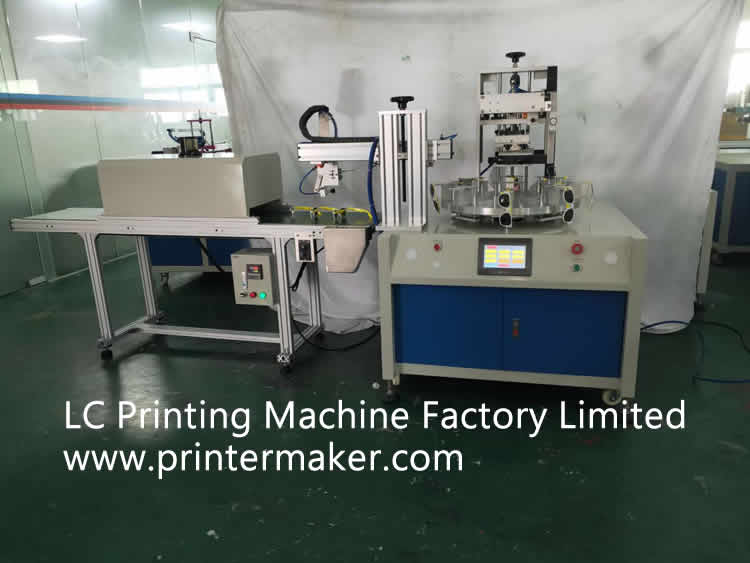

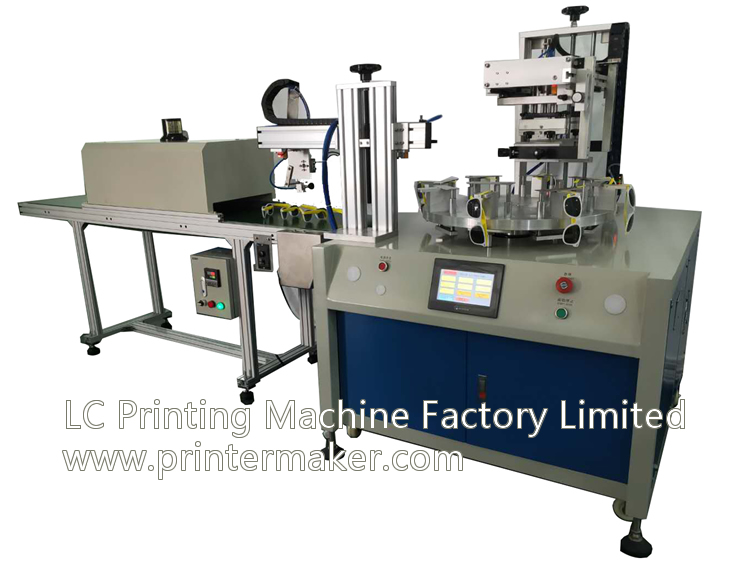

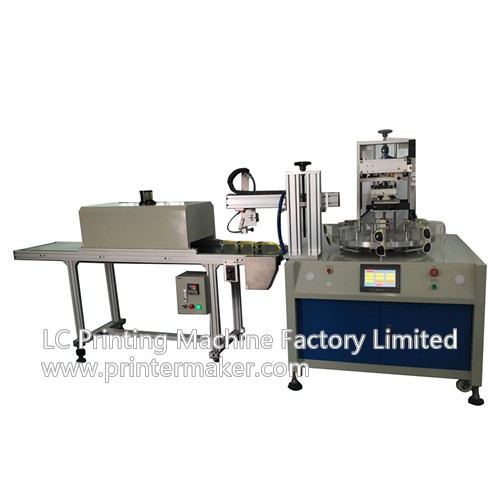

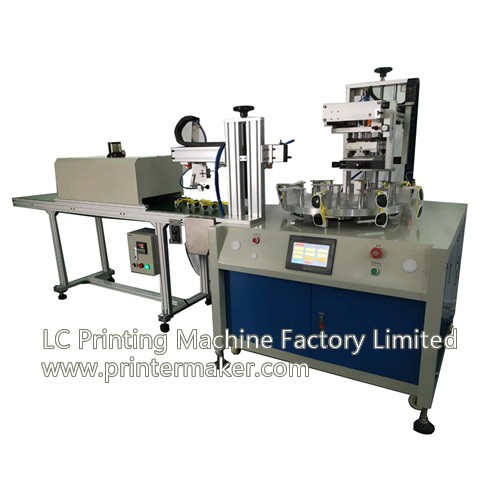

This is the 8 stations rotary semi-Auto Screen Printing Machine included with auto unloading system and drying
tunnel for the sunglasses silkscreen printing. It is fitting on all those flat small flat piece products in high-speed

requests and with good quality. The IR heating tunnel could replace the UV curing system according to the

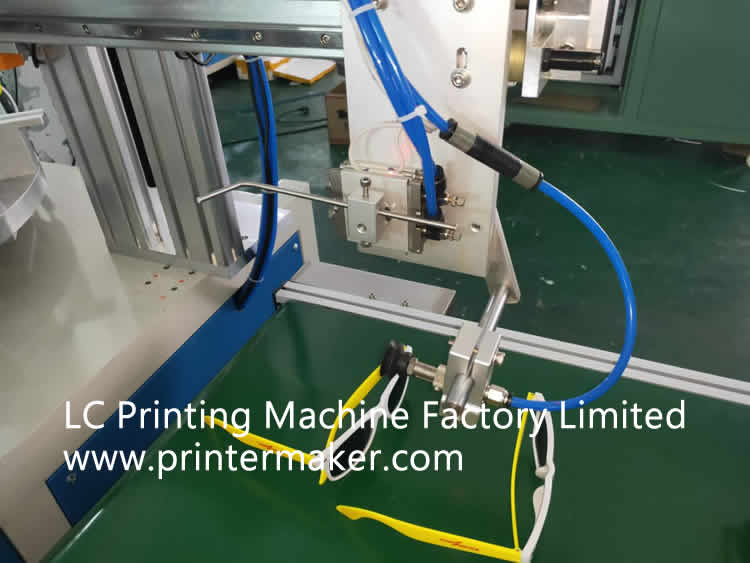

customer’s specific request. The auto unloading robot plus the drying system could greatly save the labor cost
and increase the working capacity.

Technical Parameters

Model No: HSP-2030MD

1: Max.Printing Size:200x100mm

2: Vertical Stroke:800MM

3: Transverse Stroke:400mm

4: Air Pressure:5-6 bar

5: Worktable size:200*100mm

6: Max.Printing Height of Product:50mm

7: Transverse Driving Style: Electronic

8: Vertical Driving Style:  Pneumatic

9: Workstation: 8pcs

10: Printing Color: One color

11: Machine size: 120*100*150cm

12: Packing size:2150*1650*1650MM

13: Net Weight:480KG; Gross Weight:530KG

14: Printing speed: 2000-2500PCS/hr

Automatic Grade: Semi-automatic

Warranty: One year

Application:

This machine is fitting on all those small size flat products such as   nameplates, gift box, cup pads, plastics film;
signs and panels, textiles, garments, plastic sheets, sunglasses, glasses box, keys, Metal sheet, glass sheet, and
advertising materials, printed circuits, lightboxes, lighters and so on

Feature:

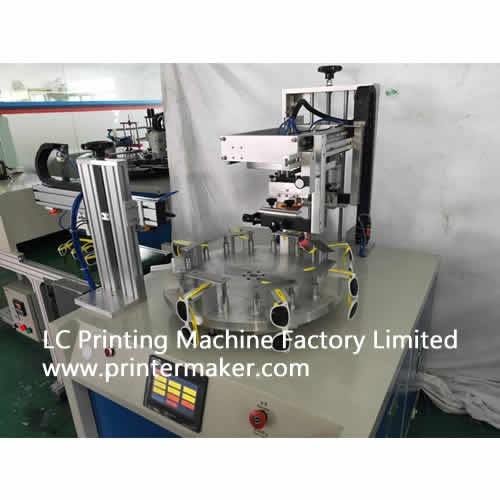

This 8-stations rotary silkscreen Printing Machine with an unloading robot and splitter which adopts a Mechanical
cam separator from Taiwan brand for precise printing.

Features:

1. SCM IC coordinates light-touch panel to compile programmable actions.

2. Auto 4-digit counter built-in to calculate printing quantity

3. Outline frames adopt aluminum casting and with the metal coating surface

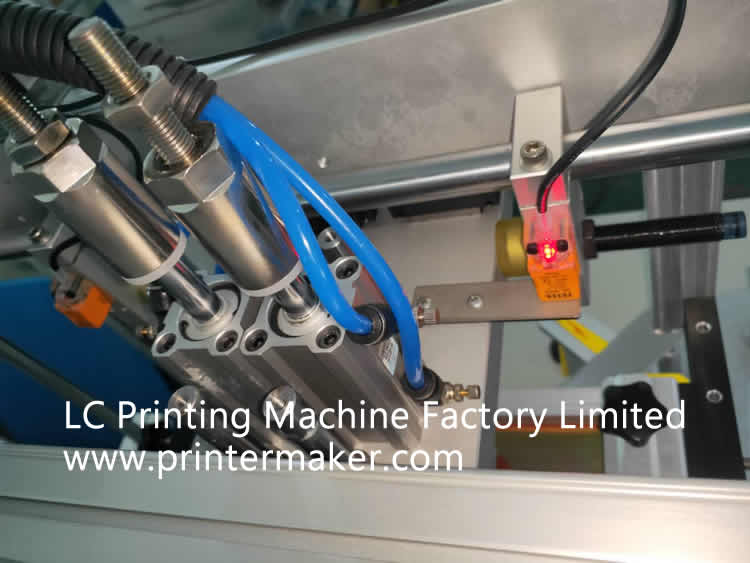

4. Double cylinders up& down structures ensures printing precisions and stability

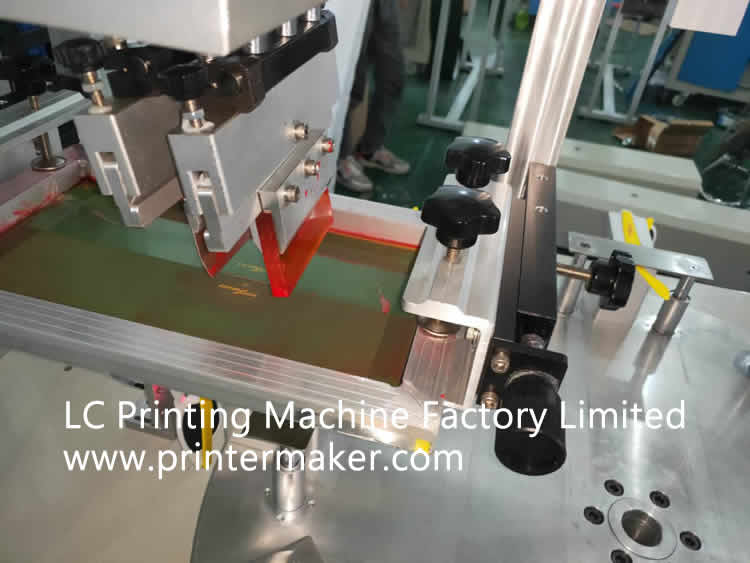

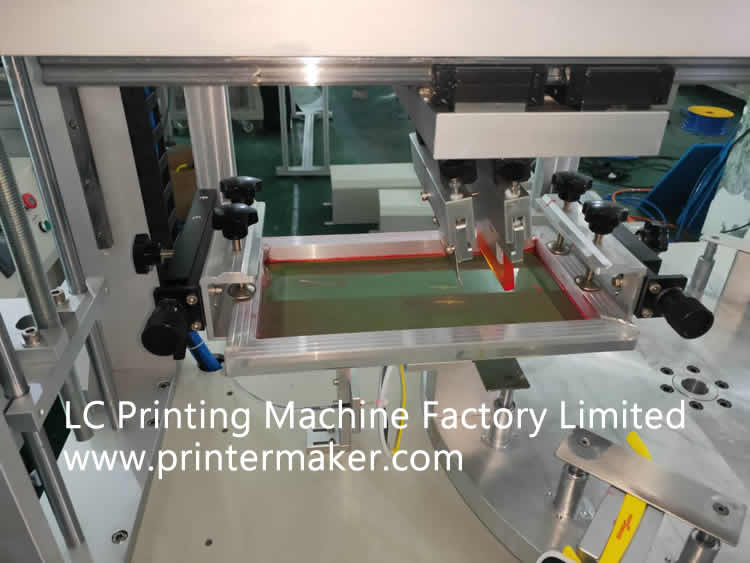

5. Left & right stroke, squeegee and ink tool positions could be adjusted

6. A pneumatic squeegee constant pressure device ensures pressure stability during processing.

7. T-slot worktable brings convenience to load and unload jig

8. Up&down is equipped with Taiwan CEC oil pressure buffer to eliminate working shock.

Accessories:

1.Screen frame with mesh x 1 piece

2.Squeegee x 1 piece

3.Tooling box x 1 piece

4.English manual x1 piece

5. Scraper, Ink blade  1 set
