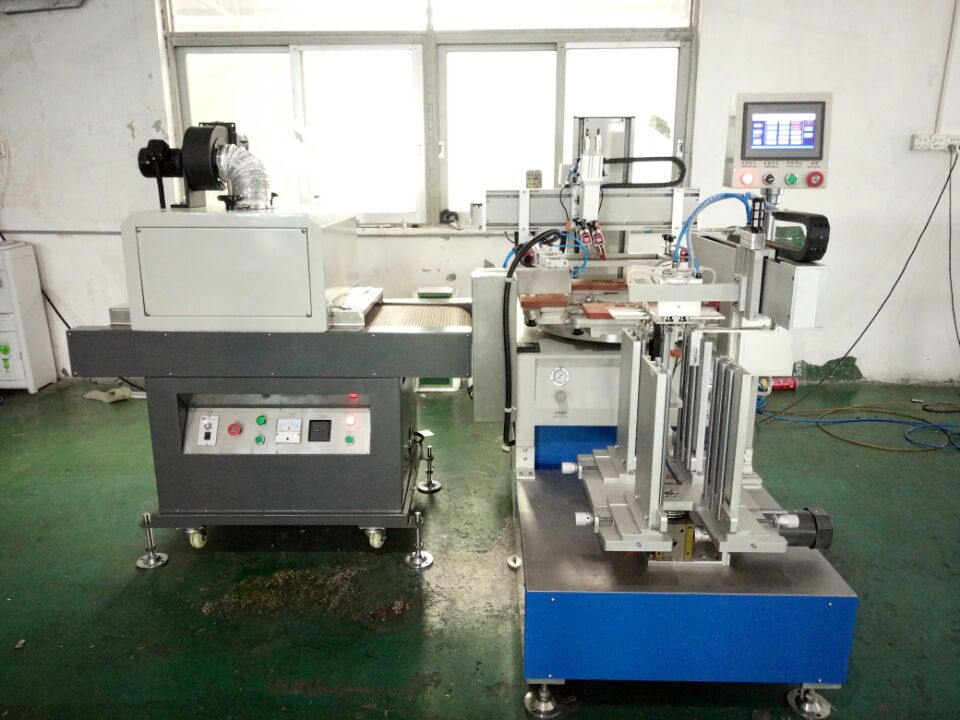

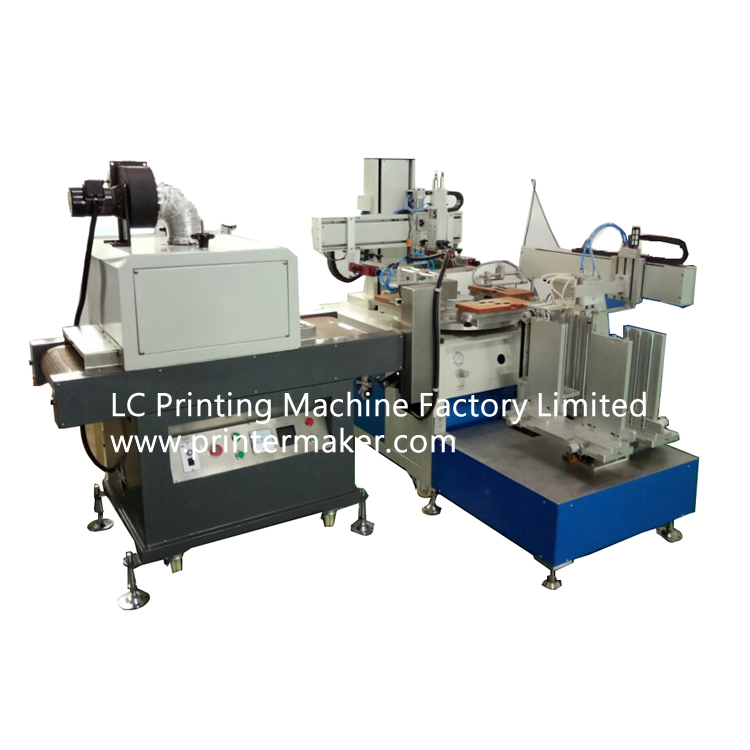

Automatic UV silk screen printing machine on aluminum rulers

  • PRODUCT DETAIL
Description:
Automatic UV silk screen printing machine on aluminum rulers
1. Max. Screen Frame size:620*250*20MM
2. Maximum printing size: Length:300MM Width:80MM
3. Printing speed: 3500Pcs/Hr
4. Pneumatic flow: 6Bar/0.82
5. Power supply: AC220v 50Hz 2500W
6. Machine size: 1900*1180*1550MM L*W*H.
Machine weight: 585KG
8. Packing size: 2050*1300*1750MM L*W*H
9 Packing weight: 885KG
10. Mitsubishi PLC, touch screen Kunlun on-state TPC7062KD
11. Servo motor: ECMA-C20604RS 0.4KW,ECMA-C20807SS0.75KW
12. Stepper motor: TYPE: YK3913A-H, 3-PHASE 6N.m
UV Curing Machine parameter:
1. Product Length: 350MM
2. Product height: 30MM
3. Conveyor width 430MM
4. Conveyor speed 0-20M / MIN
5. Conveyor belt space: 430 * 1200MM (W * L)
6. Lamp power rate: 4KW L: 465MM
7. Total power rate: 4.5KW
8. Overall dimensions 1300 * 700 * 1480MM L * W * H
9. Machine weight: 250KG
10: Packing size : 1550 * 850 * 1680MM L * W * H

11:  packing weight: 400KG
