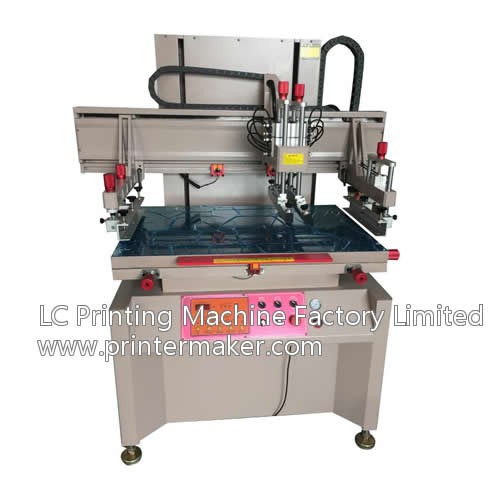

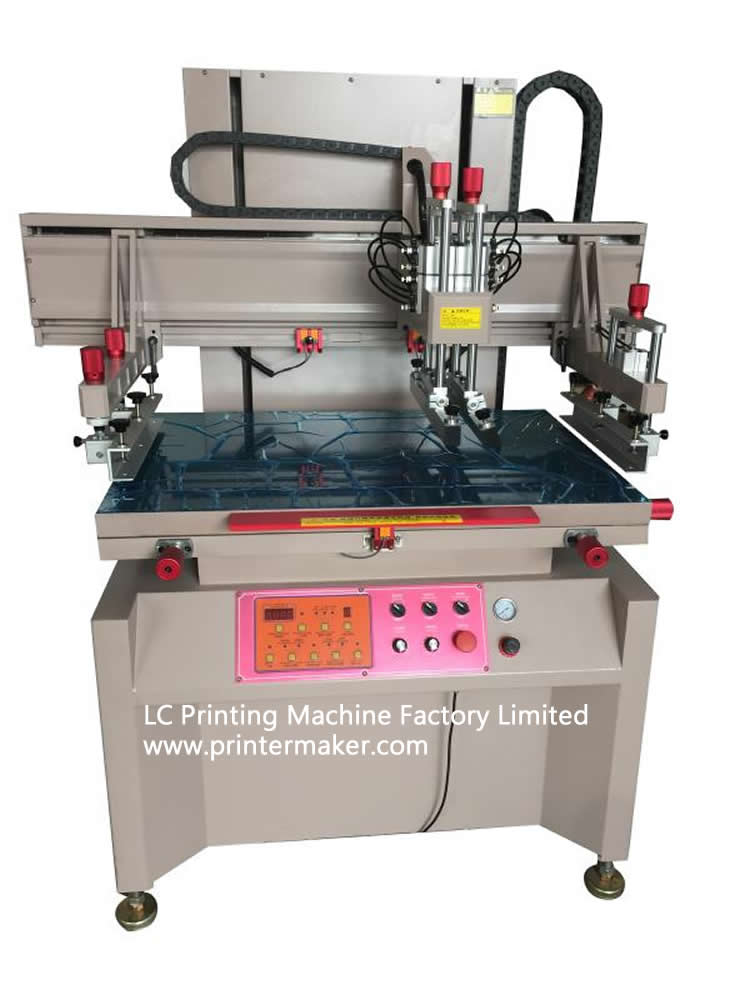

Product name:Flatbed Vacuum PVC Card Printing Machine
Model Number: SP-6080Description:
Flatbed Vacuum PVC Card Printing Machine
This type of electric flat-bed vacuum screen printing machine is suitable for precise screen printing on substrates in PCB Board, Sheet, Film or Cube forms which with smooth flat surface and made of as metal, plastic, ceramic, glass, wood etc... It is widely used in electronic industry, advertising, packing & printing, toy, stationery, gifts, industrial arts fields etc...
Screen printing objects such as resistor, keyboards, silica gel keypads, paster, sticker, nameplate, panels, Plastic Moldings etc.
1. Vertical structure, Compact & space-saving. PLC control, easy operation and good stability. Language optional, English or Chinese Operation Panel.
2. Printing driven by motor, Installed Linear Guide or Linear Guideway. Printing speed and ink flooding speed are adjustable. Running smoothly and a long work life.
3. Special cushion cylinder installed on the left/ right buffer gear.
4. The motor drive screen frame up and down, two poles guide. Separated buffering air course to keep stability register.
5. Duralumin working table( made according to the international standard cast aluminium JISH5302-2000 ), precise scale micro-adjustable. Planeness keep in 0.05mm, roughness
6. Printing angle/ printing pressure and spacing between screen frame and table are adjustable.
7. Reliable safety device is installed according to CE standard.
1. Thickness of printing matter: 0-80mm
2. Size of printing table：600×800mm
3. Max Printing area：550×750mm
4. Max Stroke of up-and-down frame：160mm
5. Max. printing speed：1500pcs/hour
6. Air pressure：6 Bar
7. Power voltage: AC 380V (because of the electric lifting table, we can change 110V or 220V)
8. Power consumption：50 W
9. Machine dimension：1100×950×1550mm
Price Terms : FOB Shenzhen or Guangzhou
Payment Terms : Western Union ,T/T or L/C
Packing : Wooden case
Lead Time : Within 3 days
Standards Certificate : ISO9001-2000,CE
1.One aluminium screen flame
2.One Manual in English
3.One set of tool
Wooden case :1200×1050×1650mm
Gross Weight: 310Kg
within 30 days after receive remittance
within 6 days after receive remittance
1.Cylinder can be changed for free within 1year,freight collect.
2.Other parts can be changed for free within 2years,freight collect.
