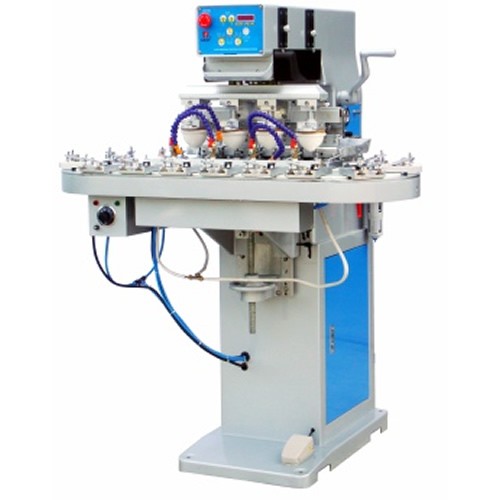

Product name:4-Color Pad Printing Machine with Conveyer

Model Number: S4-C

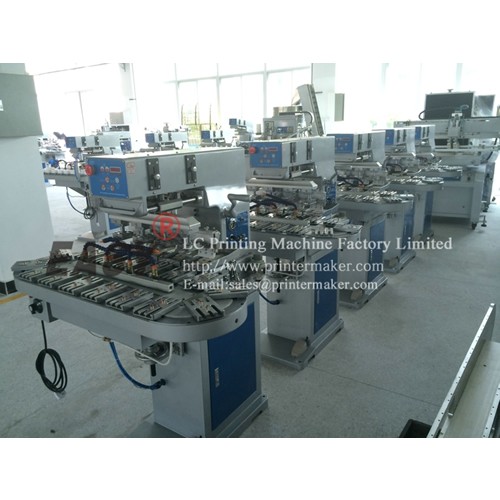

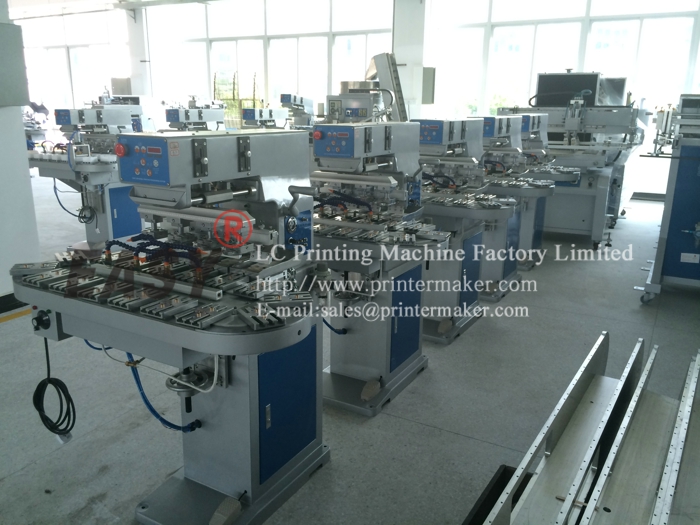

4-Color Pad Printing Machine with Conveyer
Specifications:
S4/C
Four-colour open inkwell pad printer with conveyer:
1.Max. plate size: 100×150mm;
2.Max Printing area: 85×130mm;
3.Max. worktable area: 90×125mm;
4.Max. printing speed: 1200pcs/h;
5.Printable colours:4;
6.Stroke of cylinder up-down: 80mm;
7. Stroke of table shuttle: 125mm;
8. Range of table height adjustment: 250m.

Advantages:
1.Total microcomputer controlled operation;
2.Auto four digit counter built-in;
3.Ink covering by ink roller;
4.Fully coin aluminum structure which is sturdy and long life
5.Independent pad stroke and speed control;
6.Printing speed adjustable to meet with different needs;
7."Inking twice, printing once" to get thicker ink covering;
8. Japen SMC Cylinder & Germany FESTO Pneumactic Parts

Machine Fittings:
1. Four Pad plates,
2. Four pads
3. Two blades
4. A tool box.

Application:

Applicable for small round surface as well as flat surface printing, such as cell phone button,golf, toy, Pens, PC Mouse, Small electronic accessories etc.

4-Color Pad Printing Machine with Conveyer4-Color Pad Printing Machine with Conveyer4-Color Pad Printing Machine with Conveyer
