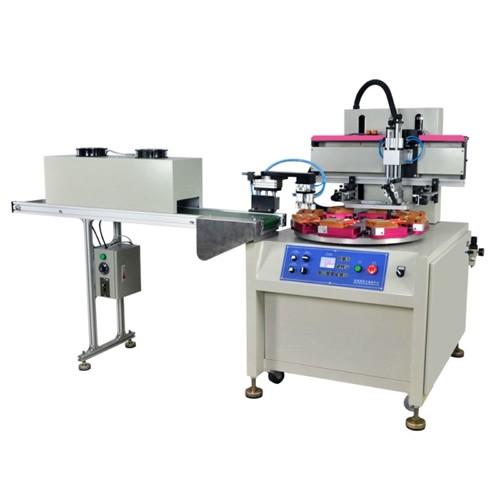

Flat Screen Printing Machine With Rotary Table Auto Baiting Drying System

  • Model Number: SP-2030T8BDS
  • Category: Flat Bed Screen Printing Machine
  • Views: 194
  • Product Description:Flat Screen Printing Machine With Rotary Table Auto Baiting Drying System
Flat Screen Printing Machine With Rotary Table Auto Baiting Drying System
0. Printing Color: one Color
1. Maximum printing area: 200*300mm
2. Transverse stroke: 350MM
3. Vertical stroke: 100MM
4. Worktable size: 600mm
5. Max height of printing products: 50mm
6. workstation: 2, 4, 8 for choice
7.Machine size:765*95*150CM
9.packing:Plywood Case
10.Delivery terms:By sea or By air

11.Delivery date:Within 3 days after order confirmed

This machine is a high speed and precise screen printer, using Taiwan
Mechanical cam divider compose high speed rotary table, which have no shack when
Printing, because of having more workstations, you can pick and place work piece
At the same time. The speed is very quick, can be up to 2800pcs/hr. It’s the first
choice for you to do large quantity printing.
Function introduction:
1. SCM IC coordinate light touching panel to compile action programming
2. Auto 4-digit counter built-in, counting printing quantity
3. Airframe adopts coin alloy, and metal coating surface
4. Distyle vertical structure, high precision, steady operation
5. The transverse stroke can be adjusted, spacing by Taiwan electronic switch
6. The angle of scraper and ink covering blades can be adjusted randomly
7. Installing scraper constant pressure equipment to make sure pressure is steady when printing
8. You can regulate work-table back and forth or right and left, and then fastening it
9. You can regulate screen frame back and forth, right and left or level orientation
10. T-slot worktable, convenient to install mould
11. Installing CEC oil buffer on up and down, left and right to avoid printing shocking
12. The machine is running fast, stably and lower noise.
13. Action model option: Fully automatic semi-automatic manual

14. Start-up method: Panel foot switches

15. Scraper pressure controller: By pressure regulating Valve
16. Vertical driving style: Pneumatic
17. Transverse driving style: Electric

18. Baiting by manipulator to get more higher degree of automation
