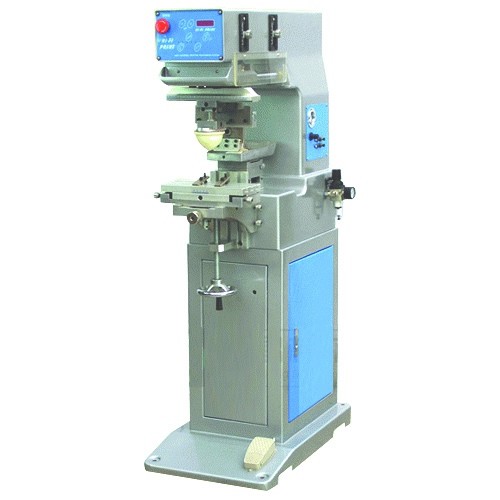

Economical 1 Color Tampo Printing Machine

Product name:Economical 1 Color Tampo Printing Machine

Model Number: EP1-150

Description:
Economical 1 Color Tampo Printing Machine
Specification
1. Model NO: EP1-150
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 100*150mm
5. Printing area; 85*135mm
6. Jigs: 1
7. Max printing speed: 1800PCS/H
8. Wattage: 220V/ 50HZ:
9. Air pressure: 0.4-0.6Mpa
10. Machine size(LxWxH): 830x530x1400mm
11. Machine weight: 115kg
Feature
Single color pad printer it is standard model in pad printing line. Widely use for Special shape parts. Such as keyboard, mouse, toies, pens, Cosmetics package box, hardware Parts.
1. Ontrolled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable
Price Terms:FOB GuangZhou
Packing:Wooden Case
Standards Certificate︰ CE
Application area:toies, pens, Cosmetics package box, hardware Parts.
Main Parts:Airtac Made BY TAIWAN

H.S.code:84439000
