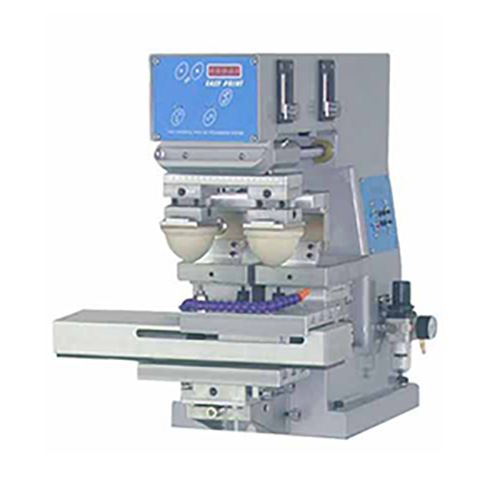

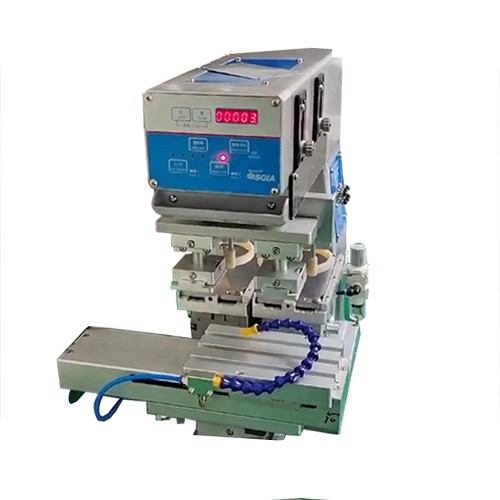

Economic Tabletop 2 Color Ink Cup Pad Printing Machine

  • Model Number: EP-TP2-100T
  • Category: Economic Ink Cup Pad Printer
  • Views: 173
  • Product Description:Economic Tabletop 2 Color Ink Cup Pad Printing Machine
  • PRODUCT DETAIL
Description:
Economic Tabletop 2 Color Ink Cup Pad Printing Machine

The pad printing machines, which is fit for the nice printing on the small size workpieces. It can be operated easy and has good printing speed .And the two colors machine can overprint also. For example: stationery, toys, presents, electronic products and so on.

Specifications
1.steel plate size: 100*100mm
2.printing speed: 2100pcs/hr
3.power: 220V/110V 50-60HZ
4.air pressure: 5-7Bar
5.Action model option: fully automatic/semi-automatic/ Self-Programming
6.Start-up method:panel/foot switches
7.transversa distance:125MM
8.Max.printing area:80*80MM
9.Printing Color:2

Package List:
Wooden case :680×420×650mm
Gross Weight : 85kg

Machine Fittings
1.Two pad
2.Two steel plate
3.One Manual in English
4.Two blade
5.One set of tool
Feature
1.SCM IC complile action program,kinds of printing model options
2.Auto 4-digit counter built-in,and stat. Printing quantity
3.Airframe adopts coin alloy,and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently .
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Taiwan AirTac pneumatic component
10.Each adjustable location has scale logo1

11.The machine is running fastly,it is steady and low voice
