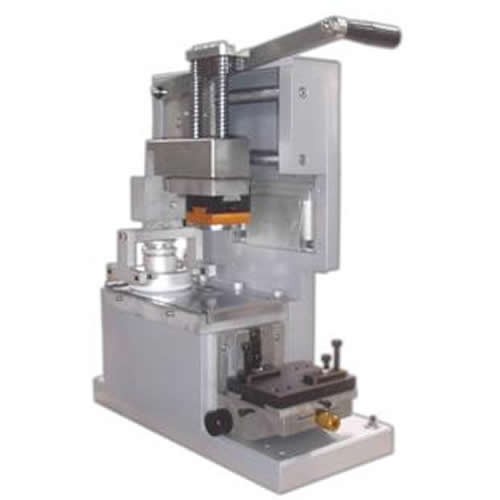

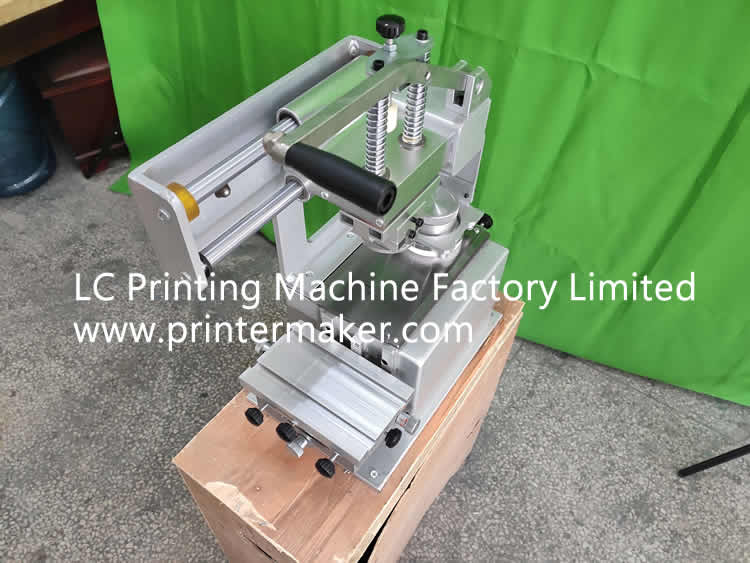

Product name:Ink Cup Manual Pad Printing Machine

Model Number: 100MT

Description:
ink Cup Manual pad printer
Specifications:
Model no:100MT
1:Ink cup Diameter:70mm
2.Plate area: 100×214×0.25mm
3.Dimension: 400 × 220 × 490 mm
4.Net weight: 35 Kg
5.Printing speed: 500pcs/H.
6.Max printing area:70×100mm.
7.Horizontal Stroke:100mm
8.Vertical Stroke:60mm
Model no:250MT
1.Ink cup Diameter:90mm
2.Plate area: 100×250×0.3mm
3.Dimension: 420 × 220 × 490 mm
4.Net weight: 40 Kg
5.Printing speed: 500pcs/H.
6.Max printing area:80×130mm.
7.Horizontal Stroke:150mm
8.Vertical Stroke:60mm
9: Max. height: 200mm
10: machine diamension: 400*220*490
11: Pack size: 620*260*460mm
Advantages:

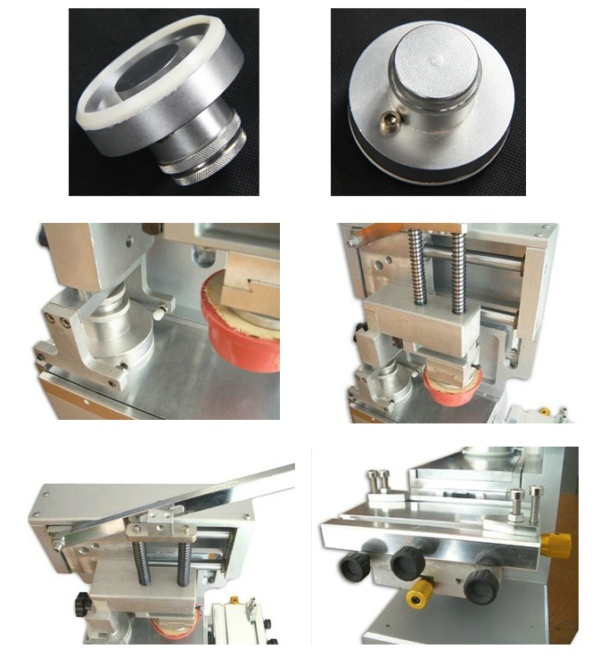

1. Sealed Cup Manus operating.
2. Easy to change plate.
3. Lower price.
4. Coin aluminum structure.

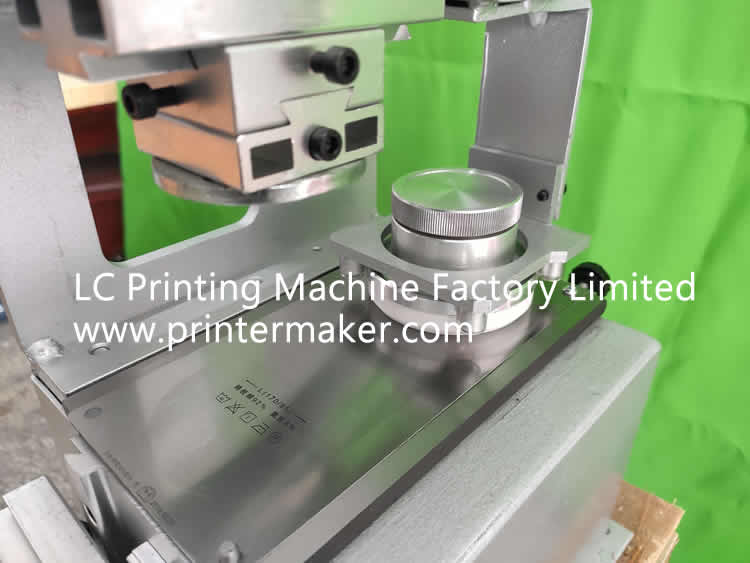

5. A sealed cup is more environmental protection and ink and thinner saving.
Machine Fittings:

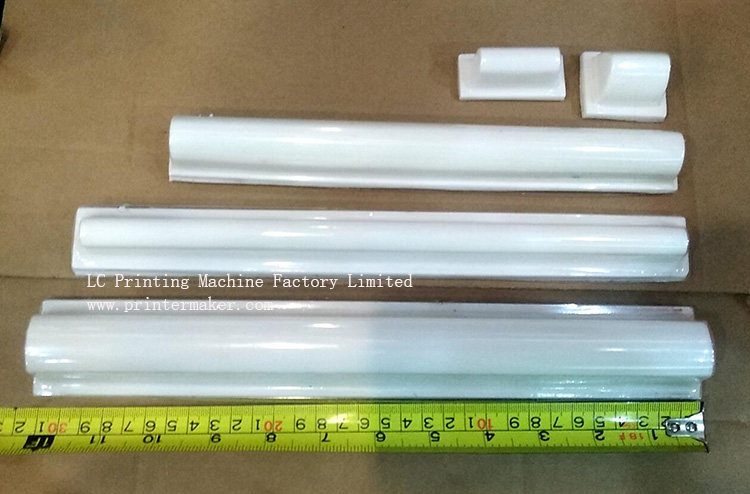

1.One pad
2.One steel plate
3.One operation manual.
Application:
Applicable for the small round surface as well as flat surface printing, such as cell phone button, golf, toy, Pens, PC Mouse, Small electronic accessories etc.
