Automatic Rotary Flat Heat Transfer Machine on Toothbrush

Product price: US$:negotiated
Category: Heat Transfer Machine
Views: 7

Product Description：Specially designed for toothbrush manufacturing factories, realizing fully automatic heat transfer printing after injection molding.

PRODUCT DETAIL

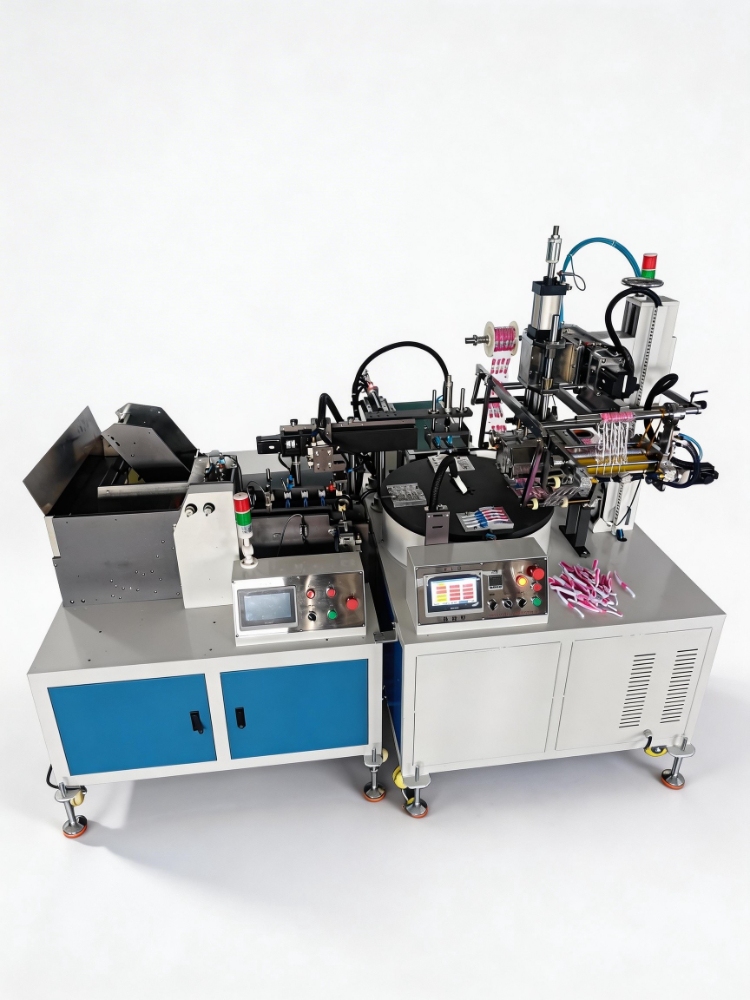

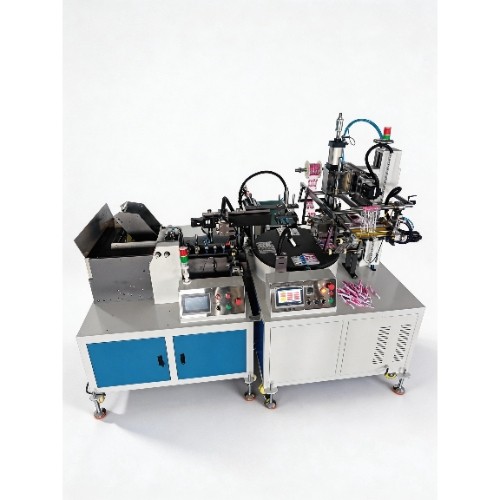

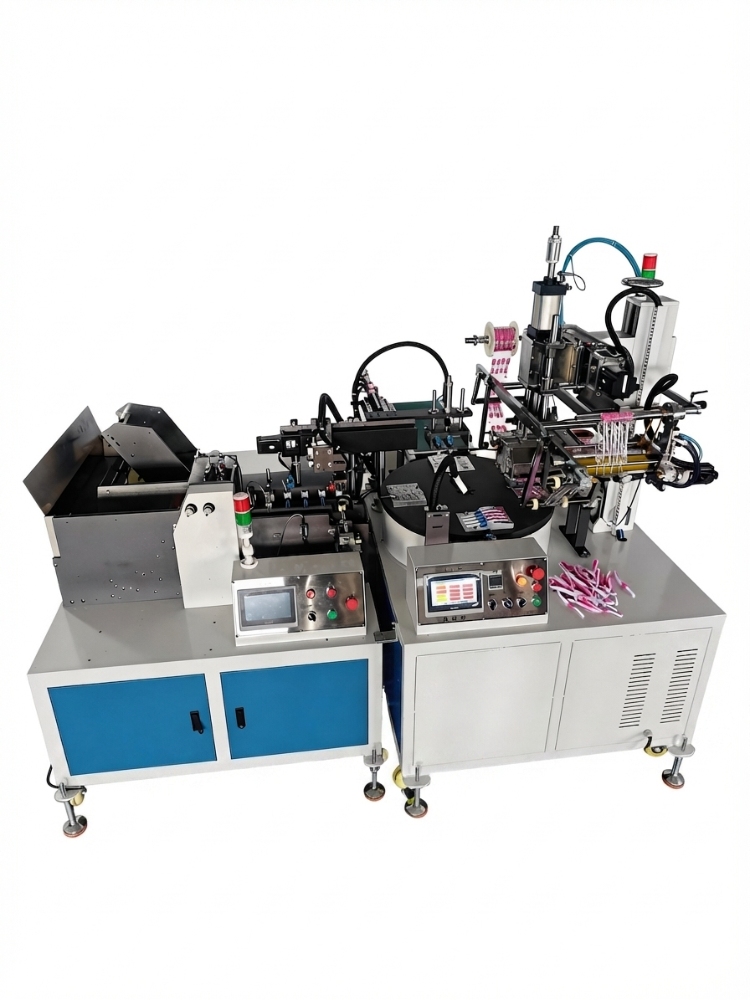

Product name:Automatic Rotary Flat Heat Transfer Machine on Toothbrush

Specification：
1. Machine Name: Automatic Rotary Flat Heat Transfer Machine on Toothbrush
2. Model: EASY-FA4TBP
3. Max. Printing Area: 160*250mm
4. Max. Processing: 50mm
5. Control System: PLC + HMI;
6. Special Features: Elevator feeding + ultrasonic intelligent reversing + automatic head-tail steering, four-station turntable with four outputs.
7. Typical Applications: Specially designed for toothbrush manufacturing factories, realizing fully automatic heat transfer printing after injection molding.
8. Power Supply/Total: 220V / 50Hz / 5000W
9. Air Pressure: 0.4 – 0.6 MPa

10. Dimensions/Weight: L 3.3 × W 1.6 × 2.2m / 800kg
