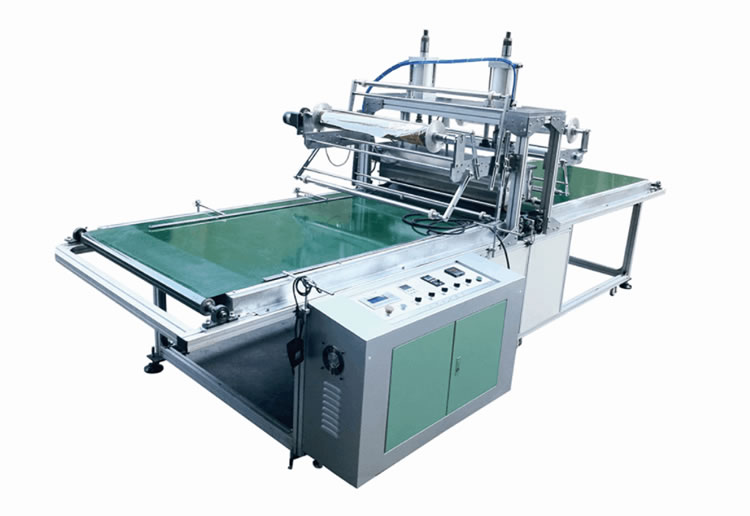

Large Size Flat Heat Transfer Machine

  • Model Number: HTS-100150
  • Category: Heat Transfer Machine
  • Views: 105
  • Product Description:Large Size Flat Heat Transfer Machine Large size flatbed heat transfer machine on furniture Heat transfer machine on glass plates, Furniture Heat Transfer Machine,
  • PRODUCT DETAIL

Product name:Large Size Flat Heat Transfer Machine

Model Number: HTS-100150

Large size flatbed heat transfer machine on furniture
Heat transfer machine on glass plates
Parameters:
1: Maximum hot stamping area: 1000 * 1500mm
2: Belt width: 1300mm
3: Rubber wheel diameter: Ф 130mm * 1000mm
4: Power: 6kw
5: Working pressure: 500kg
6: Power supply: 380V
7: Machine size: 5000 * 1600 * 2000mm
8: Machine weight: 1000kg
Machine configuration:
1. Used Magnetic powder expansion force
2. The conveyor belt is controlled by frequency conversion;
3. Adopted Double cylinders system
4. Stepper motor for film collection;
5. Adopt PLC control and Taiwan Brand motor
Equipment accessories brand
Serial number, accessory name, brand, and origin
1. Bearing: Domestic
2. Thermostat: 3A  joint venture brand
3. Magnetic powder tension: LC, Domestic brand
5. France Switch button Schneider
6.  Taiwan  Yangming, Photoelectric switch,
7. Film release motor, rubber wheel motor
8. Lifting cylinder
9. Taiwan  Jin Gong  Solenoid valve
10. Touch screen
11. Shenzhen  Switching power supply microsecond

12. joint venture of Sanyo Film collecting stepper motor

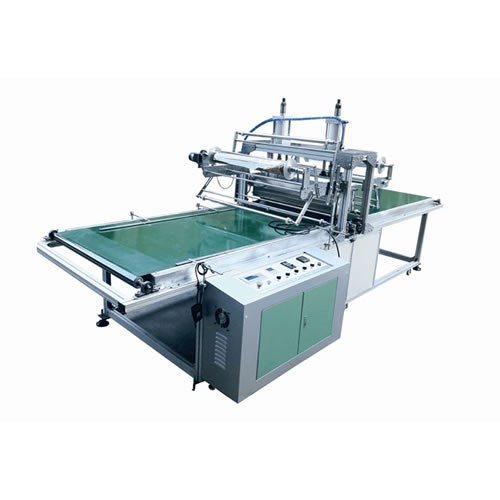

Large Size Flat Heat Transfer Machine
