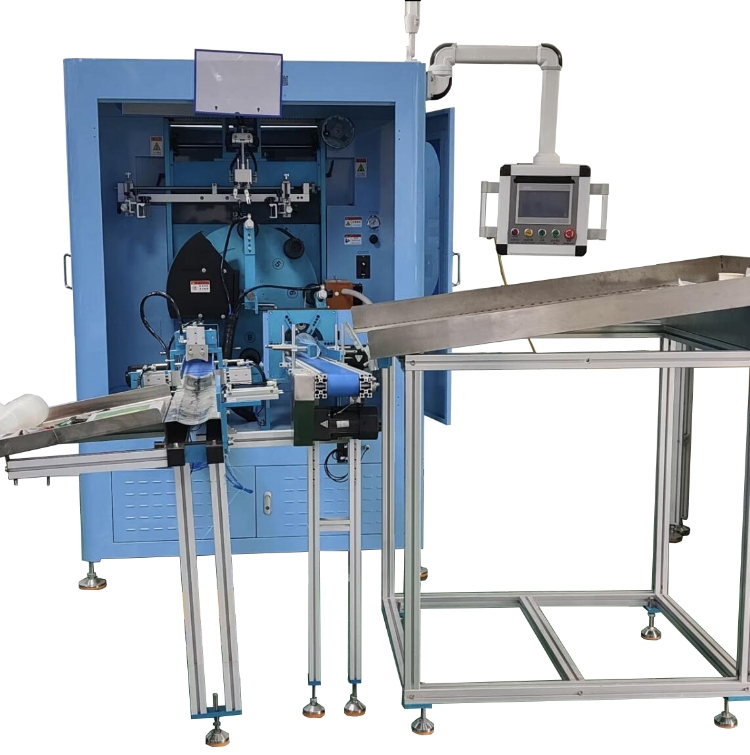

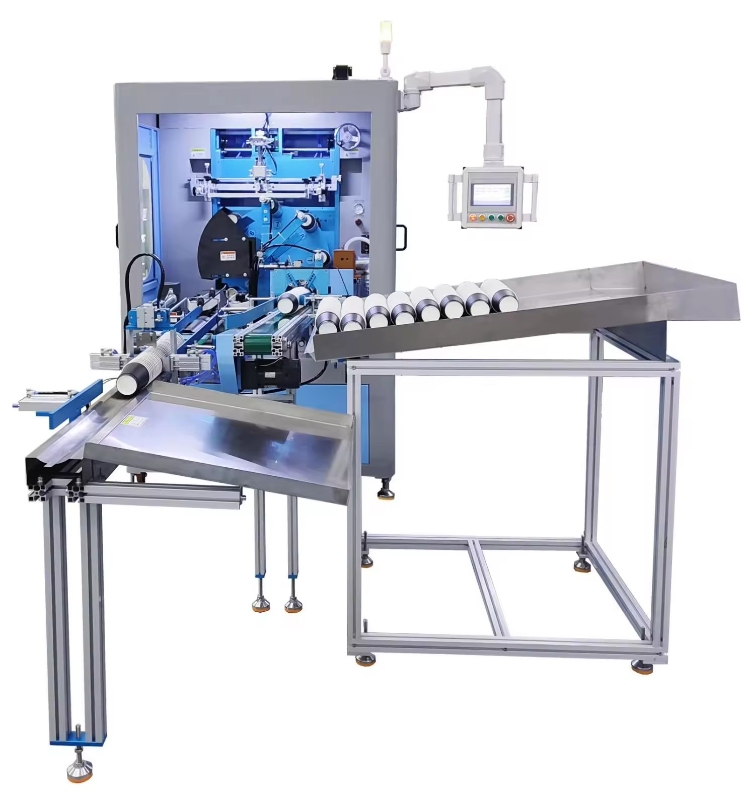

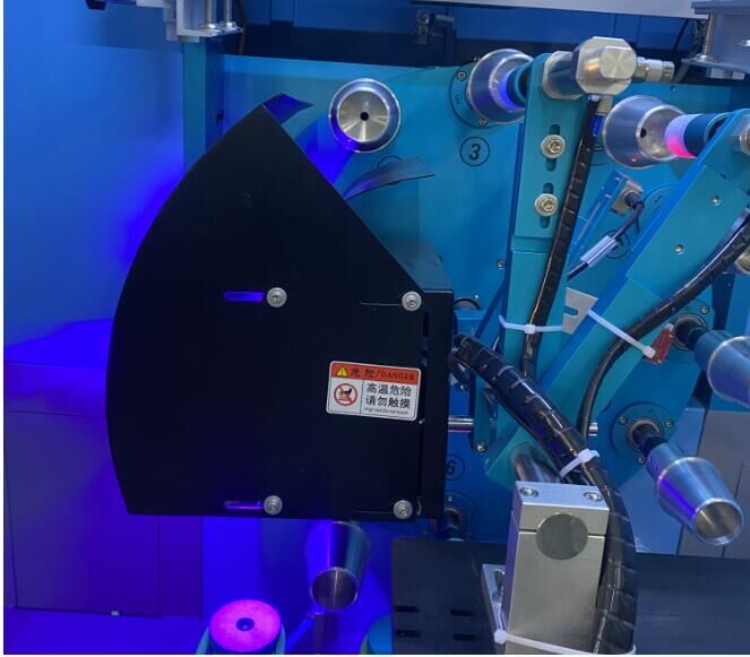

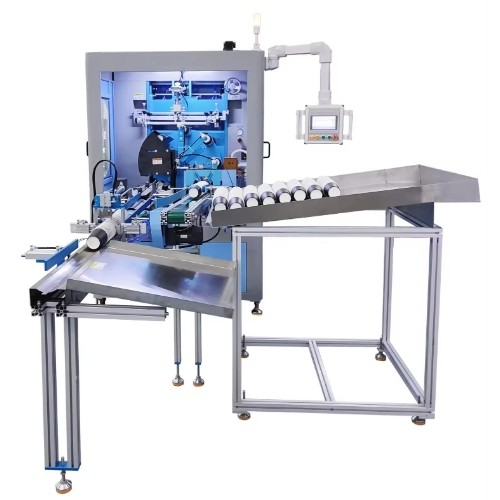

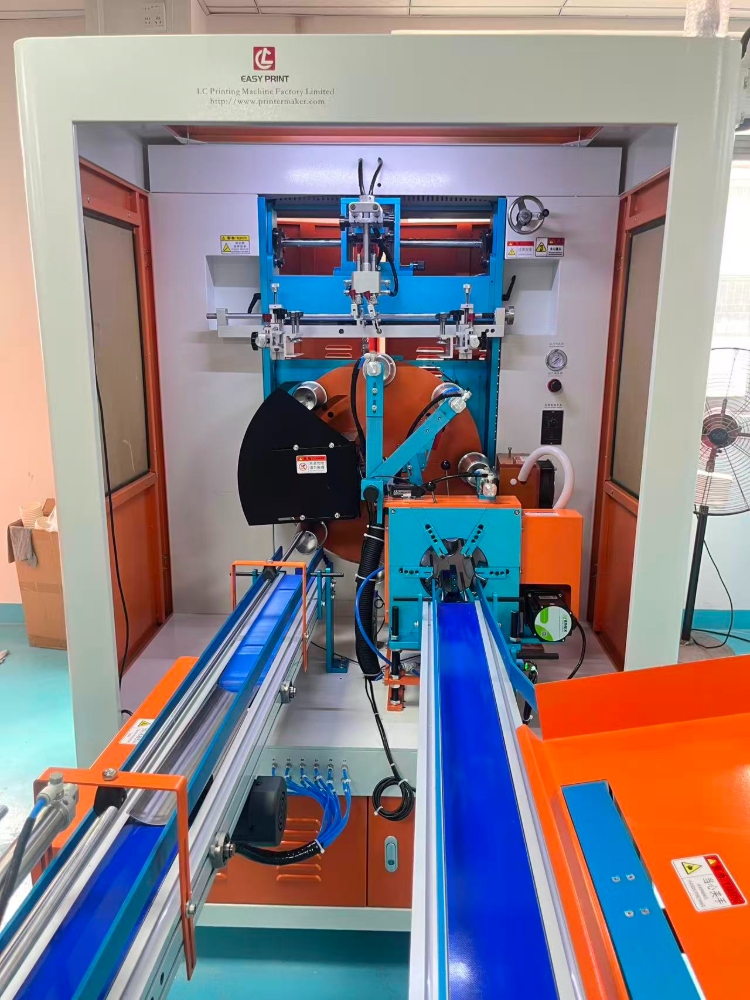

Automatic Plastic Cup Screen Printer Machine With Led UV Curing Machine

Product name:Automatic Plastic Cup Screen Printer Machine With Led UV Curing Machine

Model Number: MSP-400LED

Model number： MSP-400LED
Max Printing diameter: 80mm (it can be customized by the product diameter )
Product appearance: Round
Voltage power： 220V/ 50HZ or 110V/60HZ
Air pressure: 6-8 Bar
Printing Speed：2500 PCS/Hr
Loading mode: Automatic
Unloading mode：Automatic
Machine weight：723kg
Machine size：2500*1400*1400mm

Feature:
1. Fully automatic, without manual operation
2. Automatic positioning to maintain printing accuracy
3. No printing system, no products, keep printing stable
4. High-strength vacuum system to maintain printing accuracy

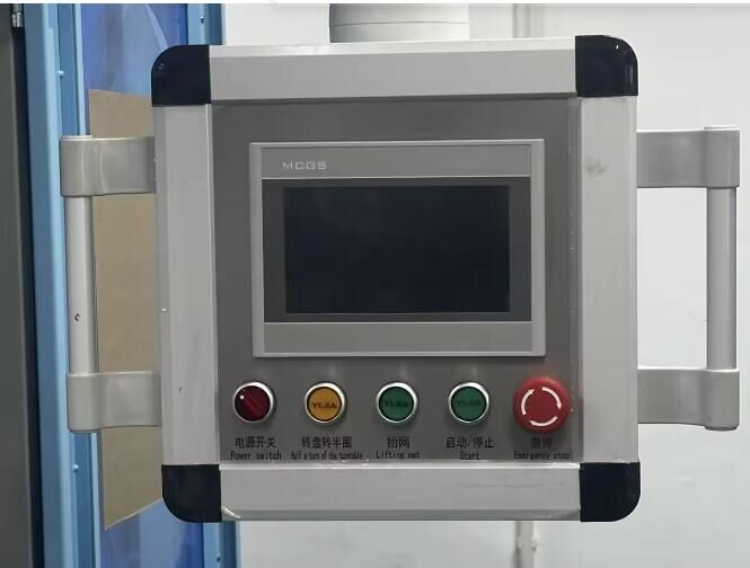

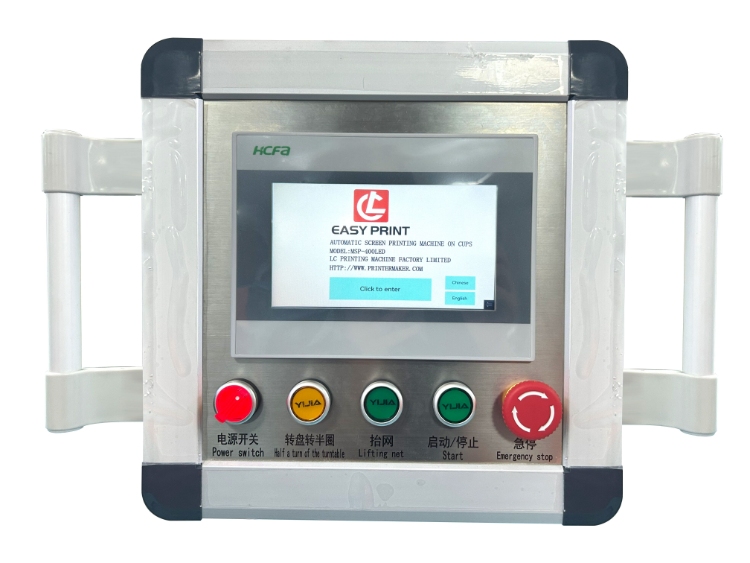

5. PLC and touch screen control system. Digital control system, parameters can be set arbitrarily, simple operation and large functions
6. The four angles of the screen frame bracket can be adjusted to maintain the balance between the screen frame and the worktable, while ensuring the uniform ink layer

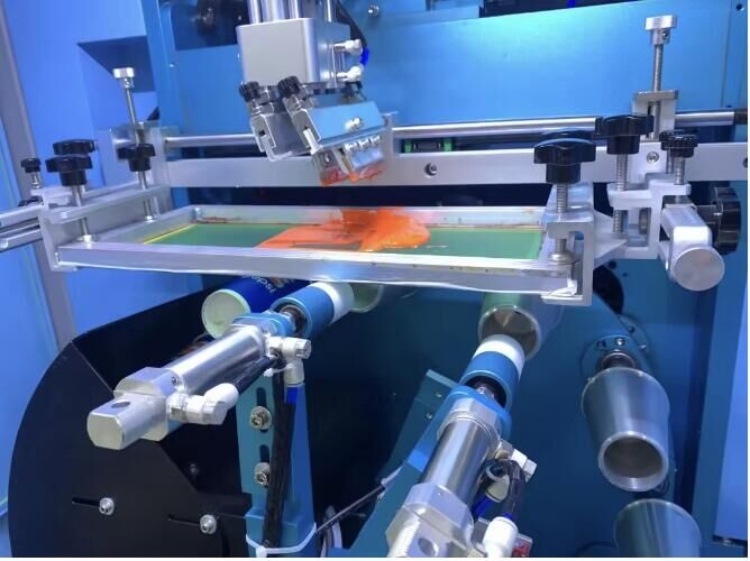

7. Printing angle, printing pressure and screen distance are easy to set. The changes of the scraper and the water retaining strip are controlled by precision guide rails to maintain vertical accuracy and work smoothly
8. With emergency switch to maintain safety and stability
9. Taiwan precision rotary positioning multi-station positioning, stable, fast, and improve efficiency

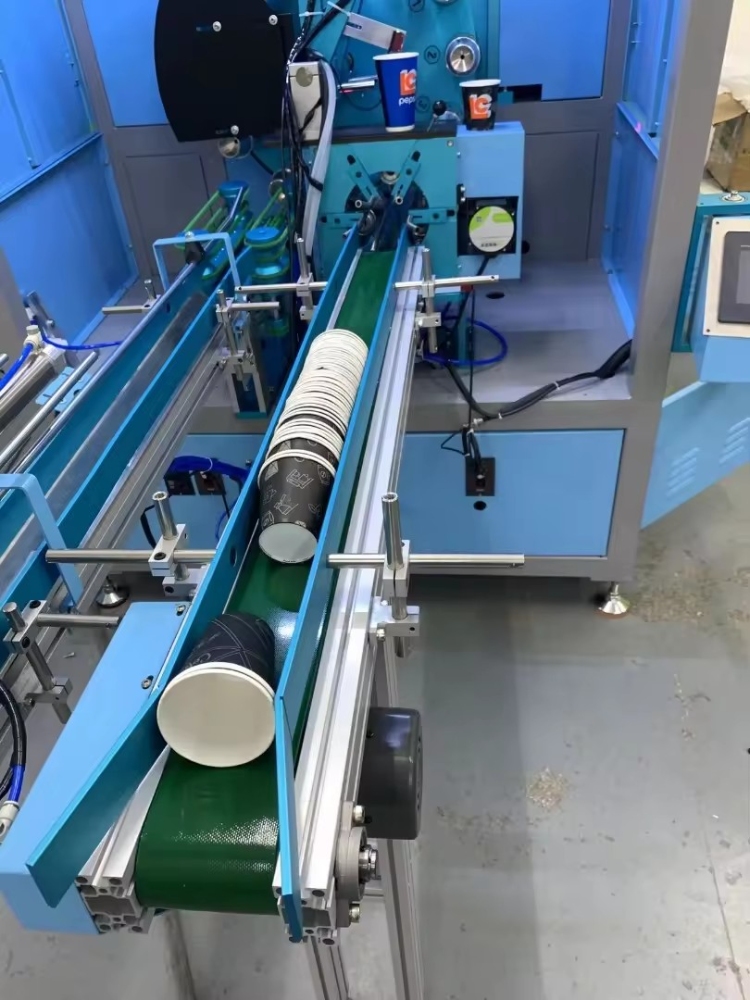

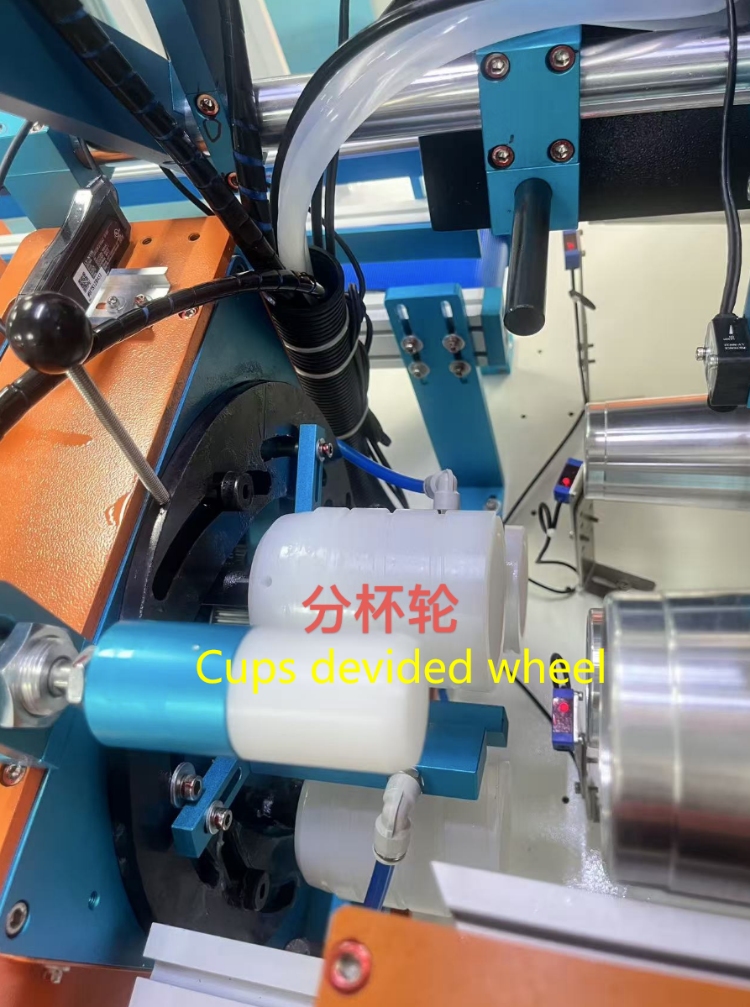

10. The loading system is rotary, save time

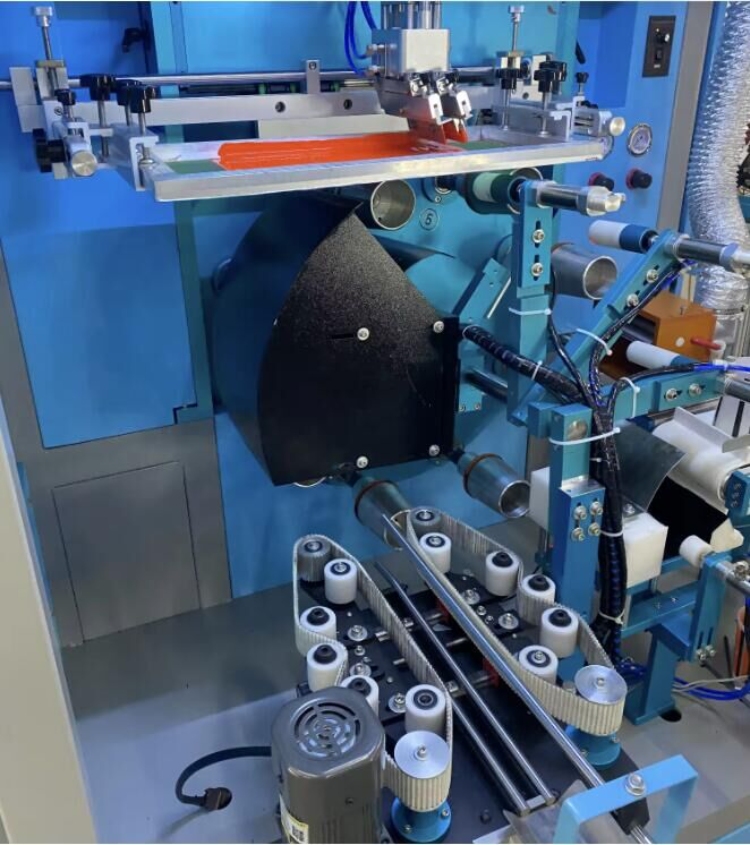

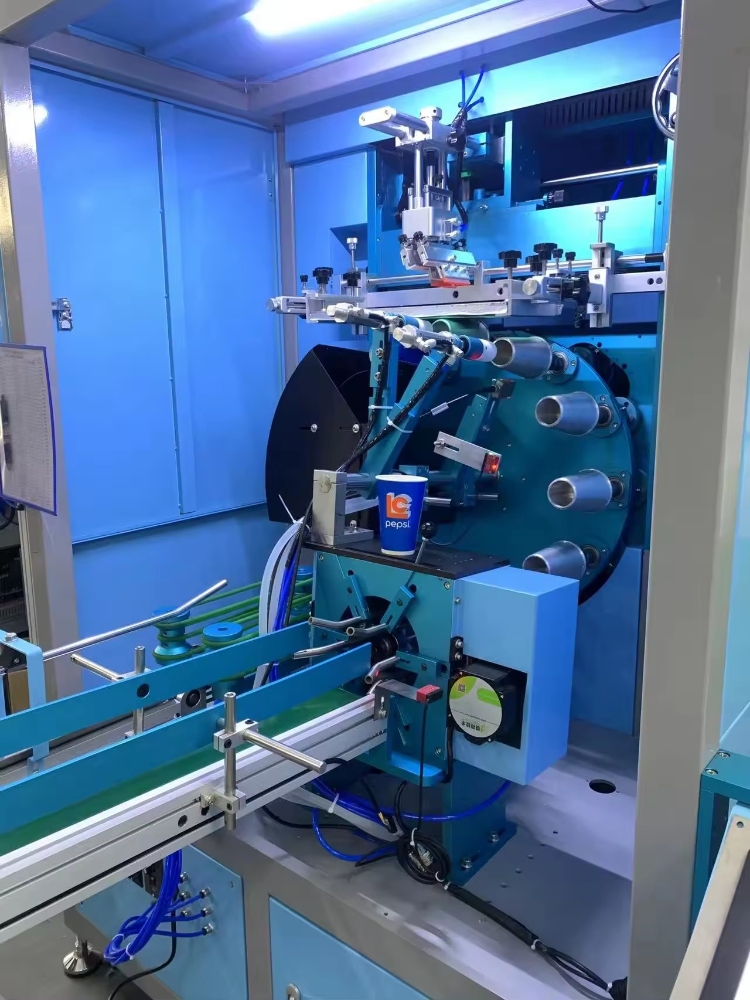

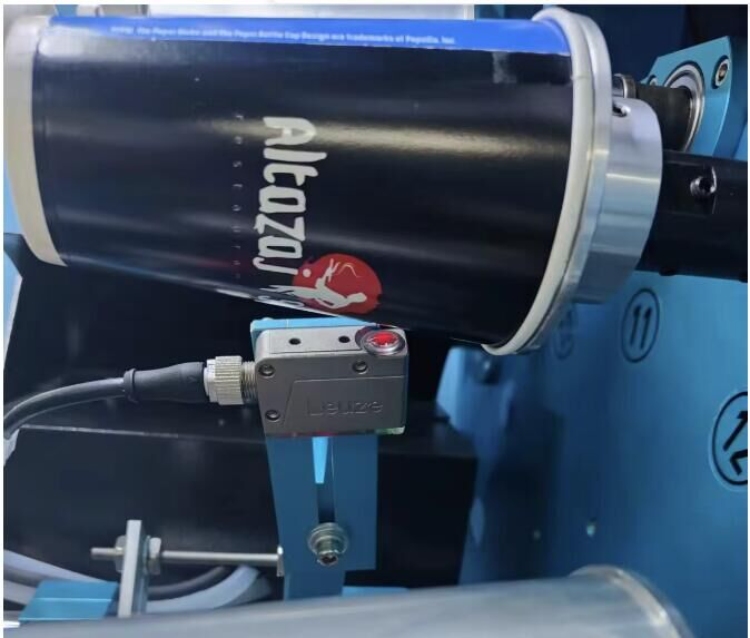

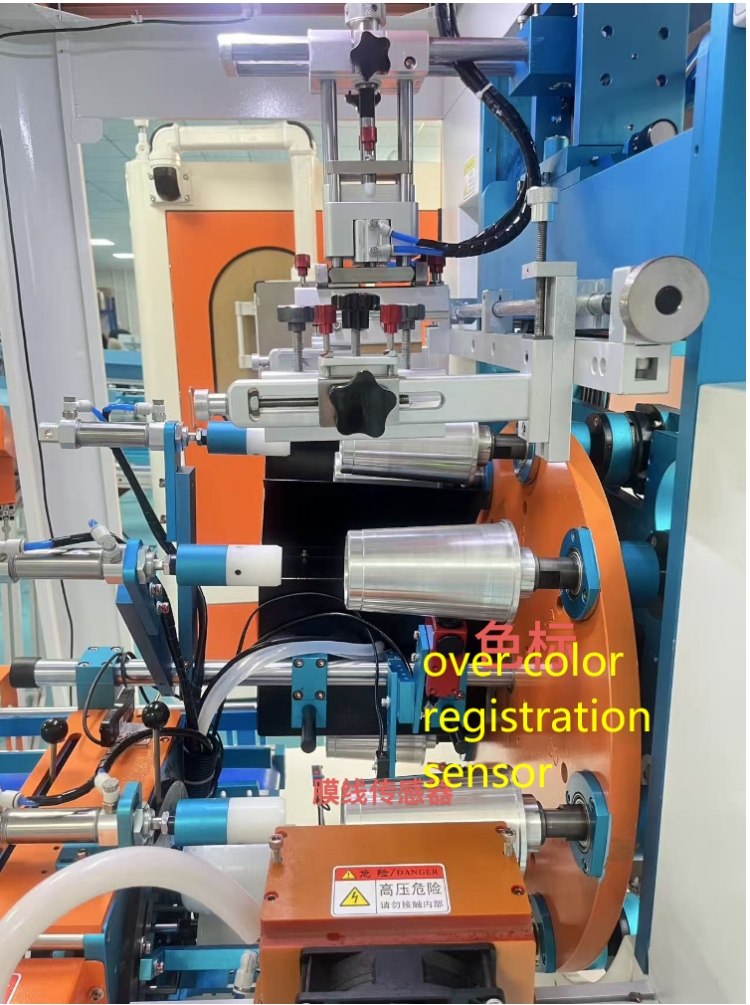

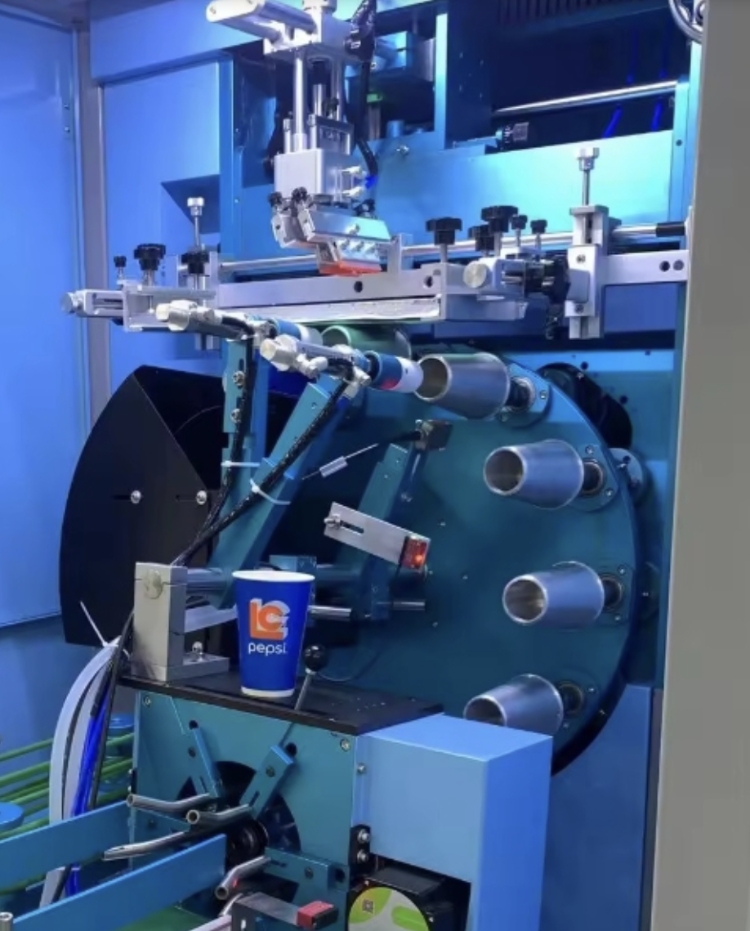

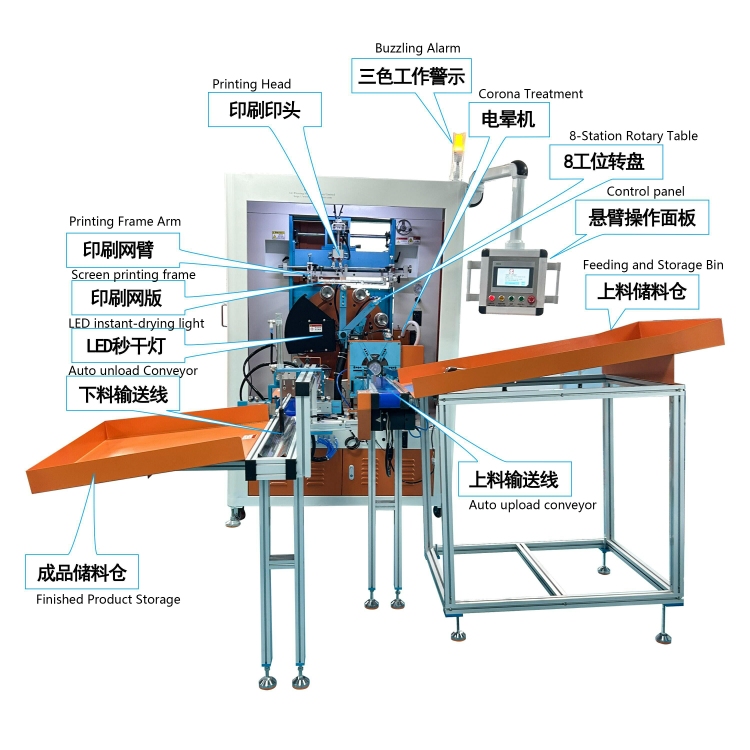

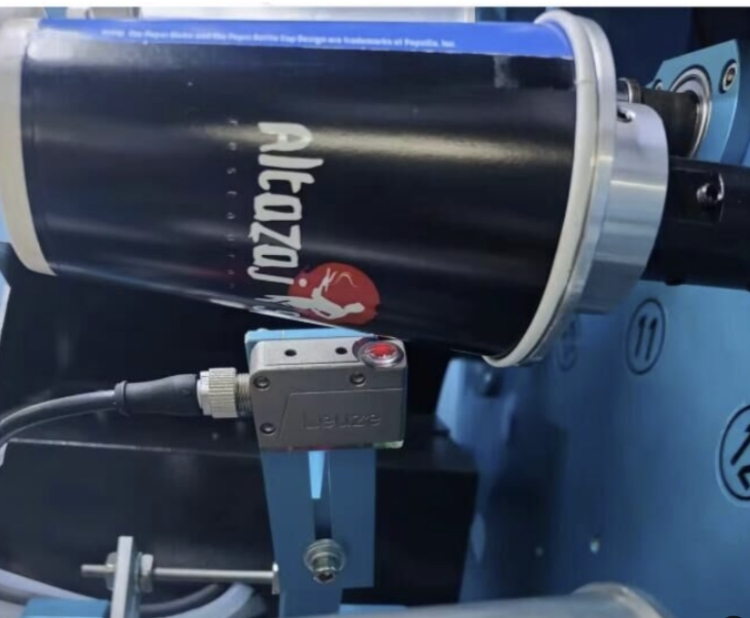

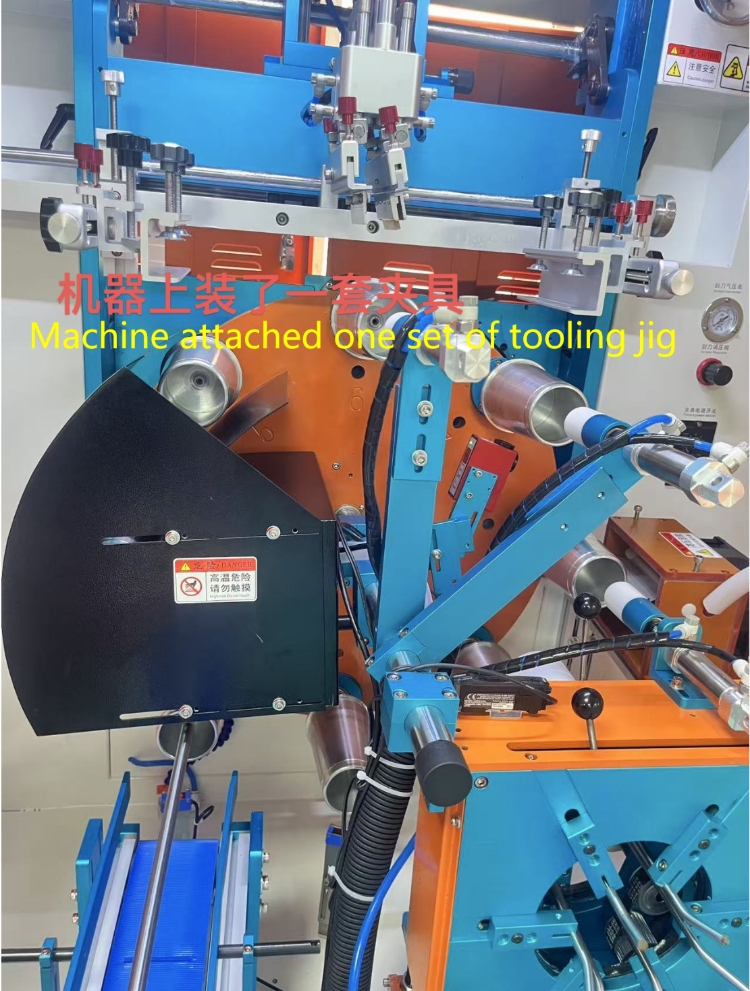

Automatic vertical curved screen printing machine is a full-automatic circular product screen printing machine designed for high speed and high precision printing. According to the all-link mechanical structure, driven by servo motor, high-speed operation without any vibration, advanced structure, the rotation of the rotary table to realize the switch of each station, electronic color marker sensor precise positioning, In order to meet the customer's high precision, high speed and high quality requirements.
