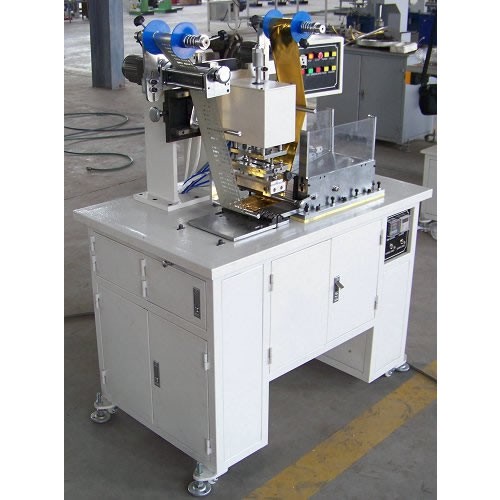

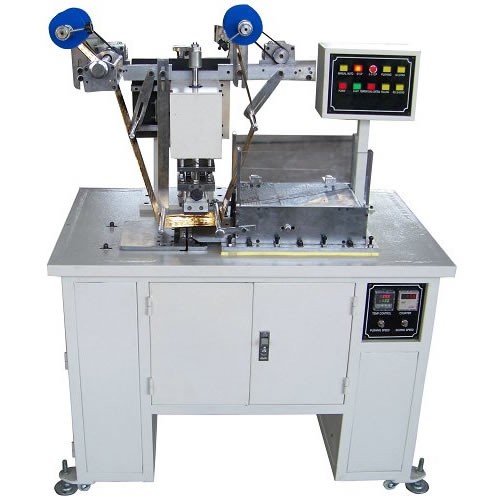

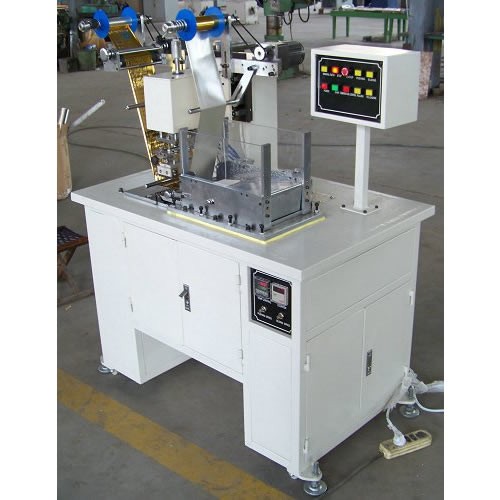

Automatic Hot Stamping Machine For Pens

Description:
Automatic Hot Stamping Machine For Pens
Specifications:
1. Total consume Wattage: 780W;
2. Stamping temperature Rnange:20-300℃;
3. Compress air Pressure:5－8Bbar;

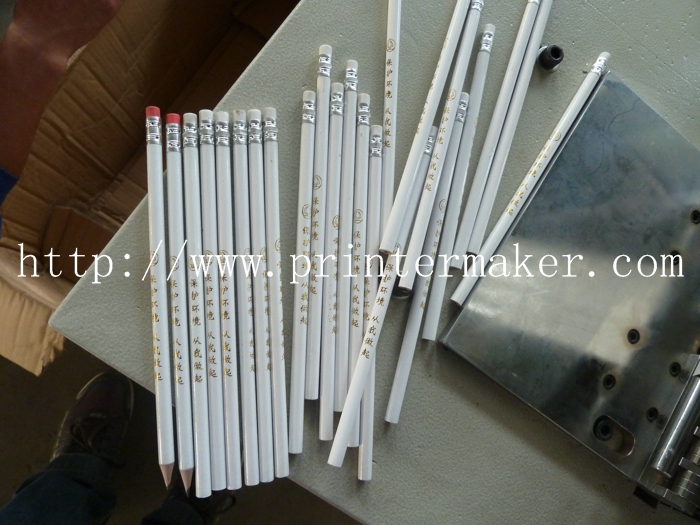

4. Products Diameter:（φ5~Φ15mm）×（150~200mm）
5. Max stamping Speed:2000-3000pcs/hr
6. Outer dimension: 90×60×150cm;
7. Net weight : 290KG

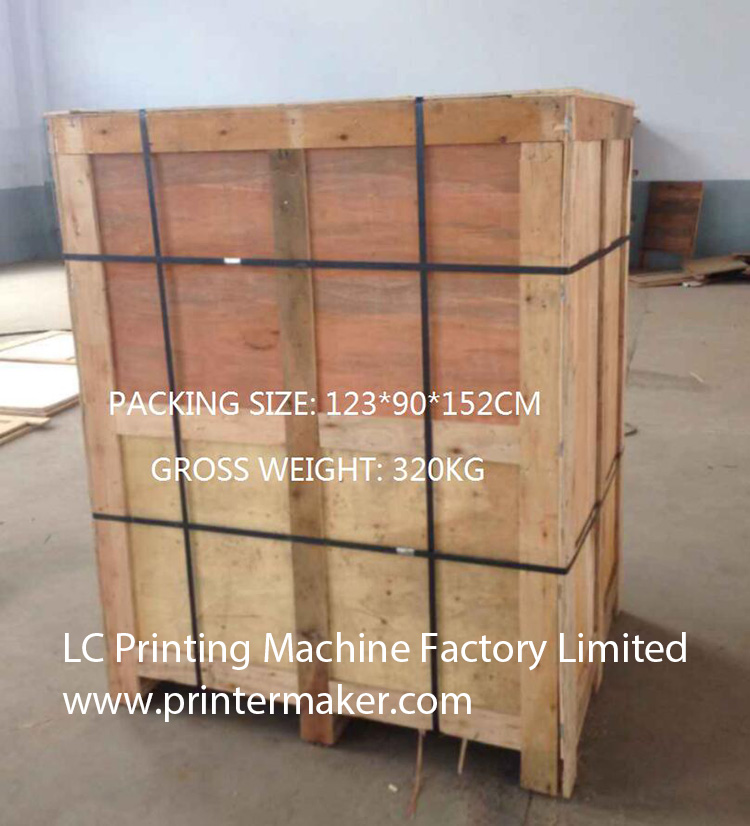

8.Packing Size:123*90*152CM

9.Gross Weight:320KG

Advantages:

1. Vertical Pression design and stabilization Pression;

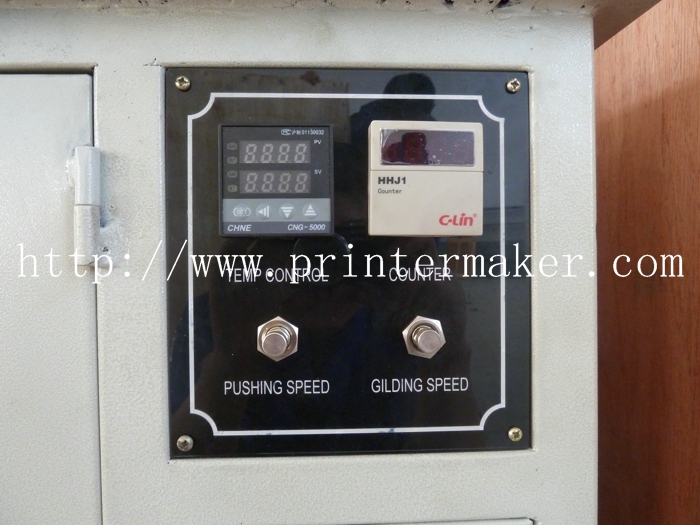

2. Capable of adjusting the stamping pressure, the temperature and the speed;
3. Automatically counter available;
4. Automatic back-and-front worktable ensures safe and quick operation;
5. Worktable capable of slight adjustment of back-and-front, left-and-right and rotation;
6. Automatic foil feeding and rolling with adjustable function;
7. High precision sensor available for foils feeding, ensures good registration;
8. Safe protection device installed。
Machine Fittings:
1. Name card silicon plate 1 pc
2. High temperature paper1 inch;
3. Stamping foil 1 roller;
4. Tool box 1 case;

5. English struction 1 booklet
