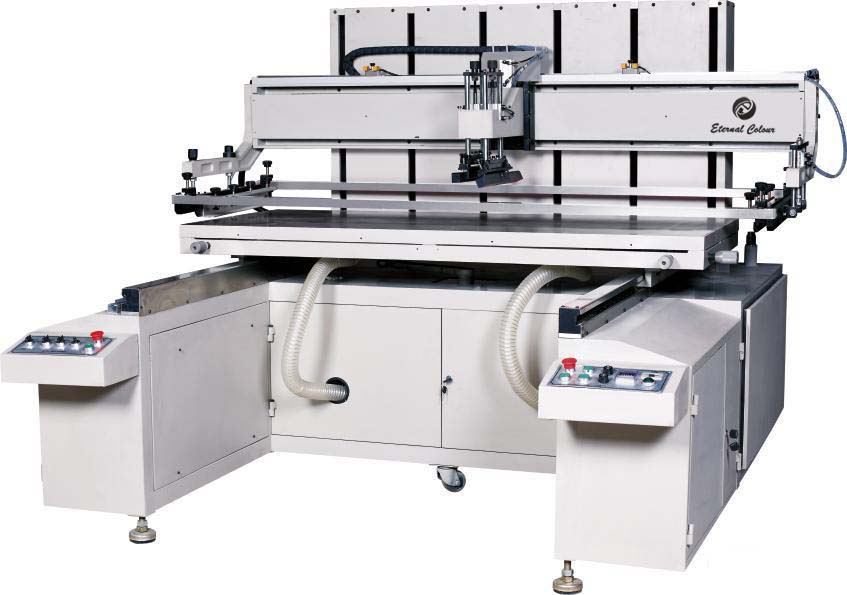

Large Size Flatbed Screen Printing Machine with Sliding Working Table

  • Model Number: SP-70160
  • Category: Flat Bed Screen Printing Machine
  • Views: 657
  • Product Description:Large Size Flatbed Screen Printing Machine with Sliding Working Table
  • PRODUCT DETAIL

Product name:Large Size Flatbed Screen Printing Machine with Sliding Working Table

Model Number: SP-70160

Description:
Large Size Flatbed Screen Printing Machine with Sliding Working Table
This type of electric flat-bed vacuum screen printing machine is suitable for precise screen printing on substrates in PCB Board, Sheet, Film or Cube forms which with smooth flat surface and made of as metal, plastic, ceramic, glass, wood etc...
This type of screen printing machine is widely used in electronic industry, advertising, packing & printing, toy, stationery, gifts, industrial arts fields etc...
Screen printing objects such as resistor, keyboards, silica gel keypads, paster, sticker, nameplate, panels, Plastic Moldings etc
Feature
1. Vertical structure, Compact & space-saving. easy operation and good stability.
2. Printing driven by motor, Installed Linear Guide or Linear Guideway. Printing speed and ink flooding speed are adjustable. Running smoothly and a long work life.
3. Special cushion cylinder installed on the left/ right buffer gear.
4. The motor drive screen frame up and down, two poles guide. Separated buffering air course to keep stability register.
5. Duralumin working table( made according to the international standard cast aluminium JISH5302-2000 ), precise scale micro-adjustable. Planeness keep in 0.05mm, roughness
6. Printing angle/ printing pressure and spacing between screen frame and table are adjustable.
7. Reliable safety device is installed according to CE standard..
Specifications:
Max Printing are:700*1600mm
Max mesh frame size:800*1800mm
Max Printing thickness:0-20mm
Max Printing speed:800pcs/hr
Max Sliding travel:900mm
Air consumption:0.6-0.8 mpa
Power:380V/7.1KW
Price Terms:FOB Guangzhou
Payment Terms:Western Union ,T/T or L/C
Packing: Wooden case
Lead Time: Within 3 days
Standards Certificate: ISO9001-2000,CE
Machine Fittings:
1.One aluminium screen flame
2.One Manual in English
3.One set of tool
Ship Date
1.By sea
within 30 days after receive remittance
2.By air
within 6 days after receive remittance
Warranty
1.Cylinder can be changed for free within 1year,freight collect.
2.Other parts can be changed for free within 2years,freight collect.

3.Warranty period:3years

Large Size Flatbed Screen Printing Machine with Sliding Working Table
