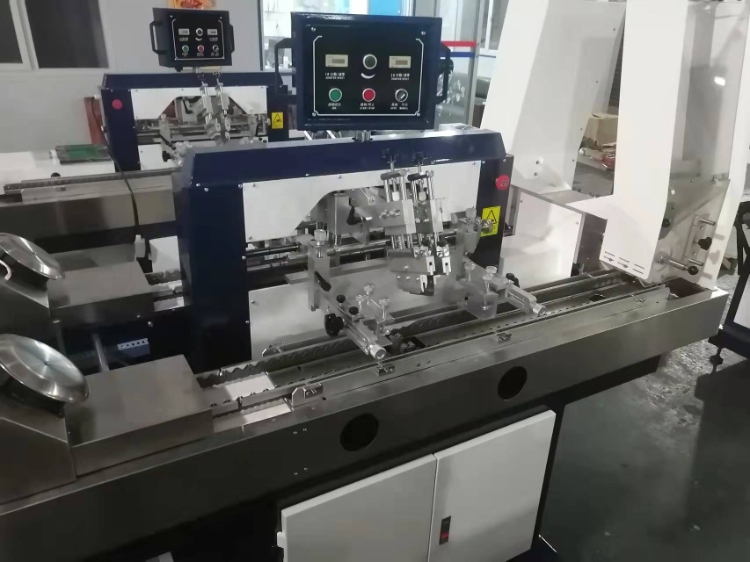

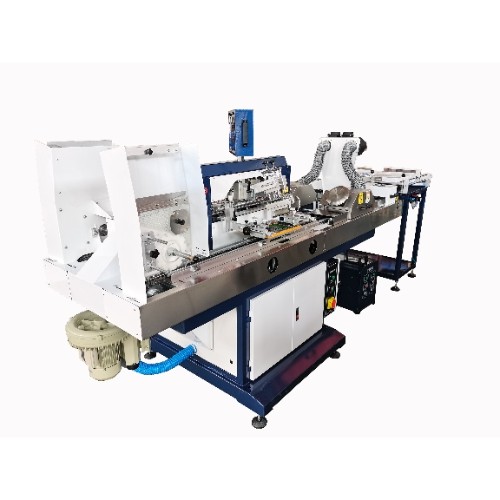

Ampules Automatic Silk Screen Printing Machine

Product name: Ampules Automatic Silk Screen Printing Machine

Model Number: BG2-80A

Parameters:

1. Max. diameter: p6-p16 mm

2. Max. length: 60-120 mm

3. Max.Printing stroke: 20-80 mm

4. Max.Printing speed: 6000-8000 pcs/hr

5. Power supply: 220V 50/60Hz 5.5kW

6. Machine Net/Gross weight: 550/900 kg

7. Machine Dimensions: 3850x1120x1650 mm

8. Packing size: Main Machine: 3100*1220*1550MM

Auto loading&Discharge system: 1220*900*1300MM

Features:

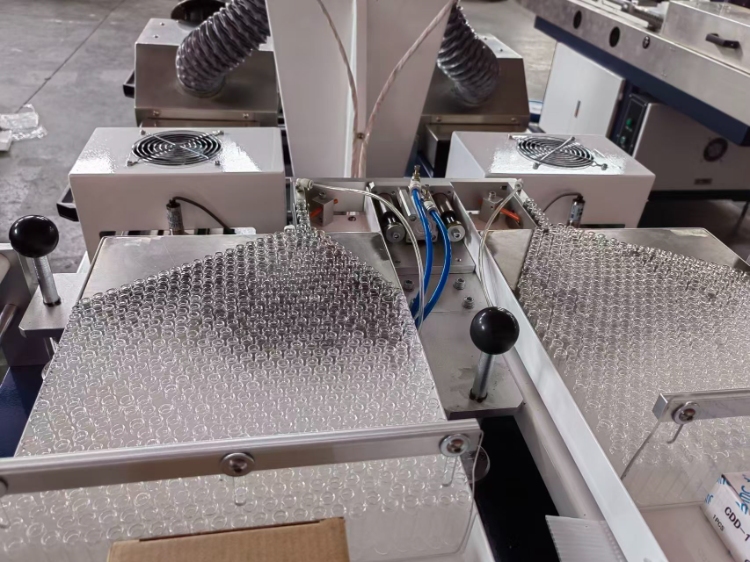

1. Fully Automatic feeding, eliminating frequent manual loading.

2. Full Automatic discharging; workpieces maintain the same state after printing without re-packing.

3. Optional UV, LED or IR drying systems.

4. Equipped with workpiece adsorption function, suitable for 360° seam printing.

5. Single-person operation with dual-track simultaneous running.

6. High-speed printing: 7000-8000 pcs/hr.

7. Capable of printing two different types or sizes of ampoules or vials at the same time.

8. Dual-doctor blade design for cleaner and more reliable printing and inking.

Functions:

1. Fully mechanical structure with PLC control; automatic loading and unloading, supports single or dual workpiece printing with stable operation.

2. Printing stroke and speed are freely adjustable.

3. Inverter-controlled constant torque operation ensures consistent printing quality.

4. Printing and drying are completed synchronously.

5. Widely used for high-speed single-color printing of ampoules, vials, medical test tubes and similar products.
