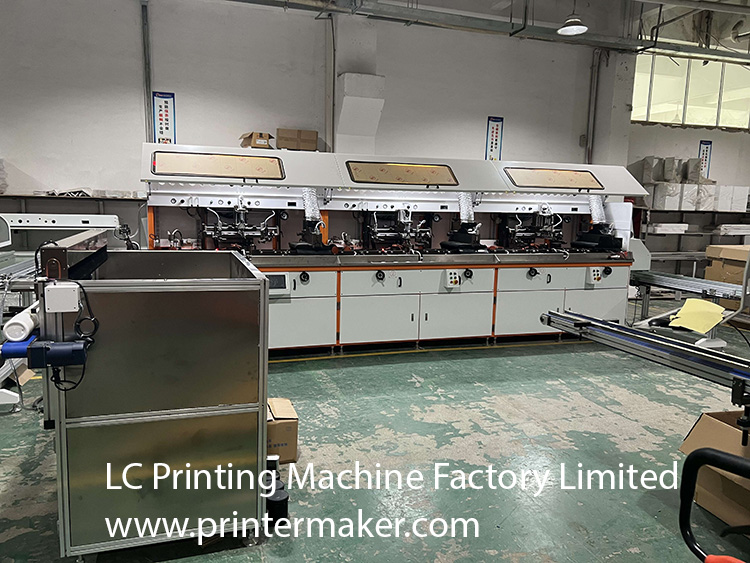

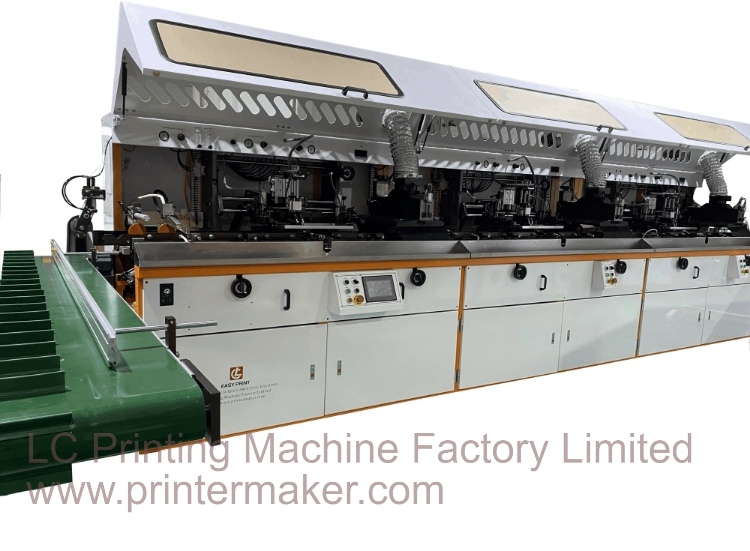

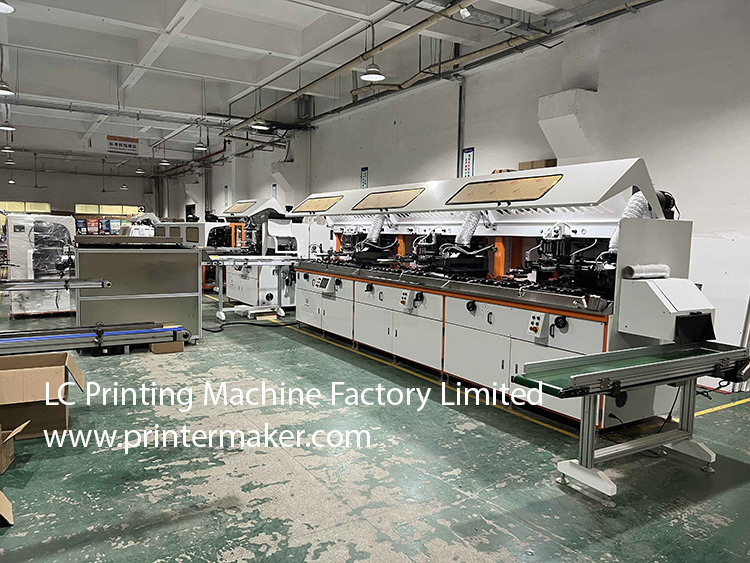

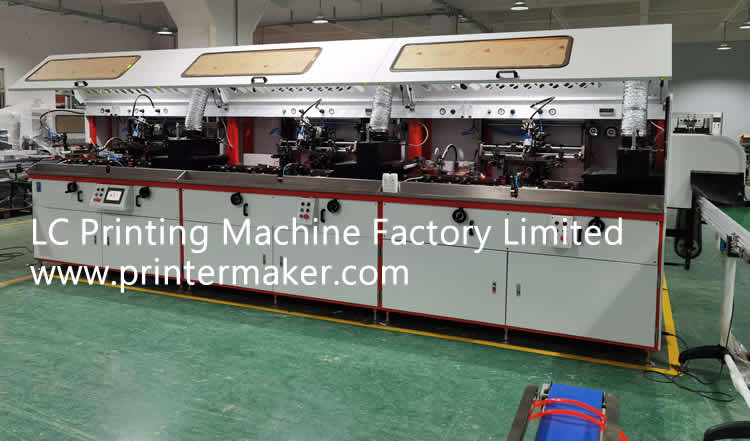

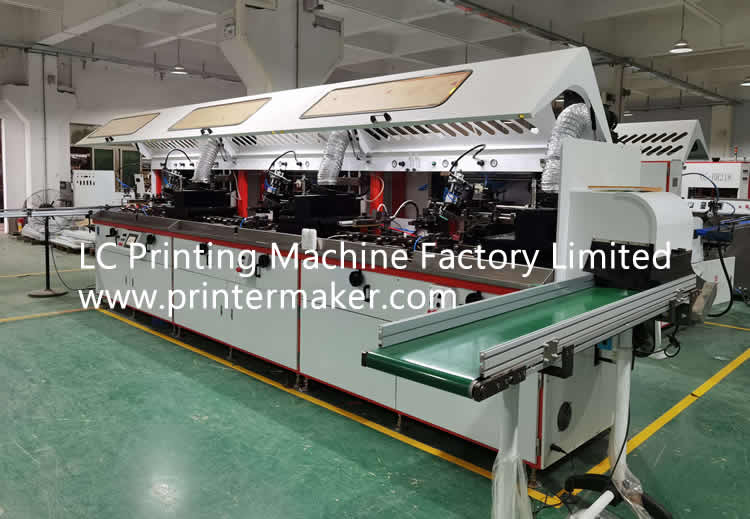

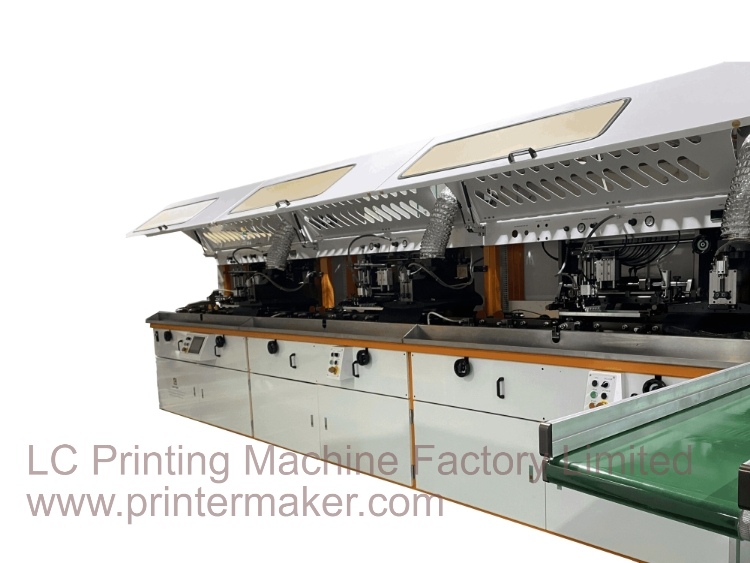

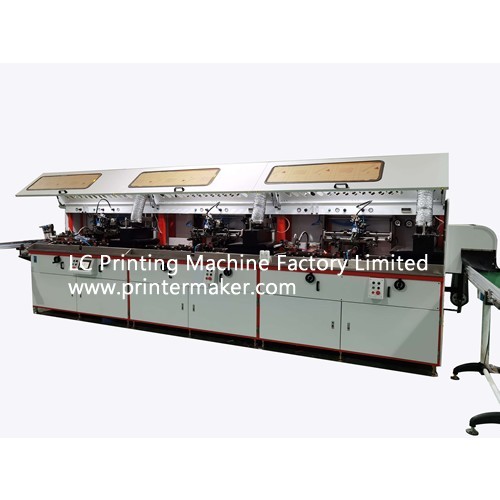

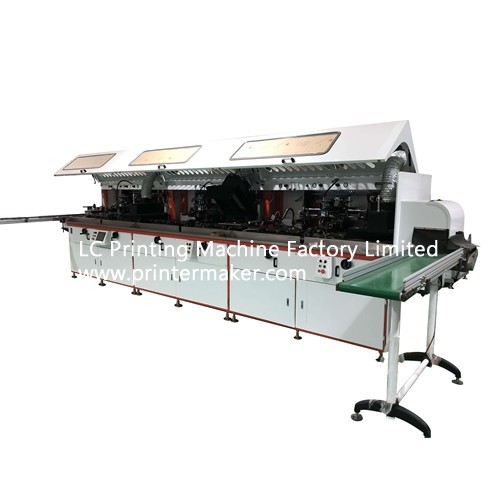

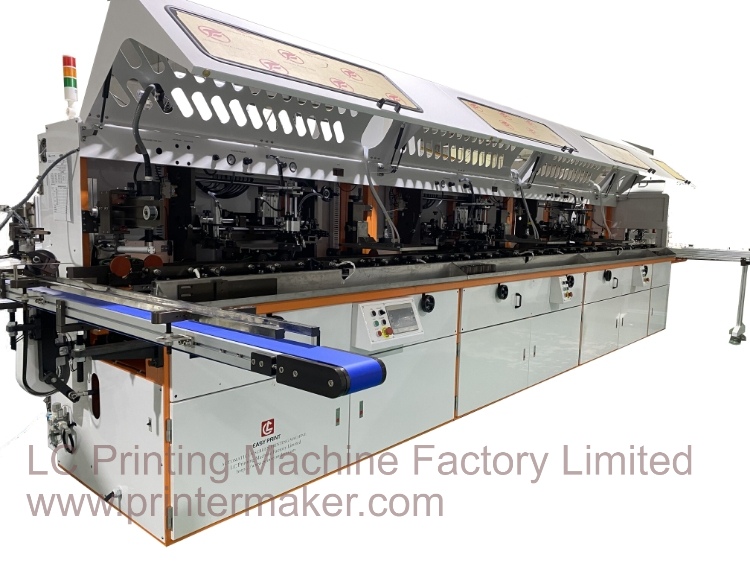

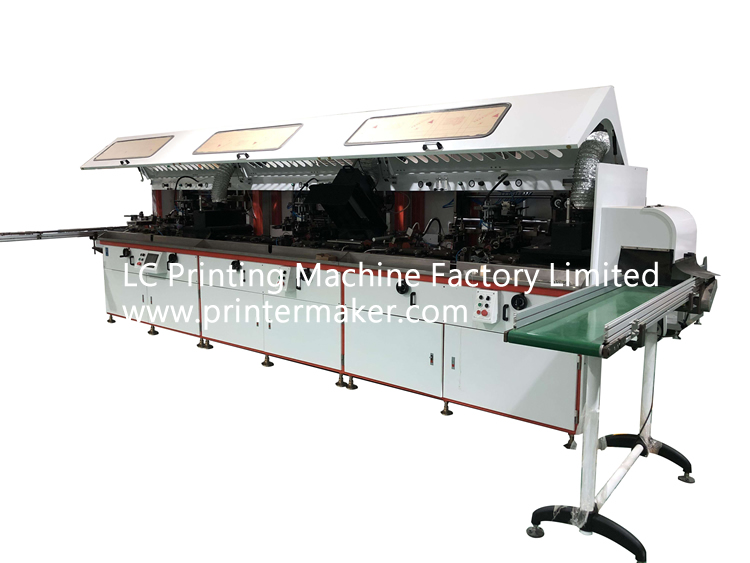

Product name:3 Colors Automatic UV Silk Screen Printing Machine
Model Number: S-103MDescription:
New Upgraded 3 Color Automatic Silk Screen Printing Machine
Latest upgraded mechanical driven automatic UV silk screen printing machine. Compare with the traditional
pneumatic driven automatic UV silk screen printing machine, the latest designed mechanical driven automatic
UV silk screen printing machine is with advantages as below:
1: Much Higher Working Capacity
2: Lower noise and perfect working stability because of the mechanical driven
3: High précised and perfect registering multi-color printing
4: Easy setting up for tooling change between oval, round and flat shape bottles and containers
5: equipped with electronic control UV curing system to adjust the UV density ranges from 0-100%
1.Printing Speed: Round: 3500pcs / hr ;Oval 4000pcs / hr
2:Product size: Round: φ100X280mm ; Oval: Oval Width 25-100mm Length 25-280mm
3.Printing Size: φ100X260mm for round; 100-260mm for oval
4.Compressed Air: 0.6MPa
8.Power Unit:380V/3P 50Hz 15KW (220-240V,3Phrases, 60HZ optional)
9: Mercury UV lamp power rate: 5KW*3 sets

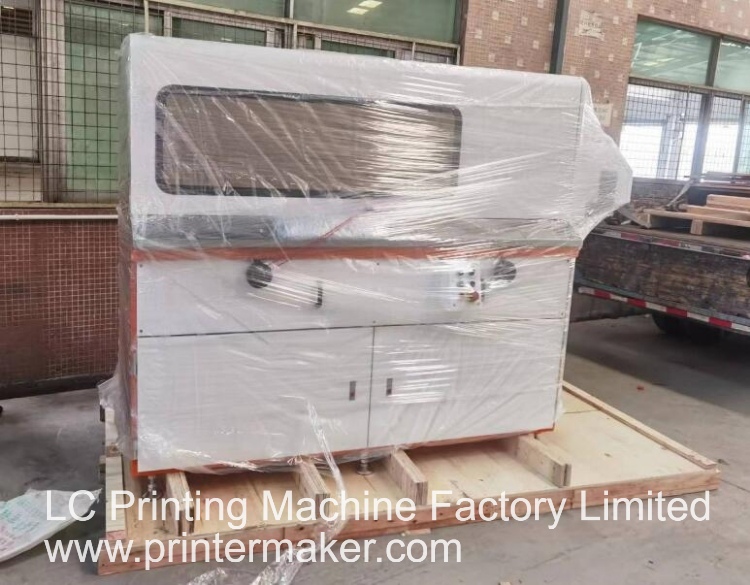

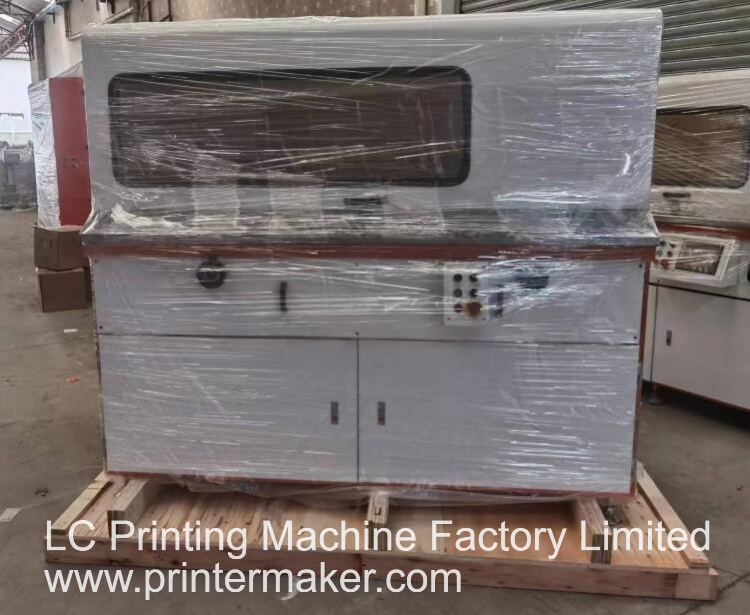

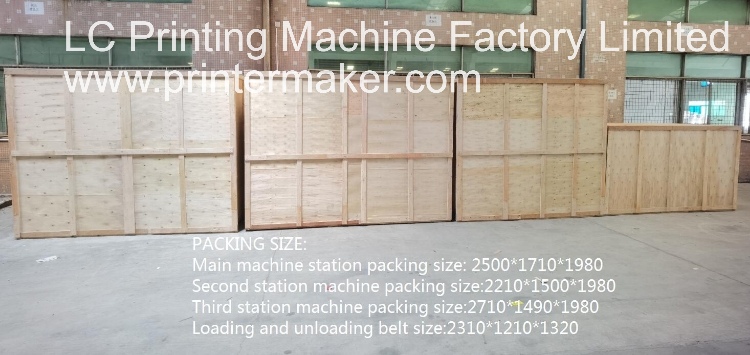

11.Packing Size:(2910*1980*2000CM)* 3 cases
12.Net Weight: 3000KG
1:Cam-linkage mechanisms driving mode combined with PLC control system for effectively guarantee working stability,
reliability, and most efficiency.
2:Reliability: Main components from Rexroth, Schneider, SMC, Mitsubishi international brand. The machines hardware
parts are made by CNC directly from CAD.
3: Machine Frame & structures made by high-intensity aluminum alloy and stainless steel.
4: With PLC control system, touch screen interface. Fast setup & quick tooling change over for customer's easy operation
5: Adopted with No-product- no print system, auto counter, safety alarm device.
6: Optional: Made based on the customer's special requirements. The round & oval bottles commonly used devices,

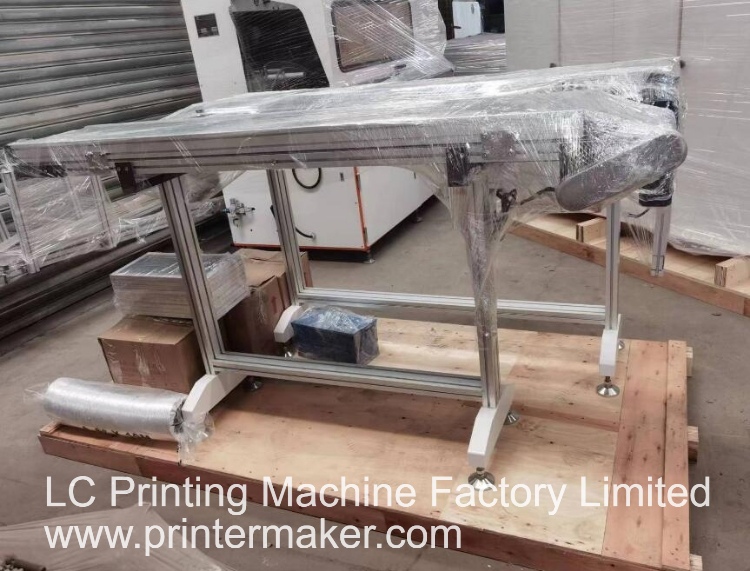

antistatic dust removing device, extra set flame treatment, UV/IR system, auto scrambler system, offloading conveyor,
offloading robot arm to have bottles stand up on the off conveyor belt and any other customizations due to order.7: Italy Style Electronic UV Curing System for mostly power rate saving, assuring the UV lamp’s longest life span,
adjustable UV identity from 20%-100%.
