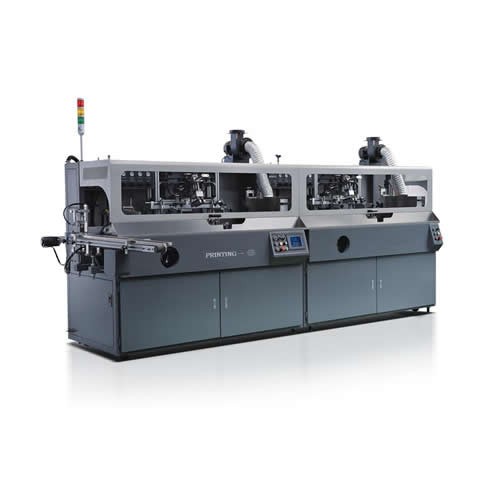

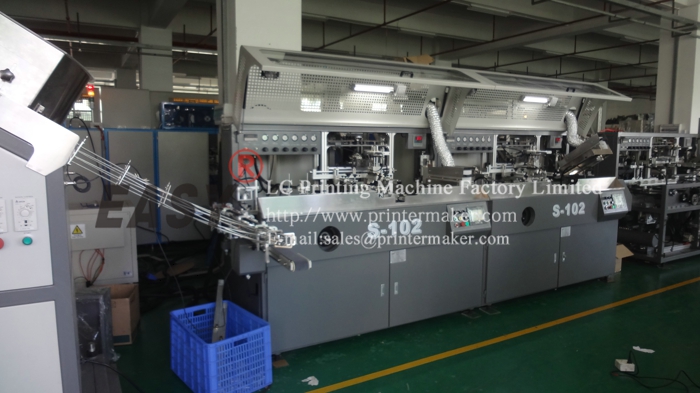

Product name:Automatic Cylindrical Screen Printing Machine

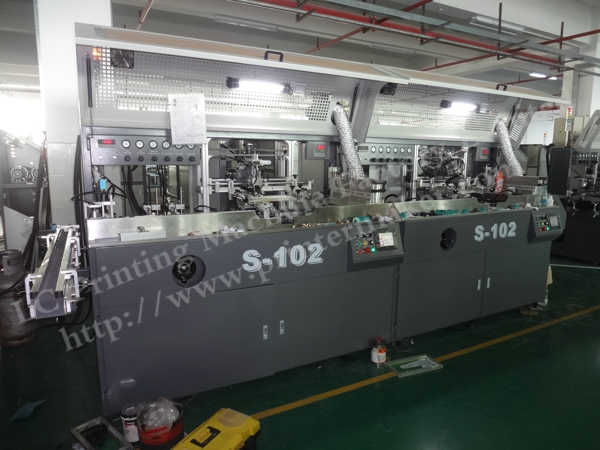

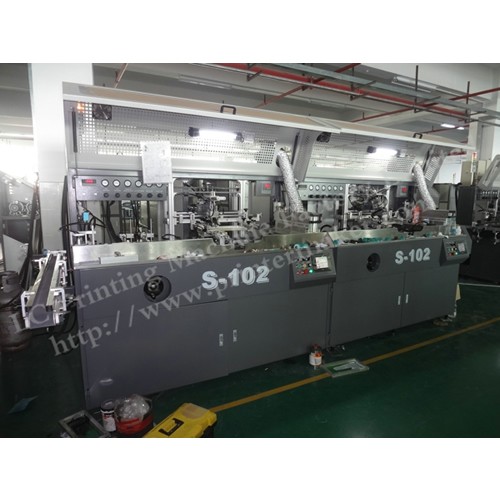

Model Number: S-102

Description:
Automatic Cylindrical Screen Printing Machine
Automatic Cylindrical Two Color Screen Printing Machine
Specifications:
1.For cylinder bottle: 4000PCS/HR
2.For ellispcs bottle: 5000PCS/HR
3.Printing diameter: 25mm-90mm
4.Compress air: 5Bar
5.Liqiud gas: 1.5Bar
6.Dominate Machines: 1900mm*1200mm*1600mm

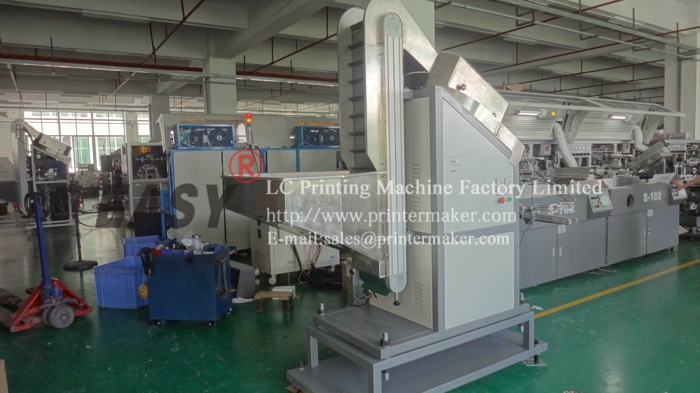

7.Scrambler: 3050mm*1300mm*1500mm
8.Vice Machines: 2290mm*600mm*750mm
9.Mainly power: 380VAC/3-PHASE/8KW
10.Feed motor: 380VAC/3-PHASE/1KW
11.Transmission motor:: 220VAC/1-PHASE/0.2KW
Advantages:

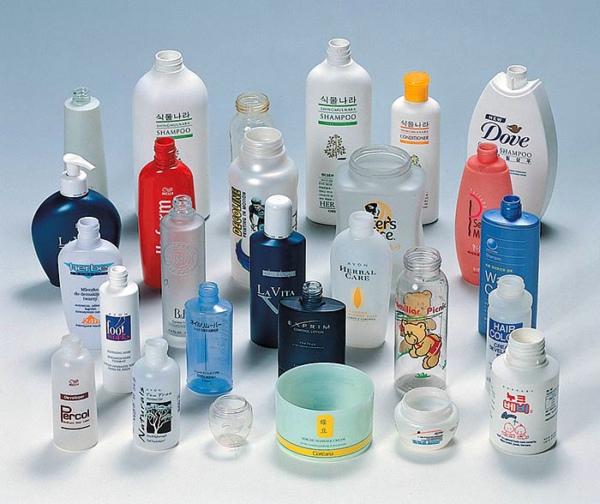

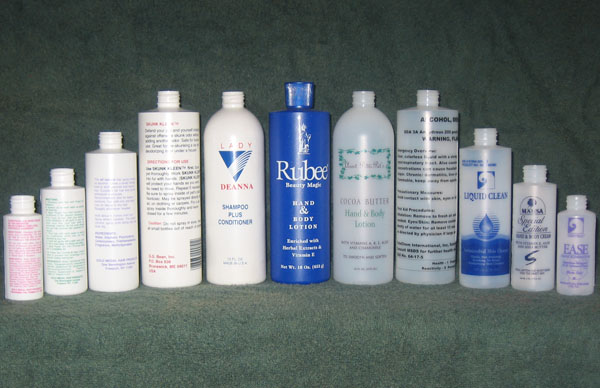

1.Full automatically printing suitable to print on various shades of cylindrical, elliptical and falt workpieces;

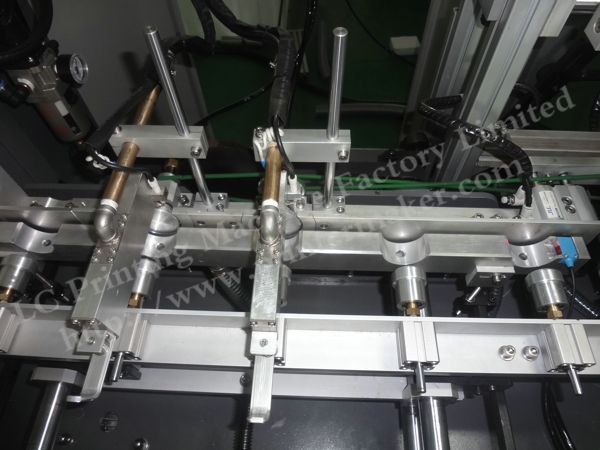

2.Coupled with auto workpiece feeding and loading system;
3.Flame treatment device adopted for re-treatment on PE or PP workpieces to get ultimate ink adhesion;
4.The function of workpiece placing in advance is built-in aiming on cylindrical or elliptical printing;
5.Electric sensor creates "no workpiece no printing" that leads to intelllgent monitor and smart control;

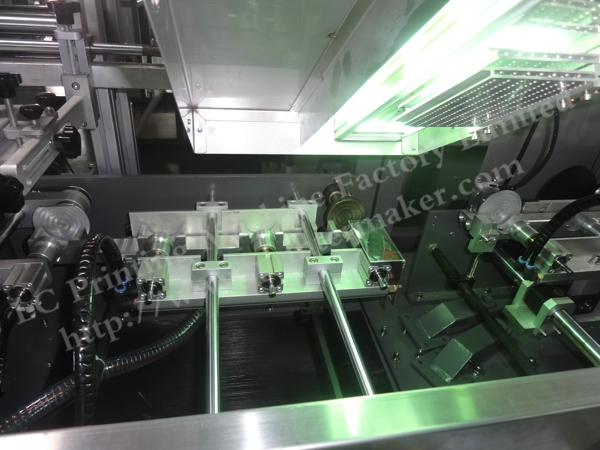

6.High quality UV curing system adopted to ensure fast ink drying and color registration;
7.High printing speed that up to 4000pcs/hr will bring you with high productivity;

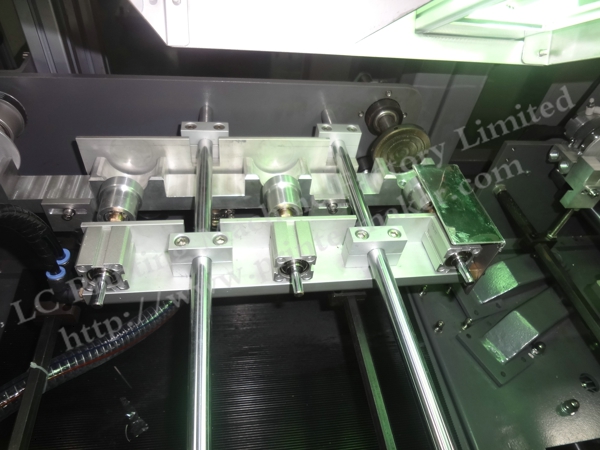

8.Conveniently and easily fixture adjustment and change that save your valuable time;

9.Multi-sets of this machine can achieve 2-color, 3-color and even 4-color auto printing system.

Automatic Cylindrical Screen Printing Machine

Automatic Cylindrical Screen Printing MachineAutomatic Cylindrical Screen Printing Machine
