2 Color 1 Station Screen Press With Flash Dryer

  • Model Number: RSP-102FD220V
  • Category: Screen Printing Press
  • Views: 233
  • Product Description:2 Color 1 Station Screen Press With Flash Dryer
  • PRODUCT DETAIL

Product name:2 Color 1 Station Screen Press With Flash Dryer

Model Number: RSP-102FD220V

Description:

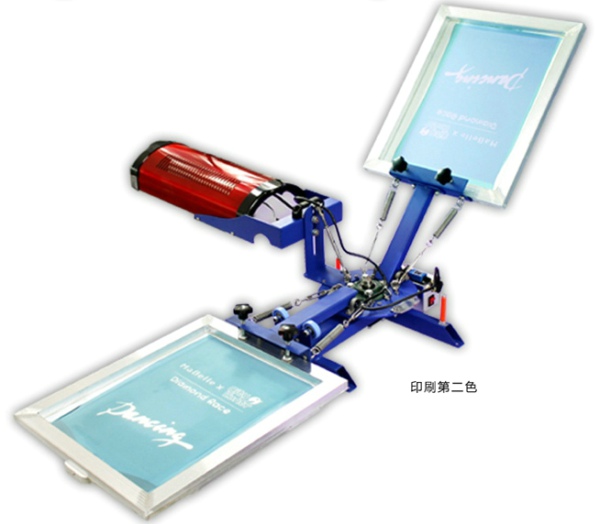

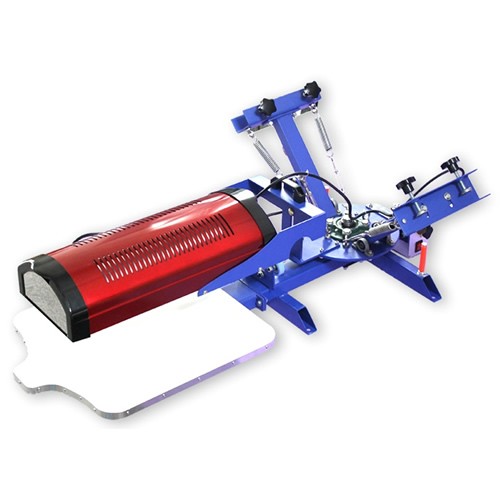

2 Color 1 Station Screen Press With Flash Dryer
The 2 Color 1 Station Flash Dryer Screen Press is newly R&D by our company, it is two color overprintable and there is a infrared flash dryer between the two arms, it will be so convenient for you to print
and dry now, the flash dryer is also rotary and no need for an extra flash dryer anymore, save you so much money and improve your efficiency at the same time! This is really a good news for screen printing
industry.
Parameters:
1.Heating Tubes:Far-Infared heating tubes
2.Voltage:220V/50HZ
3.Power:1600W
4.Flash Dryer Switch:Rotating Position Switches
5.Net weight:30KG
6.Gross weiht:33KG
7.Packing size:includes 2 parts
1#.610*590*330mm
2#.760*300*220mm
Superiority:

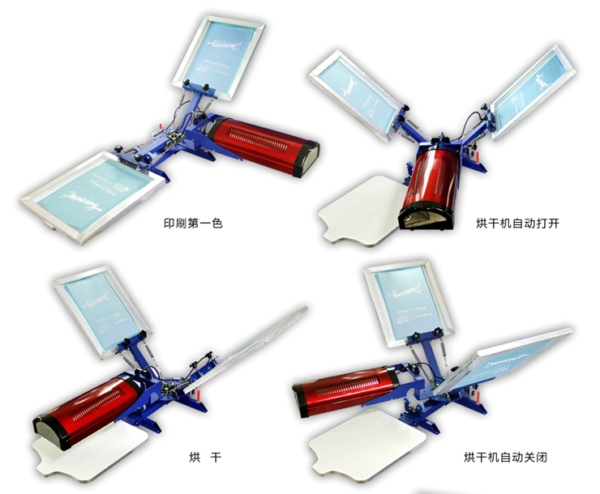

1.Easy operation, high efficiency: with the infrared flash dryer installed, the operator can greatly improve the printing efficiency, after you print one color, rotate the flash dryer to dry the ink, and
then directly rotate the second arm to print the other color.

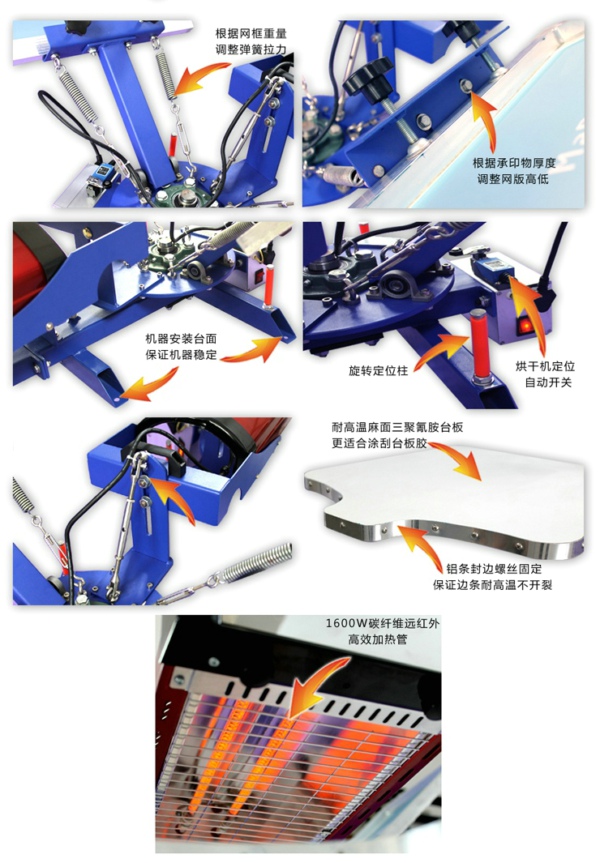

2.High heat efficiency, saving energy: the 1600W flash dryer adopts carbon wave infrared heating tube, the heating area is about 14”x20”, the strong penetrating power of its heat radiation, fast heating
and high heat efficiency greatly improve the drying efficiency. The temp of the flash dryer can reaches 240C and the lifespan of the heating tube is 5000 hours.
3.The height of the flash dryer head is adjustable in 5.5 inches (14cm) to meet different needs of different products and different temp.
4.The flash dryer installs automatic switch, when you rotate the dryer to the pallet to dry, switch on, rotate the flash dryer away from the pallet, switch off, which makes it safe and saving energy.
5.The pallet adopts high temperature resistant melamine board, corrosion resistant, easy cleaning and no deformation. The edge of the pallet is fixed by aluminum alloy to prevent the pallet from deformation.
The surface of the pallet is a little rough, so it is very easy to apply the pallet adhesive.
6.The press is specially designed for t-shirt, the t-shirt pallet will make it easier for the registration of the design.
7.Special design of spring devices in screen adjusting up and down makes it easier for the user operations according to the sizes and weight of the screens, which guarantees proper spring intensity to avoid
squeegees expelling and inks splashing in higher intensity and screen unfixing because of higher weight of screen frames and squeegees in loose intensity.
8.The press is specially suitable for overprint product, such as t-shirt, pillows, bags and no-woven bags. The user just need to change the pallet, and it is also very easy to do this.
9.The height of the screen in the screen clamp head can be adjusted in 2 cm.
10.All the metal materials are stainless steel and power coated, easy to clean and no rust.
11.The machine adopts assembly structure which makes the package size very little and saving shipping cost. It is also very easy to install the machine, there are installation videos, description and all
installation tools in the box, the user will easily install the machine.
12.The machine is packed by the international carton, all the spaces in the parcel are filled by foam, the top and bottom of the carton are all padded by boards, protect the machine from any destroy and

specially suitable for long transport and international sale.

2 Color 1 Station Screen Press With Flash Dryer

2 Color 1 Station Screen Press With Flash Dryer

2 Color 1 Station Screen Press With Flash Dryer
