Flash Dryer with Two Drying Platform

  • Model Number: SD-Dryer-1600W2P
  • Category: Screen Printing Press
  • Views: 220
  • Product Description:Flash Dryer with Two Drying Platform
  • PRODUCT DETAIL

Product name:Flash Dryer with Two Drying Platform

Model Number: SD-Dryer-1600W2P

Description:

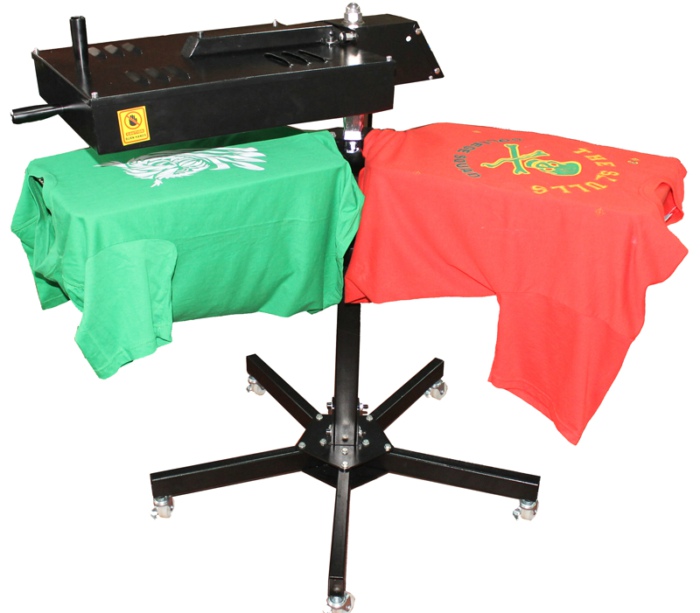

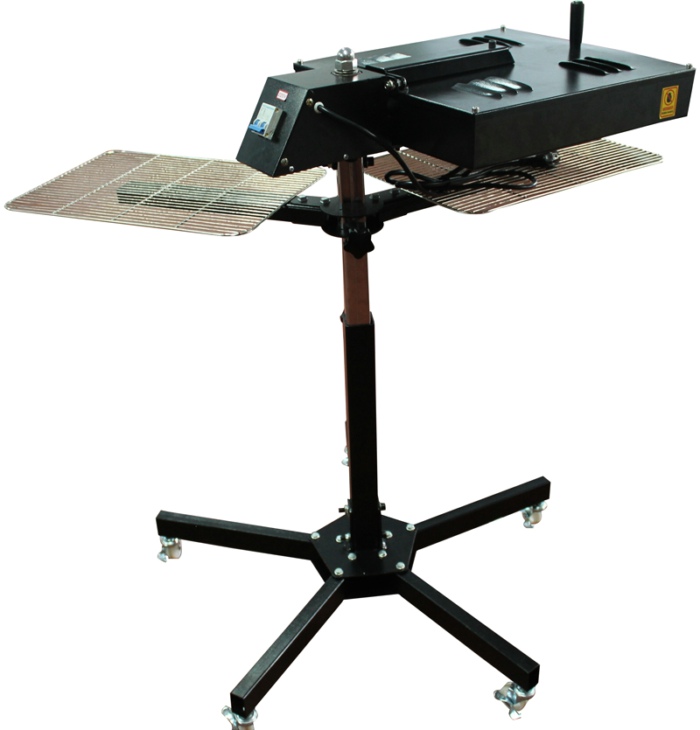

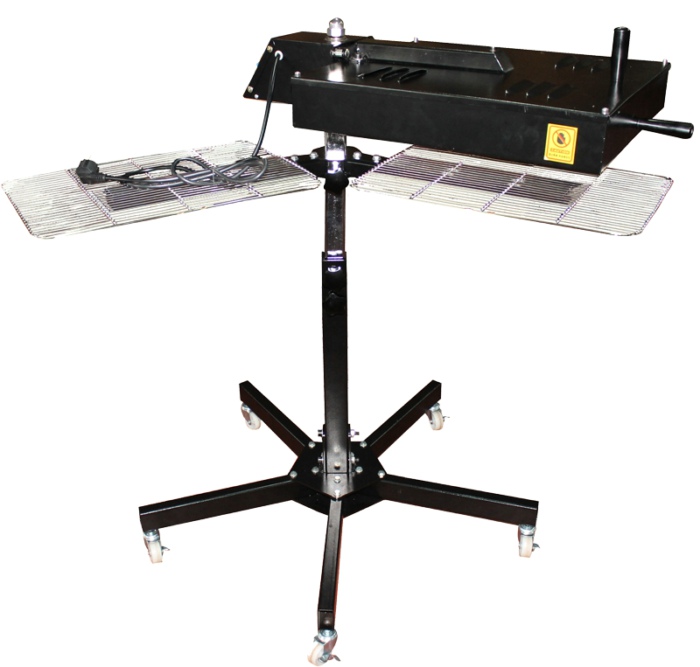

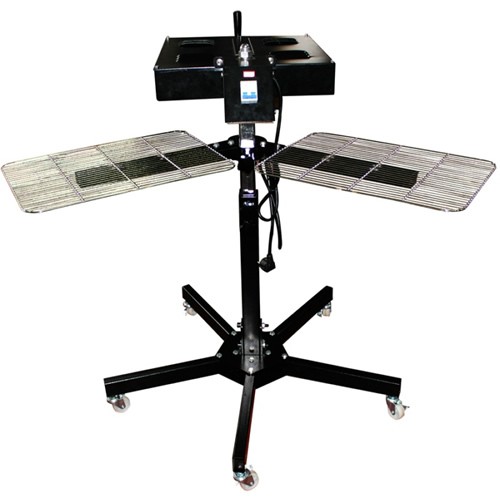

Flash Dryer with Two Drying Platform
This is our newest product in 2012. Its drying box could rotate in 360 degree, which is much helpful for quick drying during printing process and fully dried after printed process. What’s more, with its two drying platform, it’s much convenient for drying process after printed. Besides, it could also be used to dry the screens, etc.
Parameters
1.Input voltage:110V
2.Power:1600W
3.Drying Box Sizes: 17.7”x19.3” (45x49cm)
4.Drying Platform Sizes: 13”x18.9” (33x48cm)
5.Drying Box Baking Area: 15.7”X15.7” (40x40cm)
6.Height adjustable range: 24.4”-39.4” (62-100cm)
7.Shipping Weight:66Lb (30kg)
8.Packaging Dimension: 34"x20"x14"(86x51x36cm)
Main Features
1.360 Degree Rotary Drying Box: The drying box could be rotated in 360 degree; Just turn it above the substrates which you need to be dried, after hearing a “click”, it will stop moving. Then turn on the switch and it will begin working.
2.Height Adjustable Drying Platform: The height of the two drying platform could be adjustable, only loosen the upper two screws on the chromium-plated tube, lift or lower the drying head according to your needs, then tighten them, that’s ok.
3.Height Adjustable Drying Box: The height of the drying box could be adjustable, only loosen the two bottom screws on the black knighthead, lift or lower the drying head according to your needs, then tighten them, that’s ok.
4.Movable Foundation with Lock Device: The flash dryer is movable as it has truckles equipped, which is much convenient for moving to where you need. However, with its lock device equipped on the truckles, you could also fix it while using.
5.Strong & Stable Foundation: It is composed with five beam legs, which makes it much stable after installation.
6.This machine adopts full metal structure and all parts are stainless steel materials, which is in advanced electrostatic spraying, elegant appearance, convenient in cleaning and no rust

7.Composite structure & excellent packaging for convenient transportation. Equipped with installation video, manual instruction, full set installing and maintenance tools and spare parts.
