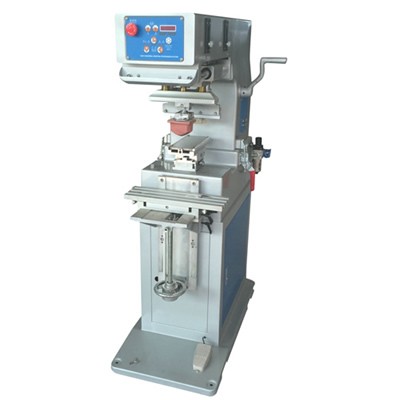

1 Color Close Ink Cup Pad Printing Machine

  • Model Number: M1-250T
  • Product price: US$:negotiated
  • Category: Ink Cup Pad Printing Machine
  • Views: 4527
  • Product Description:1 Color Close Ink Cup Pad Printing Machine
  • PRODUCT DETAIL

Product name:1 Color Close Ink Cup Pad Printing Machine

Model Number: M1-250T

1 Color Close Ink Cup Pad Printing Machine
Specifications:
1. Model No:M1-250T
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 80*135mm
5. Plate area: 100*250 mm
6. Sealed Ink cup diameter: 60 or 90 mm
7. Max printing speed: 1800PCS/H
8. Wattage: 220V/ 50Hz 110V/60Hz
9. Air pressure: 6 Bar
10. Machine size: 95*63*150CM
11. Machine weight:170kg
12. Packing size:100*70*160cm
13. Goss Weight:200KG

Advantage
1. Controlled by microprocessor, easy operation, running stably and accurately.
2. 4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent the ink from    drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. With long slide stroke to print large size workpiece.

Machine fitting:
1. One pcs steel plate
2. One pcs rubber pad
3. Work box
4. English operating instruction

Price Terms︰ FOB GuangZhou
Payment Terms︰ T/T WESTUNION
Packing︰ WOODEN CASE
Lead Time︰3 DAYS AFTER PAYMENT
Standards Certificate︰ CE
Machines Fittings ︰ SILICONE RUBBER PADS,
Main Parts︰ SMC CYLINDER MADE BY JAPAN
Application area︰Plastic Products,Toys, PENS ,Stationery, Rule
