Two Color Ink Cup Pad Printing Machine

  • Two Color Ink Cup Pad Printing Machine
  • Two Color Ink Cup Pad Printing Machine
  • Two Color Ink Cup Pad Printing Machine
  • Model Number: Mini2-215T
  • Product price: US$:negotiated
  • Category: Ink Cup Pad Printing Machine
  • Views: 5221
  • Product Description:Two Color Ink Cup Pad Printing Machine
  • Video

Product name:Two Color Ink Cup Pad Printing Machine

Model Number: Mini2-215T

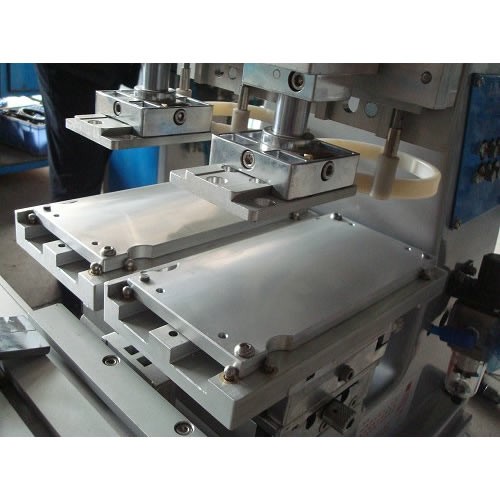

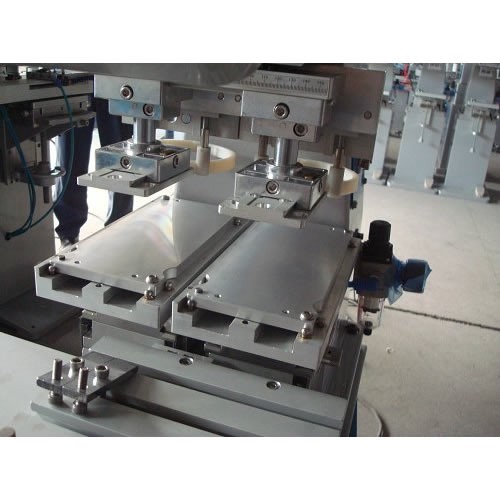

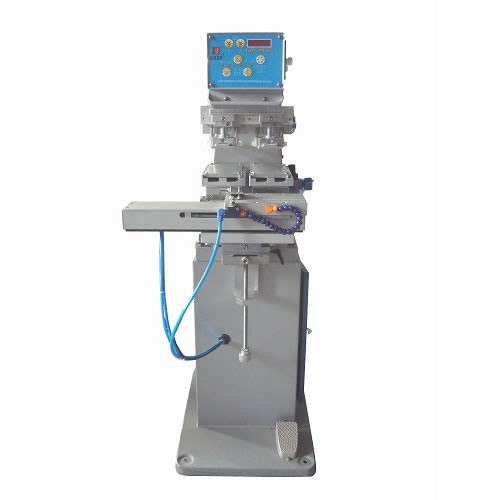

Two Color Ink Cup Pad Printing Machine
MINI2-215T is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on.It also suitable for small printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,electronic appliance,crafts and so on The wolfram steel scraper which is made by the newest Nanotechnology is used on the sealed cup pad printer,with a degree of HRC63 of the hardness on the surface,it also have high resistance and can be used for almost 3,000,000 times.This type of the machine is more environmental and can save more ink when compare with the traditional ink-well Pad printer.
It is with closed ink cup, can save 60% ink and 90% thinner comparing with open ink plate.
Pad printer with close ink cup has exterior beautiful, small, easy operateing, high quality, environment friendly /acceptable, competitive price, useful for small products, same as toys, pen, stationery, gift, elc products...
1. Model NO: MINI2-215T
2. Operation: Pneumatic
3. Printing Colors: 2
4. Plate area: 100*215mm
5. Cup diameter: Φ 90mm
6. Max printing area: 80*90mm
7. Max printing speed: 850PCS/H
8. Wattage: 220V/ 50HZ-110V/60HZ
9. Machine size: 60*55*130(LxWxH)
10.Gross/Net Weight: 116kg/75kg
11. Packing Size:65*57*133CM
Free Fitting:
1. One pcs silicone rubber pad
2. A suit tool
3. English operating instruction
4. Catalogue
Price Terms --FCA,FOB,CFR,CIF
Payment Terms--- T/T or LC
Packing ----wooden crate
Lead Time ----2 days after confirm Payment
Standards Certificate ---CE
Gross Weight ---116KG
Main Parts ----FESTO cylinder made by SMC
Application area -----toys, pens, keyboard, plastic products, laber, hardware
1. Controlled by microprocessor for easy operation.
2. Five-digit auto counter built-in;
3. High intensity coin aluminium machine structure frame;
4. Sealed cup is used for ink covering and store, Keep ink viscidity stabilization and environment clean;
5. Independent pads up/down stroke and speed adjustment;
6. Printing speed adjustable to fulfil various printing requirements;

7. Able to sweep forward/backward without lowering pad to avoid ink drying at intervals

Two Color Ink Cup Pad Printing MachineTwo Color Ink Cup Pad Printing Machine
