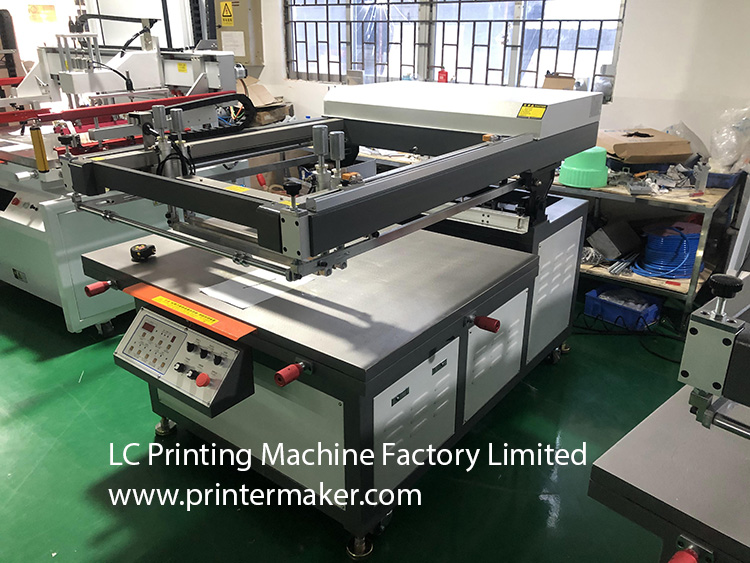

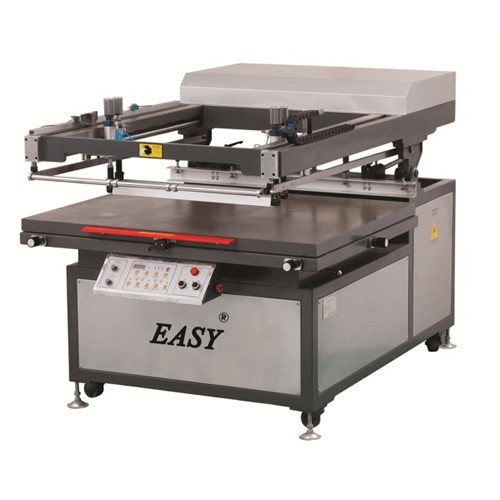

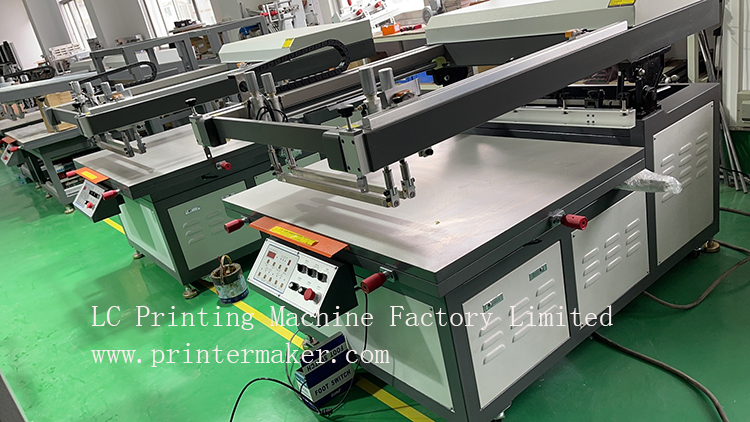

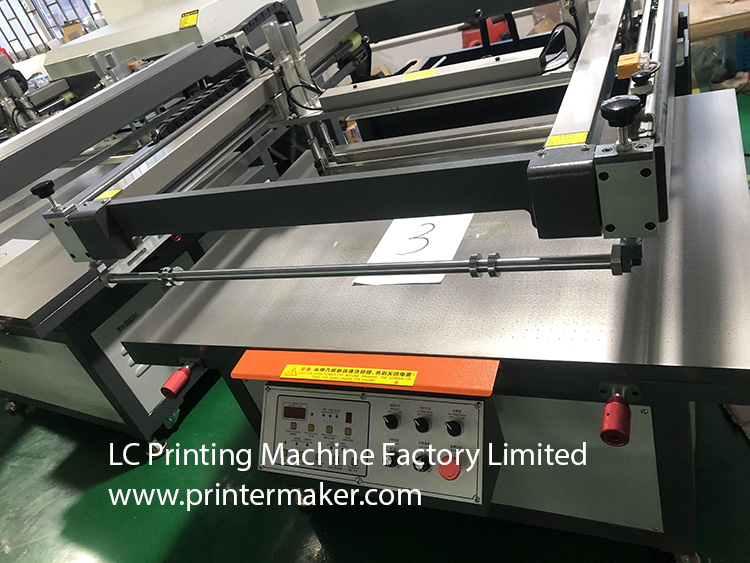

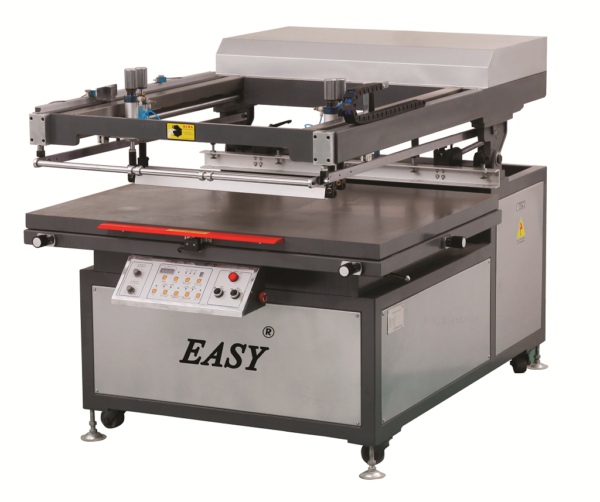

Tilted-arm Vacuum Table Screen Printer

  • PRODUCT DETAIL
  • Video

Product name:Tilted-arm Vacuum Table Screen Printer

Model Number: S-JY90120

Description:
Tilted-arm Vacuum Table Screen Printer
1. Working Table Size:1000*1300MM
2.Max printing area:900X1200MM;
3. Max. Screen Size:1200*1500
4. Min.Screen size: 650*700mm
6. Frame Lift Height: 300mm

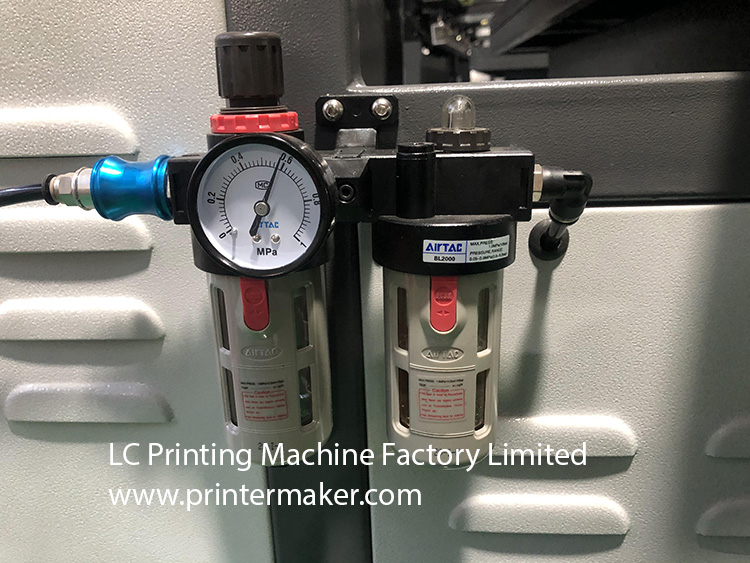

7. Operation Air Pressure: 0.3 Mpa.--0.5Mpa.
8. Air consumptions(0.6 mpa): 13/pcs
9. Max.Product thickness:0-20 MM;0-50mm
10. Power rate: 2.3KW
11. Voltage: 220V/50HZ, single phrase
12. Table Height: 820mm
13. Max. printing speed. 500-1200pcs/Hour
14. Machine dimension:1800*1400*1300mm

15. Machine weight: 550Kg
