LC Printing Machine Factory Limited

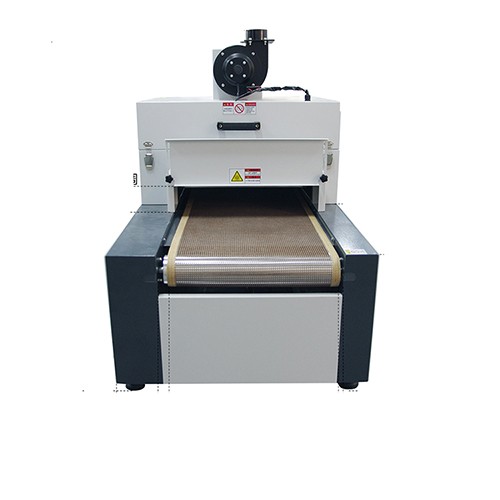

Tabletop UV Curing Unit

  • Model Number: M-380UV
  • Category: UV Curing Machine
  • Views: 511
  • Product Description:Tabletop UV Curing Unit
  • PRODUCT DETAIL
  • Video

Product name:Tabletop UV Curing Unit

Model Number: M-380UV

Tabletop UV Curing Unit
USD1300(1*2KW lamp)&1500USD (2*2KW lamp)
1.Max Drying products size:380mm*1150mm(W*L)
2.Conveyor Size: 380*1150mm(1 lamp*2KW);
380*1250(2 Lamps*2KW)
Lamp Size: 400MM, 2KW
3.Total wattage:2.15KW ;
4.Wind fan wattage:150W/220V
5.Conveyor motor wattage:4×25W/1P/220V
6.Conveyor speed:0~25m/min

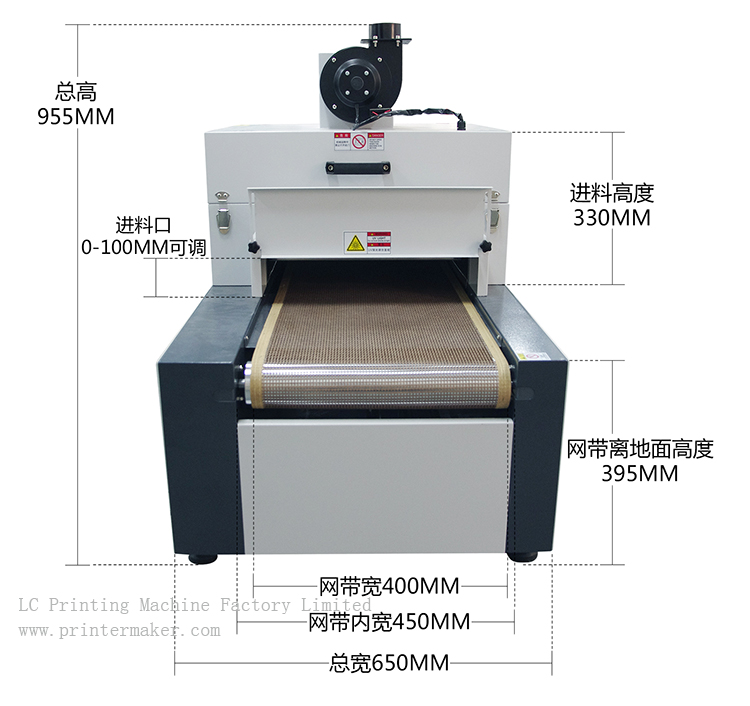

7.Dimension:1250×550×660mm(l×w×h)
8.Gross Weight:230KG
9.Lamp wattage:1*2KW/220V(2*2KW optional).
10.Max height of products: 90mm.
11:Packing size: 1230*680*850MM (1*2KW lamp)
1430*700*930mm (2 Lamps*2KW)
Advantages:
1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
5. Tabletop working and save room area
Description:
Drying for variety of UV screen printing, UV pad printing, spraying UV ink processing, such as UV varnish, frosted, wrinkle, brilliant, refraction, enclosure spraying, single/double-sided green oil.

This machine is maining for fast drying the UV ink , UV vanish by screen printing and pad printing, it is also used for all those UV related chemical materi

Tabletop UV Curing UnitTabletop UV Curing UnitTabletop UV Curing Unit
