LC Printing Machine Factory Limited

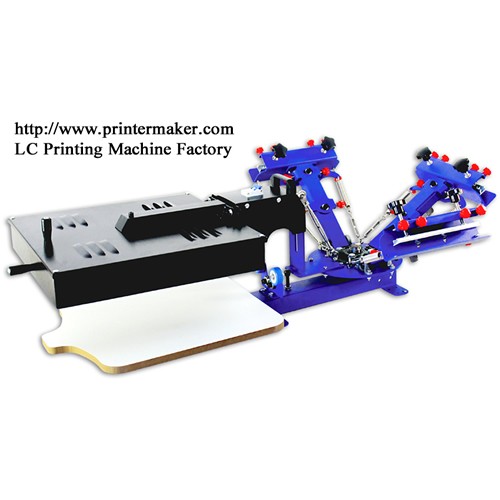

Table Type 3 Color 1 Station Screen Press with Dryer

  • Model Number: NRSP-301IRT
  • Category: Screen Printing Press
  • Views: 293
  • Product Description:Table Type 3 Color 1 Station Screen Press with Dryer
  • PRODUCT DETAIL

Product name:Table Type 3 Color 1 Station Screen Press with Dryer

Model Number: NRSP-301IRT

Description:
Table Type 3 Color 1 Station Screen Press with Dryer
New Design 3 Color 1 Station Flash Dryer Screen Press is  newly R&D by our company, it is 3 color over printable and there  is  a infrared flash dryer between the arms, it will be very convenient for you to print and dry out. The flash dryer & screen frame can both rotate in 180 degree, you don't need an extra flash dryer. saving money and improve work efficiency! This is  really a good news for screen printing industry!
New Function Description:
Comparing with previous 3 color 1 station printer, this new type machine has a function of micro-adjust. If you want to do color matching, you can use those small red handles to move the screen frame right or left slightly.  It will be a good choice for colorful printing.
* Height of the flash dryer  could be adjusted.
Parameters

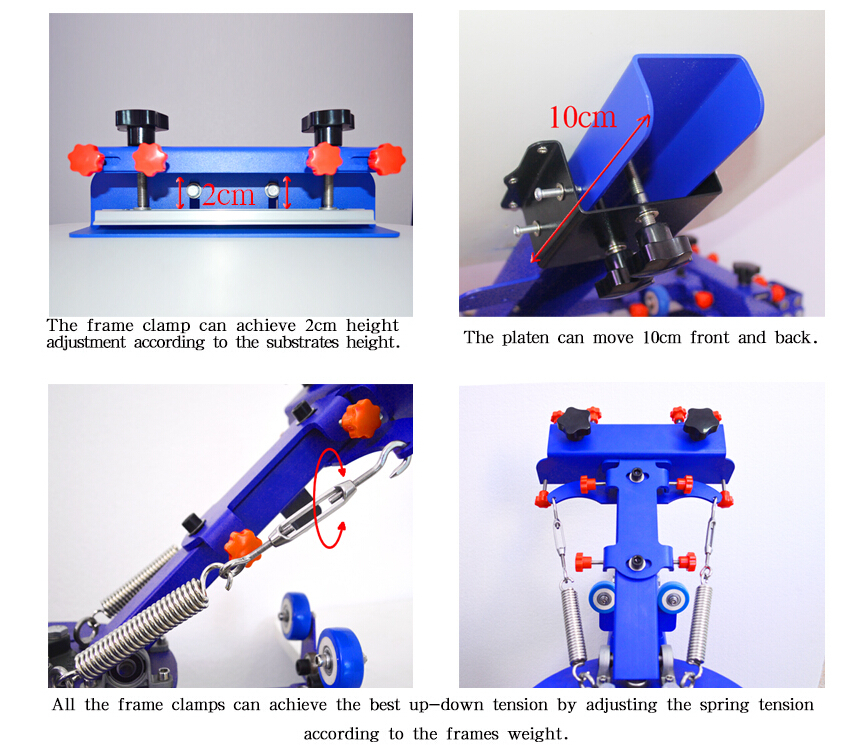

Height adjustable range for the screen frame clamp: 0.8" / 2cm.
Height adjustable range of the  dryer head: 5.5"/14cm.

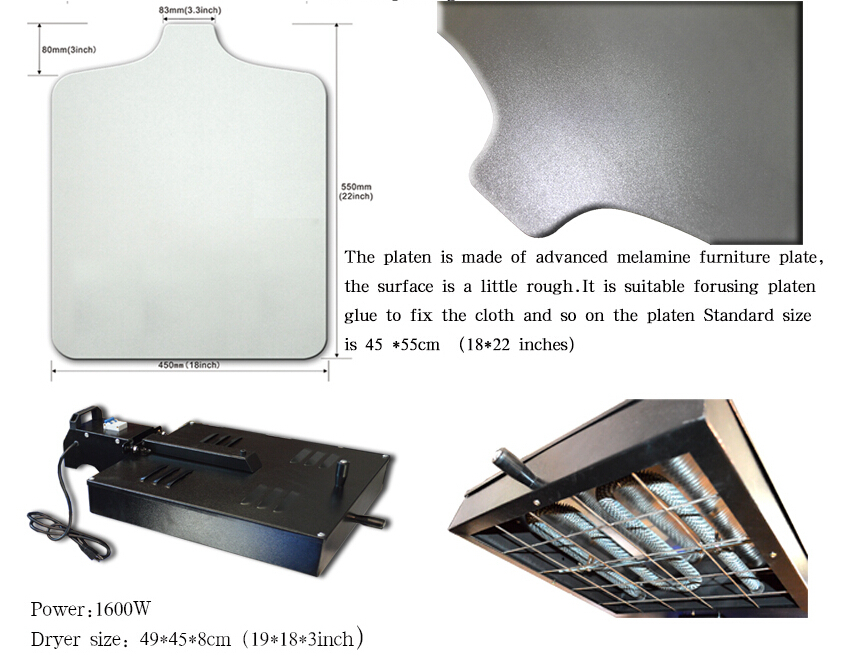

Platen  size:  21.7*17.7" (55*45cm)
Drying  Area:  15.7*15.7" (40*40cm)
Machine size:130*91*37cm(50*35*14inch)
Net weight:35.7kg /79lb
This machines is packed in 2 cartons:
1# 34x20x10inch (86*50*25cm) 33KG(73lb)
2# 30x20x9 inch (77*50*24cm) 12KG(26lb)
Gross weight:45kg (99lb)
Applications:
They can print onto clothing (especially for T-shirt), woven fabric, metal, paper, copybook, plastic, circuit board, wood, glass, ceramic tile, leather and other plane printing substrates, which is especially suitable for small businesses and individual printing shop.
Table Type and Combinatorial Design Saves Place and Convenient for Transportation.
The frame & flash dryer can aotate arbitrarily in 180 Degree

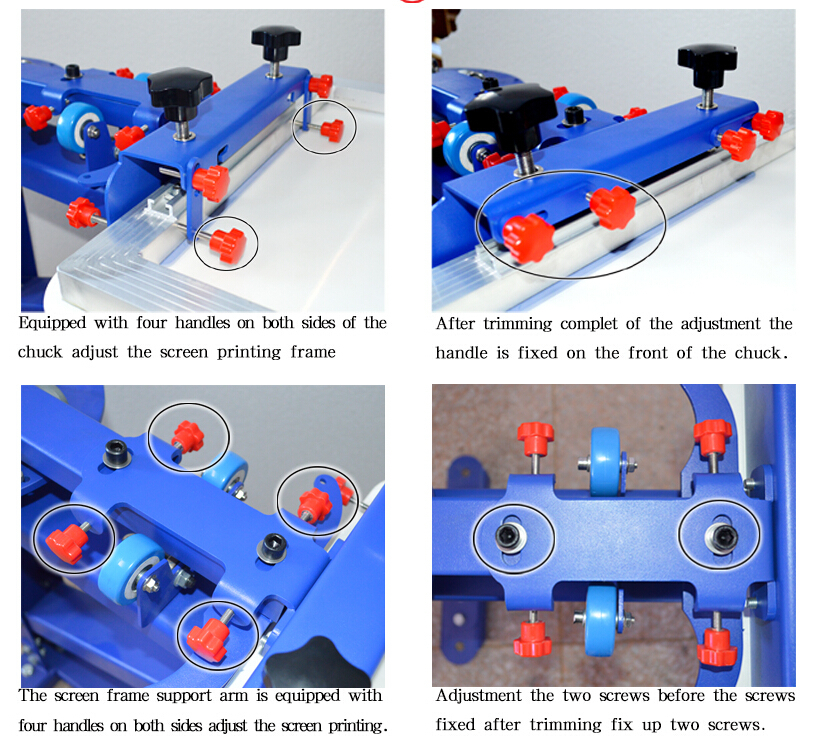

Equipped with Four Handles on Both Sides of the Chuck Adjust the Screen Printing Frame

Table Type 3 Color 1 Station Screen Press with DryerTable Type 3 Color 1 Station Screen Press with DryerTable Type 3 Color 1 Station Screen Press with DryerTable Type 3 Color 1 Station Screen Press with DryerTable Type 3 Color 1 Station Screen Press with Dryer
