LC Printing Machine Factory Limited

Six Color Pad Printer With Conveyor

  • PRODUCT DETAIL

Product name:Six Color Pad Printer With Conveyor

Model Number: M6-C

Specifications︰
M6/C (18 working station)
1.Max. plate size: 100×200 mm;
2.Max. worktable area: 90×125mm;
3.Max. printing area: 85×130mm;
4.Max. printing speed: 800pcs/hr;
5.Colour number: 6;
6.Air consumption: 330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke: 125mm;
9. Station number: 18
10. Machine Dimention:1220x1220x1500mm
11. N Weight: 270KG, G Weight: 350kg

Advantages︰
1.Total micro computer controlled operation;
2.Auto four digit counter built-in;
3.ink covering by ink roller ;
4.Fully Coin aluminium structure which is sturdy;
5.Independent pad stroke and speed control;
5.Printing speed adjustable to meet with different needs;
6."Inking twice, printing once" to get better ink covering;
7. SMC Cylinder& FESTO Pneumactic Parts

Machine Fittings︰
1. Six 4"*6" plates,
2. Six pads
3. Two blades
4. A tool box.

Ship Date︰
By sea:
within 30 days after receive T/T OR LC.

Testing︰
Please provide:
1. 110V or 220V power supply.
2. 5-7 bar compress air.
3. Etching plate 6 pcs.
4. Fixture 18 pcs;
5. 50-100 pcs product samples.
6. Pad and thinner.

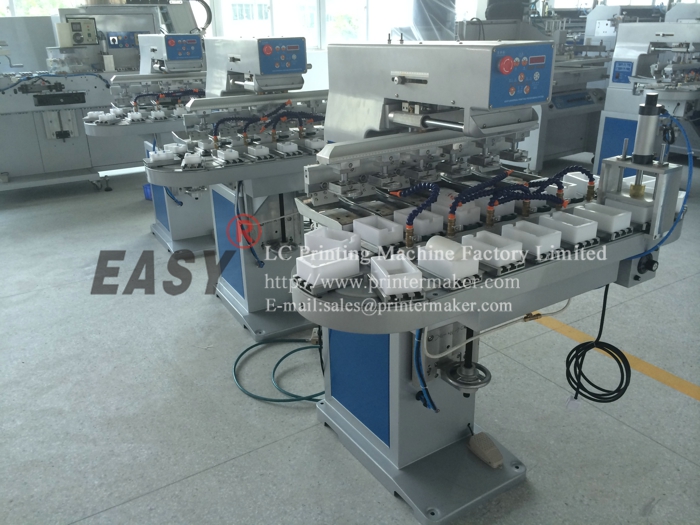

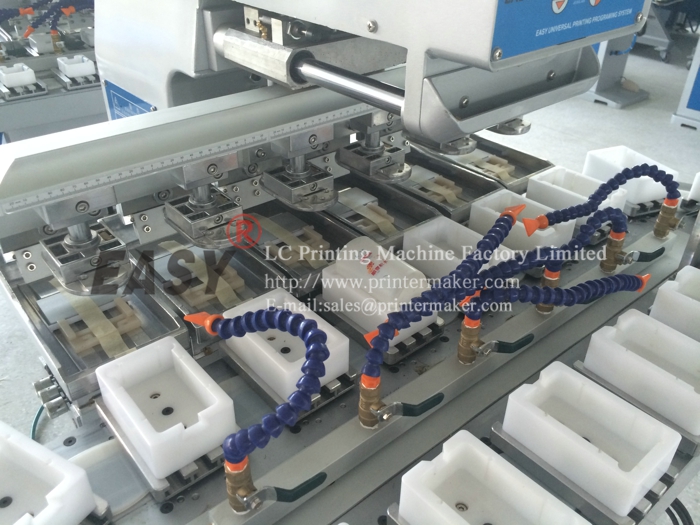

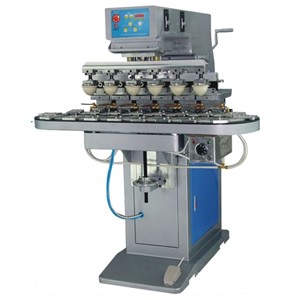

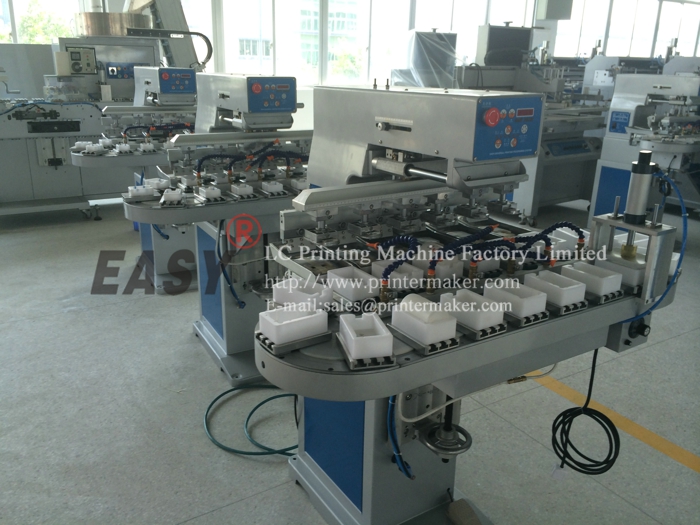

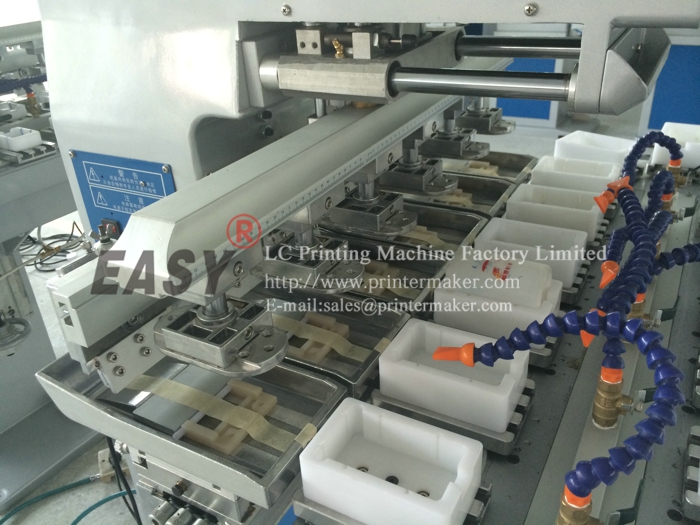

Six Color Pad Printer With Conveyor

Six Color Pad Printer With ConveyorSix Color Pad Printer With ConveyorSix Color Pad Printer With ConveyorSix Color Pad Printer With Conveyor

6-Color Pad Printing Machine with Carousel

6-Color Pad Printing Machine with Carousel
