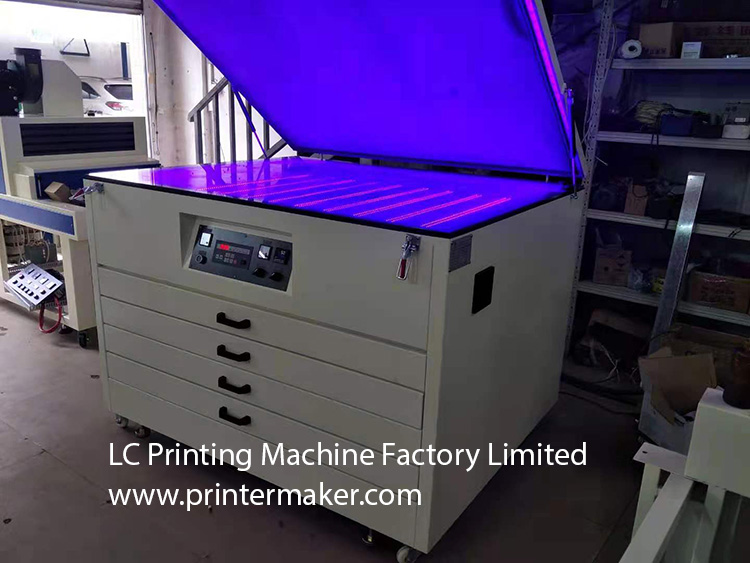

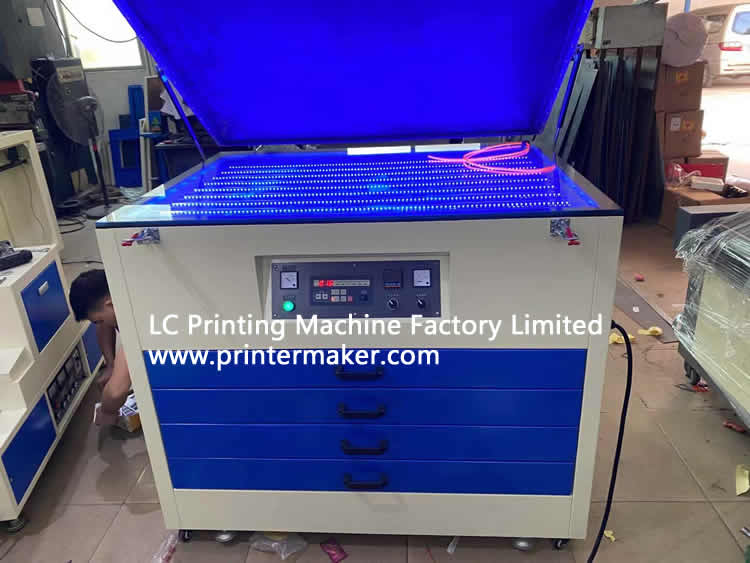

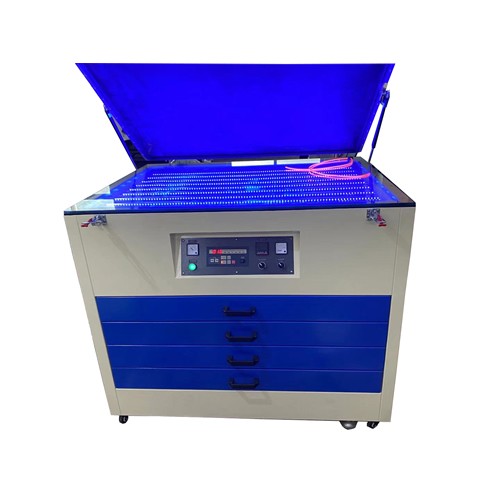

Product name:Silkscreen LED Exposure Machine & Drying Closet
Model Number: LED120150Model Number: LED120150
1.Glass Dimension: 1200×1300mm;
2.Glass thickness: 10mm.
3. LED Lamp Wattage: 10 pcs LED lamp with 20 lines; Every 12CM with one LED lamp
Each lamp is at 30W
4.Vacuum degree: 0.05mpa.
5.LED Lamp Wattage: 30w/cm, total with 10pcs of LED lamp
6. Exposure Temperature: around 40 degree
7. Gross Weight:120KG.
8.Outer dimension: 1250×1570×1100mm;
9.Max Frame Dimension: 1000×1300mm;
10. Max Exposure Area: 1000×1300mm.
11. 4 Layers silkscreen frame drying oven
12. LED lamp lifespan: 3 years.
1. Choose a high quality LED lamp. keep long life of 3 years.
2. Much lower exposure temperature at less than 40 centi-degree
3. With much better exposure quality on the silkscreen frame, which will better protect the film
4. Exposal time auto adjustment and controlling.
5. High vacuum degree, easy to transfer and copy fine lines ；
6. Automatic door of LED lamp shut off and turn on when exposure and finish ensuring long life of the LED lamp;
7. High toughness Rubber Layer ensure Film closely cover with frame.

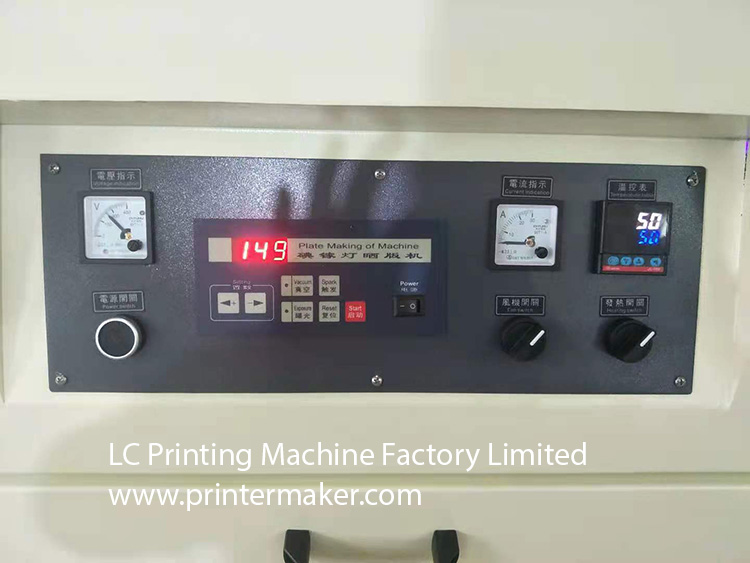

1)Straight-light’s sophisticated digital touchscreen controller automates screen exposures. All the operator needs to do is select the appropriate exposure preset and press START. The entire process, including vacuum, exposure, and shutdown, takes place without further operator involvement. allows the operator to walk away after initiating the process because we ensure that exposures will not begin until proper vacuum has been reached—and vacuum and exposure LEDs will shut off automatically upon completion of exposure. Vacuum and exposure times can be set between 0.1 and 999.9 seconds. And our Job Recall speeds processing and increases productivity by enabling operators to save and recall up to 24 vacuum and exposure profiles—and identify each with a unique name or description.
2)Quickly expose direct, capillary, and indirect emulsions. They work particularly fast on photopolymer emulsions, which can be exposed in as little as three to five seconds (results will vary based on emulsion type and thickness). LED screen exposure units can be located in areas housing unexposed screens because the ultraviolet light source and vacuum frame are enclosed, and the screen exposure lamp can't be turned on while the blanket frame is open. also incorporate several strips of yellow, non-exposing LED inspection lights for convenient setup.
If you're looking for blazingly fast quality exposures at an unbelievably affordable price, you'll find it all in here!
3)LED UV Exposure Machine can exposure to high density mesh quickly.
Exposure 220T density mesh with several seconds is no problem.
We can make any size LEDUV Exposure Unit for you!
