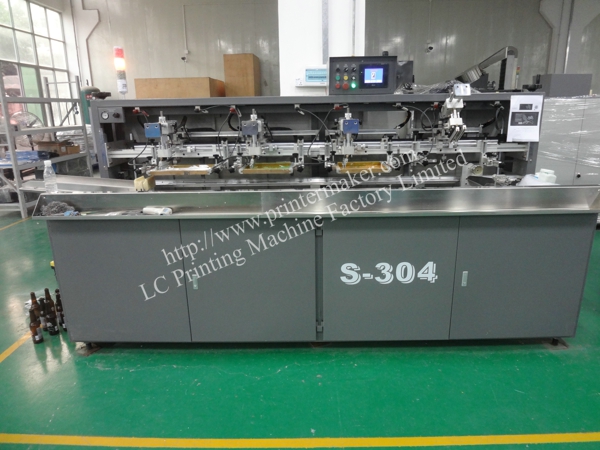

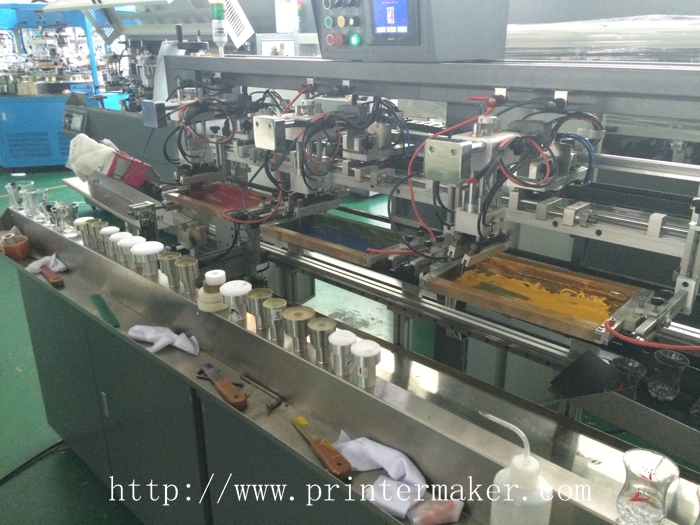

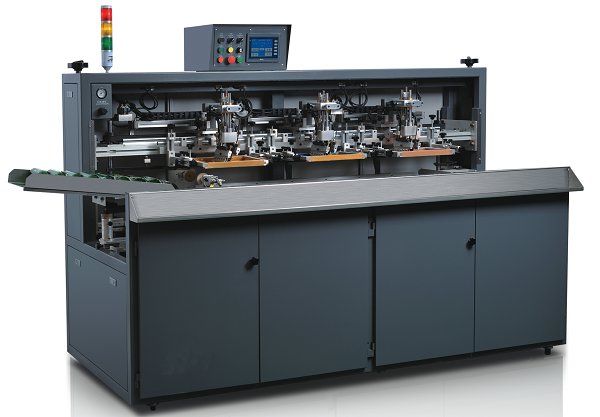

Shot GLass Automatic Silk Screen Printing Machine

Shot GLass Automatic Silk Screen Printing Machine
Specifications:
1. Product Outlook: ink Cylindrical
2. Printing Size: Max Dia.80mm
3. Printing Length: Max. Length:300mm
4. Printing Colors:1-4 Colors
5. Maximum Frame Size: 600*320mm
6. Working Capactiy: 900pcs/hour
7. Frame Heating Power rate: 2.2KW
8. Power Supply: 220V 1-phase 50Hz
9. Air Compressor: 5-7 Bar
10: Total Power Rate: 2.8KW
11: Machine Dimension:2300×1000×1700mm
12.4 Color Machine Packing Size:325*127*186CM
13.Net weight :1100KG(4 Color)
14.Gross weight:1247KG(4 Color)

Printing Video:
