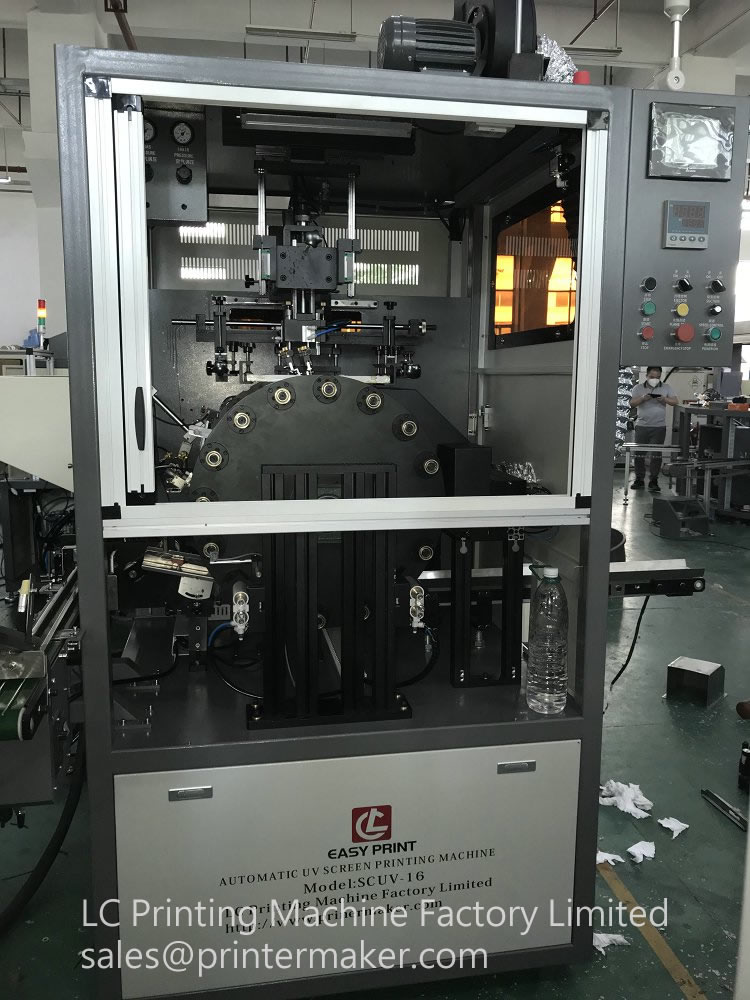

Automatic UV Silk Screen Printing Machine with Optical Registration System model SCUV-16C

Automatic UV Silk Screen Printing Machine with Optical Registration System model SCUV-16C

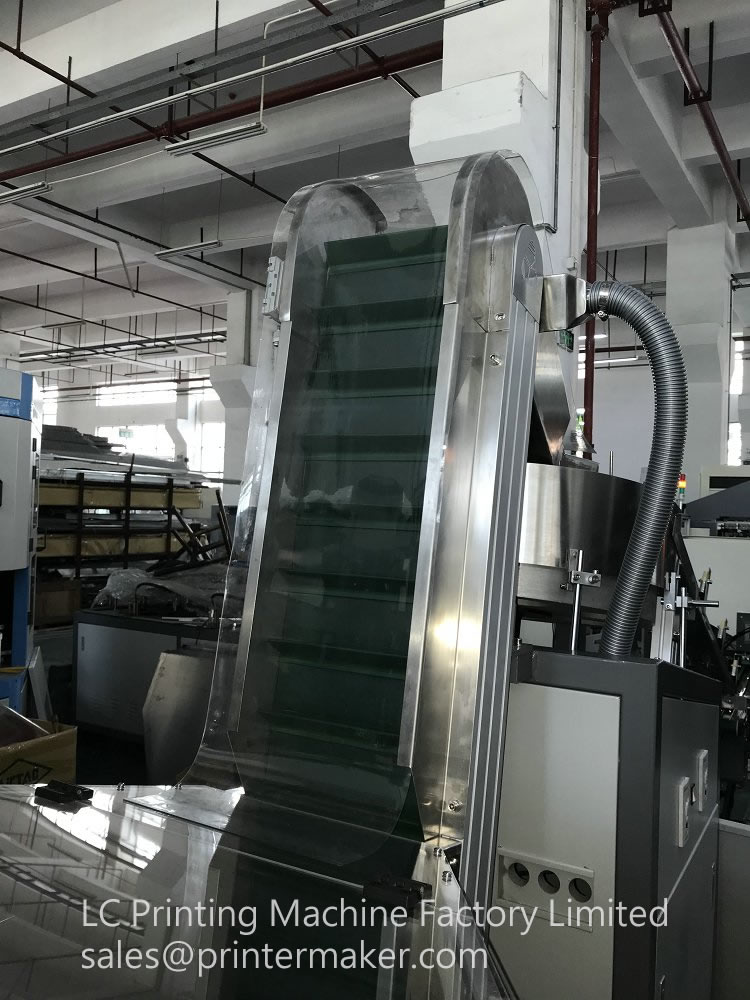

This machine is designed for both caps and bottles silk screen printing machine, it is attached automatic feeding system, flame treatment, screen printing, UV curing and offloading system.

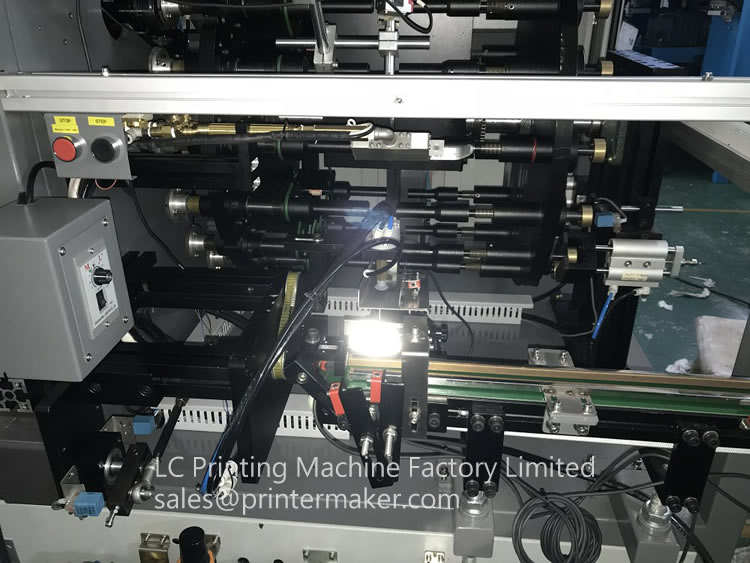

The optional sensor is allowing you to print second color by optical registration. The tolerance is at 20C.
Parameter:

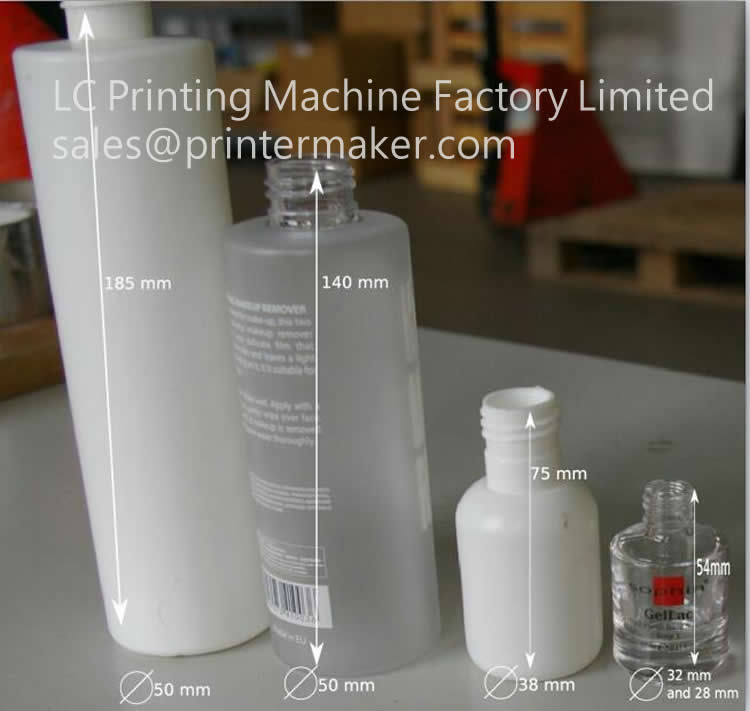

1: Max.Print Size: Dia20-45MM;Height:25*70MM
2: Speed: 55-60pcs per minute
3: UV curing rate: 5KW (LED curing system optional)
4: Machine N/G Weight:1600kg/1800kg
5: Air Pressure: 5-7 Bar
6: Power Rate: 380V/3P 50/60HZ 13KW
7: Machine Dimension:2150mm*1480mm*2700mm (L*W*H)
Advantages︰

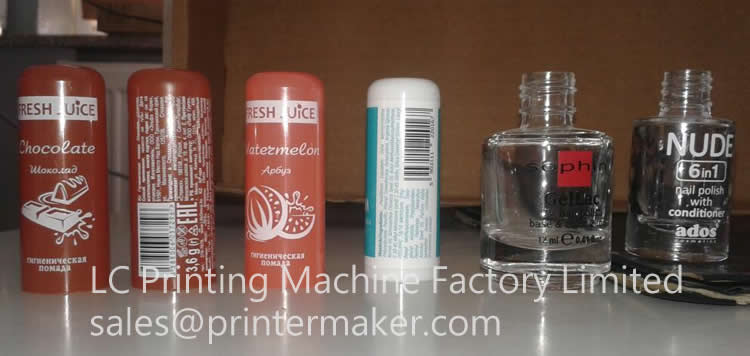

1 Automatic screen printer fitting on small bottles and caps sidewall printing
2 High efficiency, Auto Feeding, Flame Treatment , Auto Loading and Screen printing as well as UV drying all in one function.
3 Online Flame Treatment.
4 Reliable PLC control & touch screen operation system.
5 Closed working system, well safety protection:
6 Promise of quality with SMC, FESTO pneumatic parts and Omron, Siemens Electric parts.
7 High quality aluminium alloy ensure light and ruggedization
