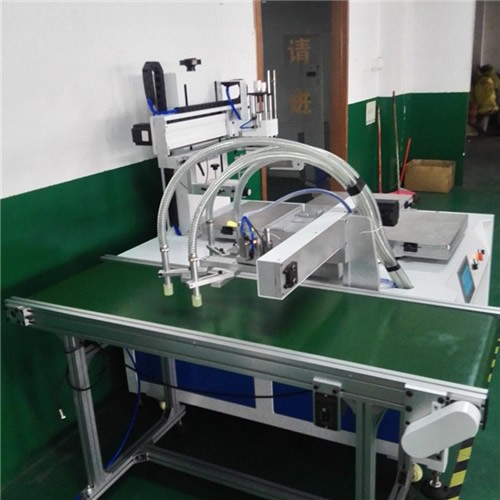

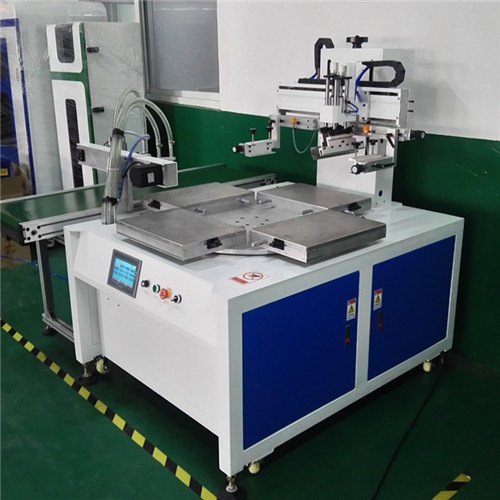

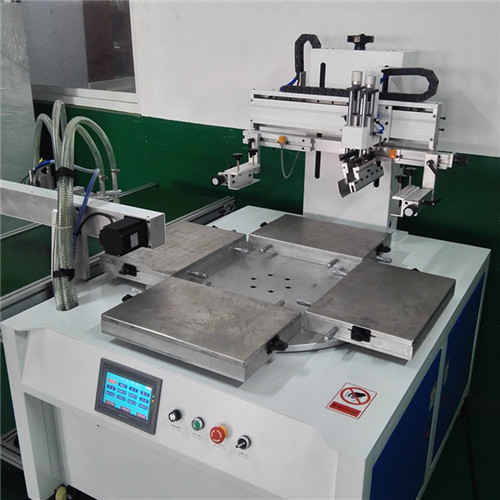

Shoe Upper Automatic Rotary Screen Printing Machine

  • Shoe Upper Automatic Rotary Screen Printing Machine
  • Shoe Upper Automatic Rotary Screen Printing Machine
  • Shoe Upper Automatic Rotary Screen Printing Machine
  • Shoe Upper Automatic Rotary Screen Printing Machine
  • Model Number: SPN-2540
  • Product price: US$:negotiated
  • Category: Flat Bed Screen Printing Machine
  • Views: 5349
  • Product Description:Shoe Upper Automatic Rotary Screen Printing Machine
  • PRODUCT DETAIL
  • Video

Product name:Shoe Upper Automatic Rotary Screen Printing Machine

Model Number: SPN-2540

Description:
automatic rotary screen printing machine'>Shoe Upper Automatic Rotary Screen Printing Machine
Technical Parameter
Model No.SPN-2540
Printing Color:One color
Single Cycle:can adjust
printing speed:1200time/hour
Max frame size:500mmX700mm
max print size:250mmX400mm
Working table size:300mmX450mm
Rotary table diameter:¢845mm
Mechanical stroke:500mm
Maximum height of work piece:80mm
Frame up and down stroke:120mm
Scrapers left and right stroke:350mm
.Blade scraping up and down stroke:40mm

Material extraction method:Vacuum adsorption or finger grip

Drive up and down:Cylinder driving
Control system:PLC
Control voltage:DC24V
Supply:AC220V  50/60Hz
Connect the load:3.5KW
Working Air Pressure:0.4-0.6Mpa
Air Consumption/Cycle:3.0L
Machine size:1160mm(L)X1450mm(W)X1600mm(H)
Weight:560 KG
Horizontal adjustment of table:±6mm
Warranty:One year
Product introduction
Shoe Upper Automatic Rotary Screen Printing Machine is mainly used for printing:Phone touch screen,light panel OGS/TP/CG/LTD glass,PCB,LCD,Liquid green oil, cold light film, film, keyboard, acrylic, cell phone panel, touch panel, light guide plate, diffuser, nameplate, ceramics, stationery, and small film/Precision screen printing products, such as flexible circuits (FPC), in-mold decoration (IMD), membrane keys(Membrane Switch),Bio-test piece... Such products precision print screen printing
Machine operation safety performance
Shoe Upper Automatic Rotary Screen Printing Machine is in line with the latest engineering style,It is required by the use of absolute trustworthy. Machine is equipped with emergency switch: press the emergency switch in case of emergency,then machine will be powered off immediately.Back to the starting position, when get out of trouble after the emergency switch, you can start safely back to normal.
Accessories
1.Screen frame with mesh x 1 piece
2.Squeegee x 1 piece
3.Tooling box x 1 piece

4.English manual x1 piece

Shoe Upper Automatic Rotary Screen Printing MachineShoe Upper Automatic Rotary Screen Printing Machine

Shoe Upper Automatic Rotary Screen Printing Machine
